Yamaha Outboard Parts - Generator - VX250CETOLXLX (2001) | Flood Marine

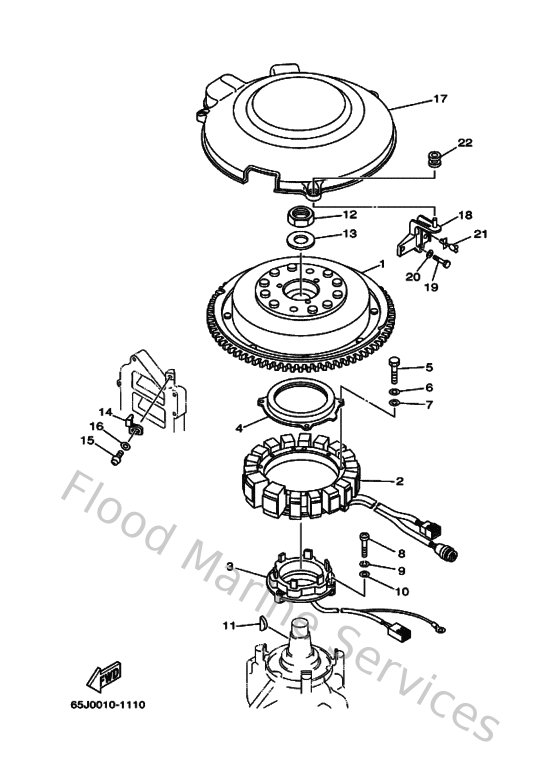

Diagram: Generator

Diagram

Parts List

Reference
Description
Price


1
61A855500100
Rotor assembly
Loading…

↗
2
65L855101000
Stator assembly
Loading…

↗
3
61A855800100
Coil, pulser
Loading…

↗
4
61A837210000
Cover
Loading…

↗
5
970130603500
Bolt(3rv)
Loading…

↗
6
929030610000
Washer(6a1)
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
8
978850503000
Ybs86-530 screw,panhead
Loading…

↗
9
929950510000
Ybs67-5 washer, spring
Loading…

↗
10
929950560000
Washer, plain (646)
Loading…

↗
11
902800504900
Key, woodruff (12r)
Loading…

↗
12
9017024M2200
Nut(61a)
Loading…

↗
13
9020125M0200
Washer, plate(61a)
Loading…

↗
14
6E5813320000
Plate, timing
Loading…

↗
15
978850601000
Screw pan head
Loading…

↗
17
61A813370100
Cover, flywheel
Loading…

↗
18
65L81338001S
Clamp, Lead
Loading…

↗
19
970130602500
Bolt(62y)
Loading…

↗
20
929030660000
Washer, plain (646)
Loading…

↗
21
9046418M4600
Clamp(65j)
Loading…

↗
22
663823170100
Damper, ignition coil
Loading…

↗
