150AETOL (1998)
Generatrice

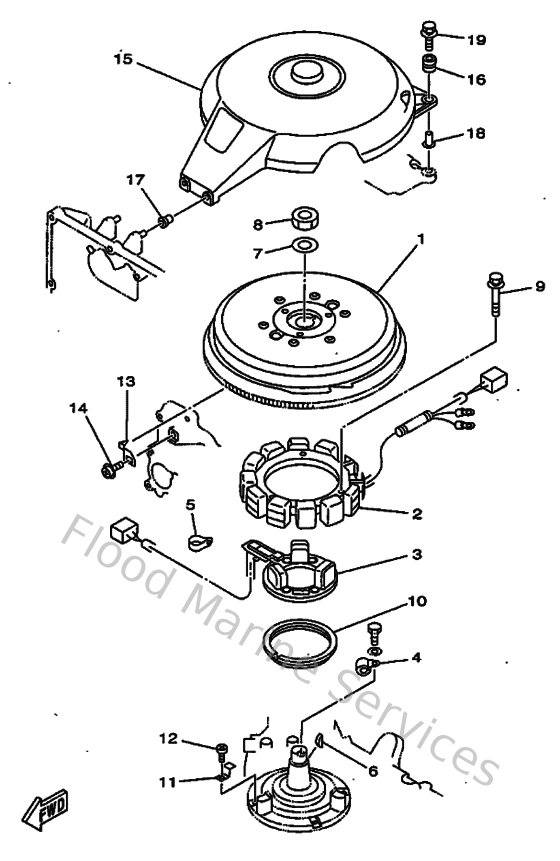

Diagram: Generatrice
Parts List
Reference
Description
Price
1
6G6855500200
Rotor assembly
Loading…
↗
2
6G6855100000
Stator assembly
Loading…
↗
3
6G6855800000
Coil, pulser
Loading…
↗
4
904650802800
Clamp (1e6)
Loading…
↗
6
902800501500
Key, woodruff
Loading…
↗
7
9020121M1800
Washer, plate (663)
Loading…
↗
8
901702013700
Nut, hexagon(663)
Loading…
↗
9
975130656000
Bolt, with washer(6g4)
Loading…
↗
10
688416110000
Retainer, magneto base 1
Loading…
↗
11
688416120000
Retainer, magneto base 2
Loading…
↗
12
978800601800
Screw, pan head(6e5)
Loading…
↗
13
6E5813320000
Plate, timing
Loading…
↗
14
979850621000
Screw pan head
Loading…
↗
15
6G5813370000
Cover, flywheel
Loading…
↗
16
6G5823170000
Damper
Loading…
↗
17
6A0823170000
Damper, ignition coil
Loading…
↗
18
624425420000
Collar
Loading…
↗
19
9011906M5900
Bolt, with washer
Loading…
↗
