25DMH (1997)
Generatrice

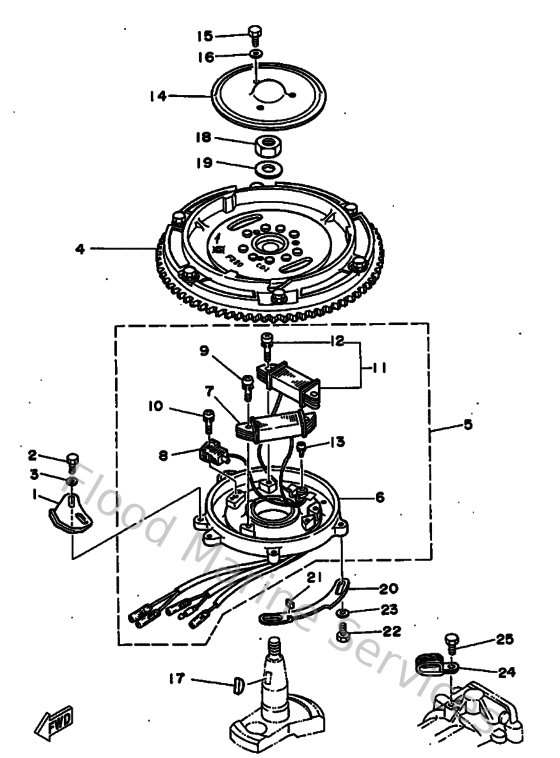

Diagram: Generatrice
Parts List
Reference
Description
Price
1
695412130094
Cam, Accel
Loading…
↗
2
970950501200
Bolt, hexagon
Loading…
↗
3
929950560000
Washer, plain (646)
Loading…
↗
7
695855207000
Charge coil assembly
Loading…
↗
8
695855807000
Coil, Pulser
Loading…
↗
9
901590503900
Screw panhead (695)
Loading…
↗
10
985070501600
Screw, pan head(jj6)
Loading…
↗
11
69581303A000
Lighting Coil Assembly
Loading…
↗
12
901590504000
Screw, pan head(4my)
Loading…
↗
14
648813620000
Cover Hole
Loading…
↗
15
973950601200
Bolt(gh1)
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
902800501300
Key, woodruff
Loading…
↗
18
9017912M0400
Nut, flange
Loading…
↗
19
9020113M4200
Washer (694)
Loading…
↗
20
695416150000
Stopper, Magneto Base
Loading…
↗
21
695441940000
Cap
Loading…
↗
22
970130601200
Bolt(gh1)
Loading…
↗
23
929030660000
Washer, plain (646)
Loading…
↗
24
9046106M0100
Clamp (6a4)
Loading…
↗
25
973950601000
Bolt
Loading…
↗
