75AE (1998)
Generatrice

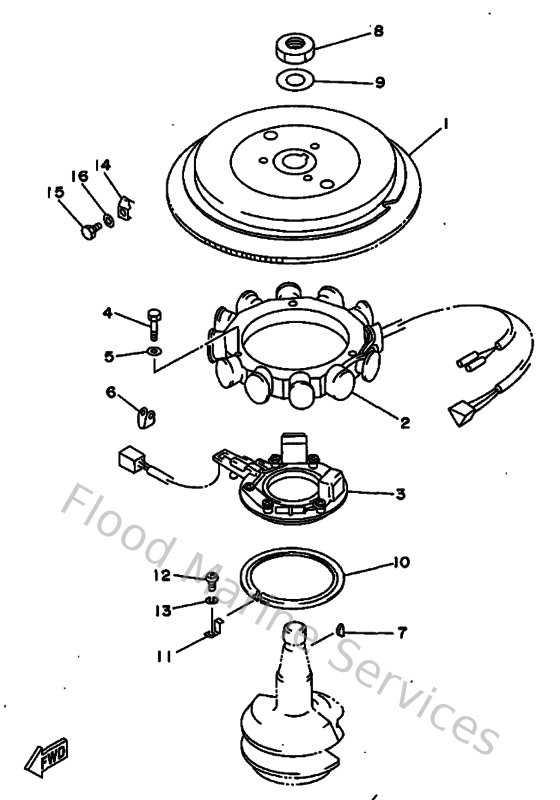

Diagram: Generatrice
Parts List
Reference
Description
Price
1
688855500000
Rotor assembly
Loading…
↗
2
688855100000
Stator assembly
Loading…
↗
3
688855800000
Coil, pulser
Loading…
↗
4
970800603000
Bolt(jf7)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
7
902800504900
Key, woodruff (12r)
Loading…
↗
8
901702013700
Nut, hexagon(663)
Loading…
↗
9
9020121M1800
Washer, plate (663)
Loading…
↗
10
688416110000
Retainer, magneto base 1
Loading…
↗
11
688416120000
Retainer, magneto base 2
Loading…
↗
12
985800601200
Screw, pan head(62j)
Loading…
↗
13
929950610000
Washer(6a1)
Loading…
↗
14
688813320100
Plate, timing
Loading…
↗
15
970950601000
Bolt
Loading…
↗
