Helm Master Joystick Controller System (2013)
HARNESS (TRIPLE)

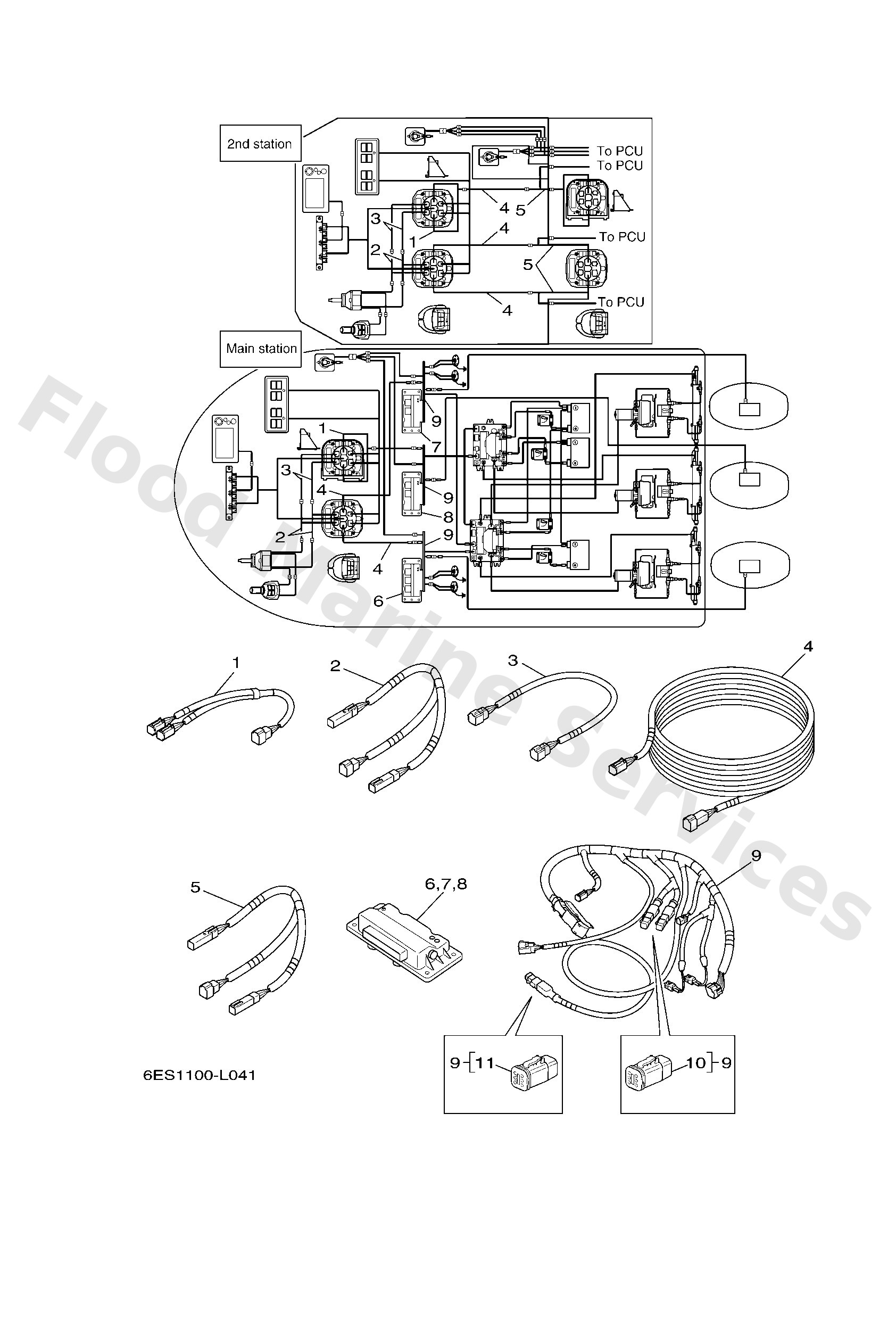

Diagram: HARNESS (TRIPLE)
Parts List
Reference
Description
Price
1
6ES8259020
Center Hcu Harness
Loading…
↗
2
6ES8259000
Helm "T" Harness (Triple)
Loading…
↗
3
6ES82590A0
Helm Adapter Harness (Triple)
Loading…
↗
4
6ES8259010
36Ft Rc - Pcu Harness
Loading…
↗
5
6ES8258A80
T harness, 2nd station
Loading…
↗
6
6ES8559030
ASK TO MARINE DIV
Pcu for triple, port side
Loading…
↗
7
6ES8559040
ASK TO MARINE DIV
Pcu for triple, stbd side
Loading…
↗
8
6ES8559050
ASK TO MARINE DIV
Pcu (Triple/Center)
Loading…
↗
9
6ES8258A00
Pcu Harness
Loading…
↗
10
6ES8258200
Cap 1
Loading…
↗
11
6ES8258500
Cap 2
Loading…
↗
