Rigging - Meter (2025)
HELM UNIT

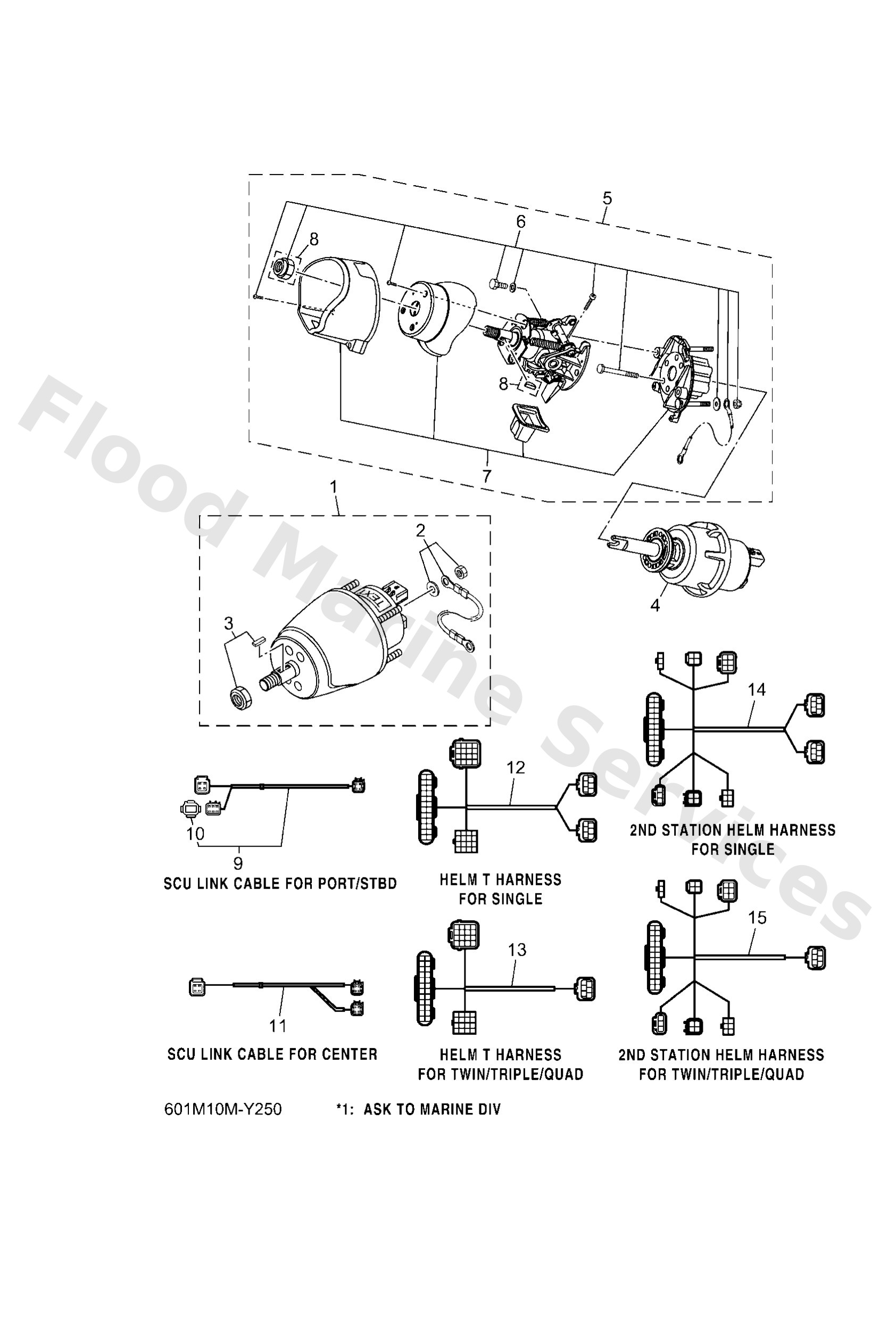

Diagram: HELM UNIT
Parts List
Reference
Description
Price
1
6X9615A010
Compact helm kit
Loading…
↗
2
6X94240900
-
Loading…
↗
3
6X94240A00
-
Loading…
↗
4
6GR615A010
ASK TO MARINE DIV
Helm unit assembly tilt (2)
Loading…
↗
5
6GR6154A01
ASK TO MARINE DIV
Tilt Helm Unit (1)
Loading…
↗
6
6GR4240201
-
Loading…
↗
7
6GR4240300
-
Loading…
↗
9
6GR8111510
UR *1 PORT/STBD ENGINE
Scu link harness p/s 10ft
Loading…
↗
9
6GR8111500
UR *1 PORT/STBD ENGINE
Scu link harness p/s 5ft
Loading…
↗
9
6X98111500
UR *1 PORT/STBD ENGINE
Scu link harness 0.3m-1ft p/s
Loading…
↗
10
6Y88537101
End of line resister
Loading…
↗
11
6X98111510
UR *1 CENTER ENGINE
Scu link harness 0.3m-1ft (c)
Loading…
↗
11
6GR8111520
UR *1 CENTER ENGINE
Scu link harness center 5ft
Loading…
↗
11
6GR8111530
UR *1 CENTER ENGINE
Scu link harness center 10ft
Loading…
↗
12
6GR8258A01
UR *1 SINGLE ENGINE (MAIN ST)
Helm harness (main/single 0.9m
Loading…
↗
12
6GR8258A41
UR *1 SINGLE ENGINE (MAIN ST)
Helm harness (main/single)1.8m
Loading…
↗
13
6GR8258A11
Helm harness multi engines 0.9
Loading…
↗
13
6GR8258A51
Helm harness multi engines 1.8
Loading…
↗
14
6GR8258A21
*1 SINGLE ENGINE
Helm harness 0.9m-3ft
Loading…
↗
15
6GR8258A31
*1 MULTIPLE ENGINE
Helm harness 0.9m-3ft
Loading…
↗
