ME750TIHL (2005)
INPUT SHAFT (MGNV123-6)

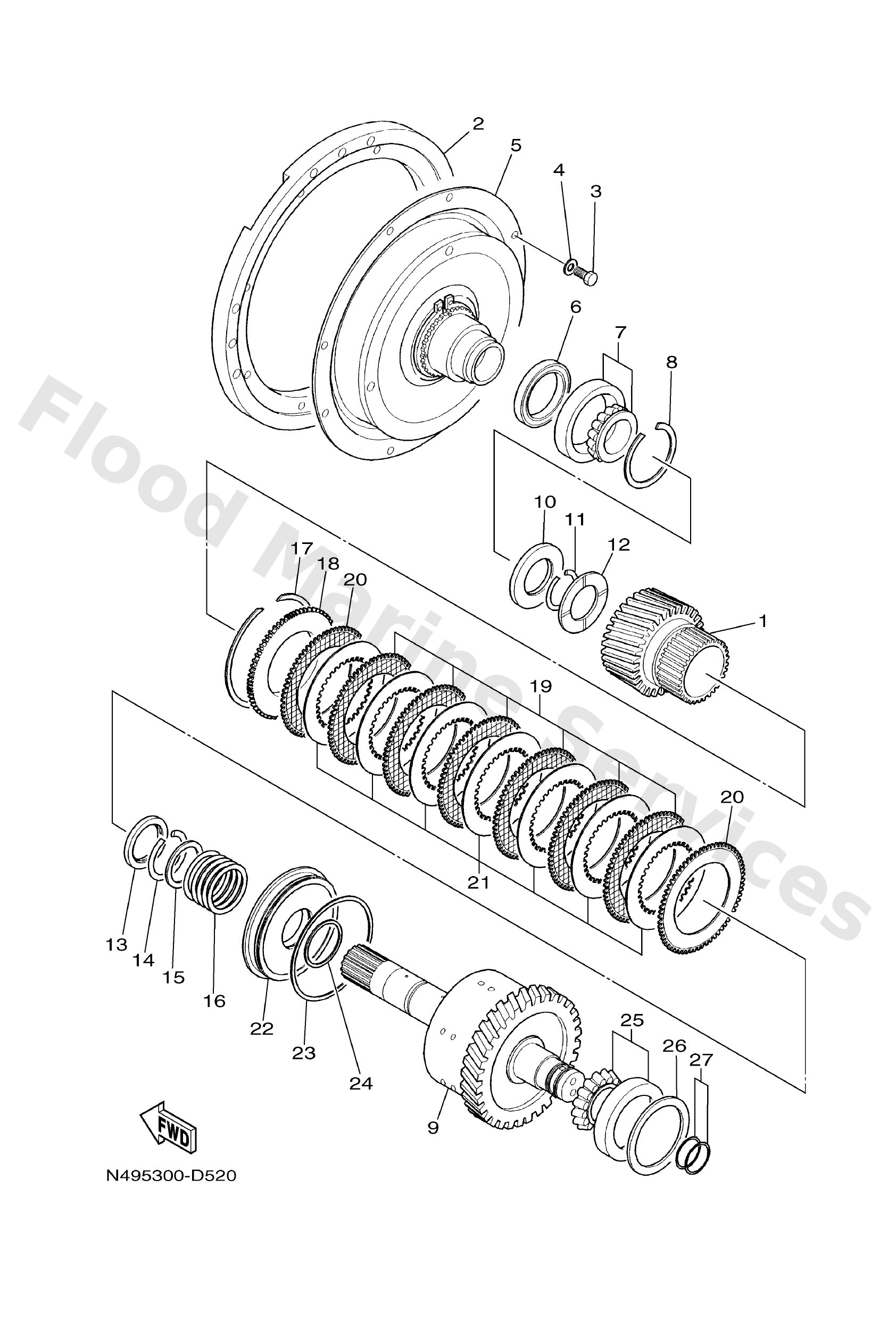

Diagram: INPUT SHAFT (MGNV123-6)
Parts List
Reference
Description
Price
1
N4917830C0
UR R=2.46
Drive Gear assembly (26T)
Loading…
↗
1
N4917830D0
UR R=2.03
Drive Gear assembly (38T)
Loading…
↗
1
N4917830E0
UR R=1.53
Drive Gear assembly (45T)
Loading…
↗
1
N4917830B0
UR R=2.96
Drive Gear assembly (23T)
Loading…
↗
2
N4911445B0
Spacer
Loading…
↗
3
N4914496B0
52-
Loading…
↗
4
9020110123
Washer, plain 2562171501
Loading…
↗
5
N4916306B1
Damper assembly
Loading…
↗
6
N4914005B0
Ring, Seal
Loading…
↗
7
N1517166N0
Brg 2
Loading…
↗
8
9342100050
Circlip
Loading…
↗
9
N4945510B0
Drive Shaft assembly
Loading…
↗
10
N4917429B0
Spacer, Drive Axle
Loading…
↗
11
N4917282B0
Ring, Round Section
Loading…
↗
12
N4916648B0
Washer
Loading…
↗
13
N4917645B0
Collar
Loading…
↗
14
N4917282C0
Ring, Round Section
Loading…
↗
15
N4916192B0
Washer
Loading…
↗
16
N1516333N0
Spring clutch 1
Loading…
↗
17
9345147060
Circlip (712)
Loading…
↗
18
N4916329B0
Cap, Rubber
Loading…
↗
19
N4916321B0
Plate, Friction
Loading…
↗
20
N4916331B0
Plate, Friction 2
Loading…
↗
21
N0216324N1
Plate, clutch 1
Loading…
↗
22
N4916319B0
Piston,Clutch
Loading…
↗
23
7121639300
Ring, square 1
Loading…
↗
24
N4916394B0
Ring,Square2
Loading…
↗
26
N0217293N0
Shim
Loading…
↗
27
N0218219N0
Ring, oil seal
Loading…
↗
