Yamaha Outboard Parts - INSTRUMENTS ANALOGUE - Rigging Parts (2006) | Flood Marine

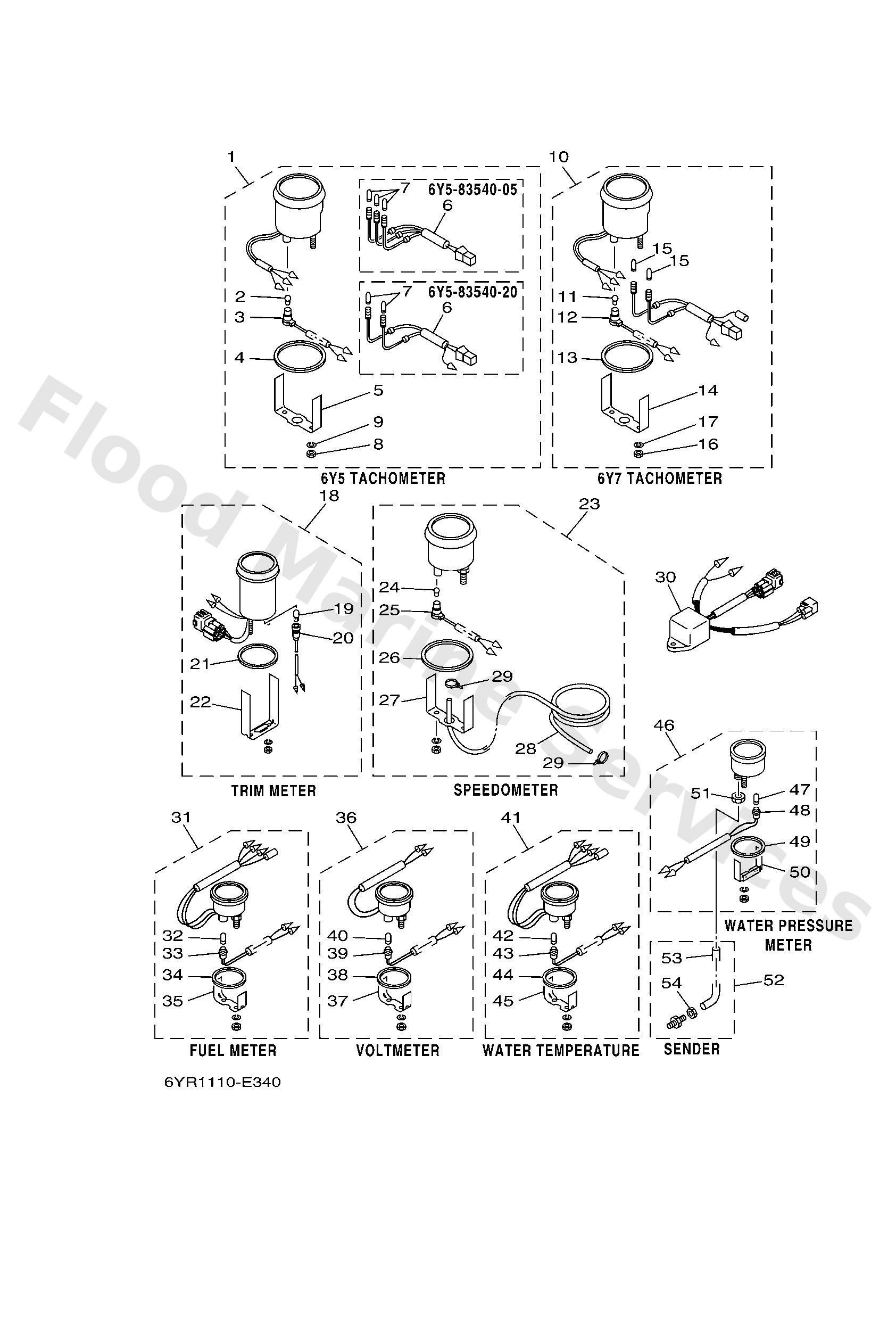

Diagram: INSTRUMENTS ANALOGUE

Diagram

Parts List

Reference
Description
Price


1
6Y58354005 UR WITH OIL LAMP
Tachometer assembly
Loading…

↗
1
6Y58354014 UR WITHOUT OIL LAMP
Tachometer assembly
Loading…

↗
1
6Y58354020 UR WITH OIL/TEMP LAMP
Tachometer assembly
Loading…

↗
2
6Y58351700
Bulb (12v-1.7w)
Loading…

↗
25
6Y58353610 UR 6Y5 SPEEDOMETER
Socket, meter
Loading…

↗
4
6Y58352300
Damper
Loading…

↗
5
6Y58351400
Plate, fitting
Loading…

↗
6
6Y58350903 UR 6Y5-83540-05
Socket cord assembly
Loading…

↗
6
6Y58350910 UR 6Y5-83540-20
Socket cord assembly
Loading…

↗
7
6Y58351800 UR 6Y5-83540-05
Bulb (12v-1.7w) t6.5
Loading…

↗
8
9538005600
Nut, hexagon (663)
Loading…

↗
9
9299005100
Ybs67-5 washer, spring
Loading…

↗
10
6Y78354060 UR WITH OIL/TEMP LAMP
Tachometer assembly
Loading…

↗
10
6Y78354070 UR WITH OIL/TEMP LAMP
Tachometer assembly
Loading…

↗
25
6Y58353640 UR 6Y7 SPEEDOMETER
Socket, meter
Loading…

↗
18
6Y58367012 UR
Trim meter assembly.
Loading…

↗
18
6Y78367010 UR
Trim meter assembly.
Loading…

↗
18
6Y78367030 UR
Trim Meter assembly.
Loading…

↗
20
6Y58353600
Socket, meter
Loading…

↗
21
6Y58354400
Plate, fitting
Loading…

↗
22
6888366400
Damper
Loading…

↗
23
6Y58351000 UR
Speedometer assembly(km/h,mph,max7
Loading…

↗
23
6Y58351010 UR
Speedometer assembly(km/h,mph,max5
Loading…

↗
23
6Y78351000 UR
Speedometer assembly (black)
Loading…

↗
23
6Y78351010 UR
Speedometer assembly (white)
Loading…

↗
28
6888355700
Tube (8m)
Loading…

↗
29
9046511M10
Clamp
Loading…

↗
30
6Y58195002 FOR 6Y5 OIL LIGHT
Relay assembly
Loading…

↗
31
6Y78575010 UR
Fuel meter assembly
Loading…

↗
31
6Y78575030 UR
Fuel meter assembly
Loading…

↗
36
6Y58350300 UR
Voltmeter assembly
Loading…

↗
36
6Y78350300 UR
Voltmeter assembly
Loading…

↗
36
6Y78350310 UR
Voltmeter assembly
Loading…

↗
41
6Y78359000 UR
Water temperature assembly
Loading…

↗
41
6Y78359010 UR
Water temperature assembly
Loading…

↗
41
6Y58359000 UR
Water temperature assembly
Loading…

↗
46
6Y78366030 UR
Water Pressure Meter assembly
Loading…

↗
46
6Y78366010 UR
Water Pressure Meter assembly
Loading…

↗
50
6888366500
Plate, fitting
Loading…

↗
51
6638366800
Nut, nipple
Loading…

↗
52
6888366700
Sender
Loading…

↗
53
6888366600
Tube
Loading…

↗
