Yamaha Outboard Parts - INSTRUMENTS DIGITAL - Rigging Parts (2006) | Flood Marine

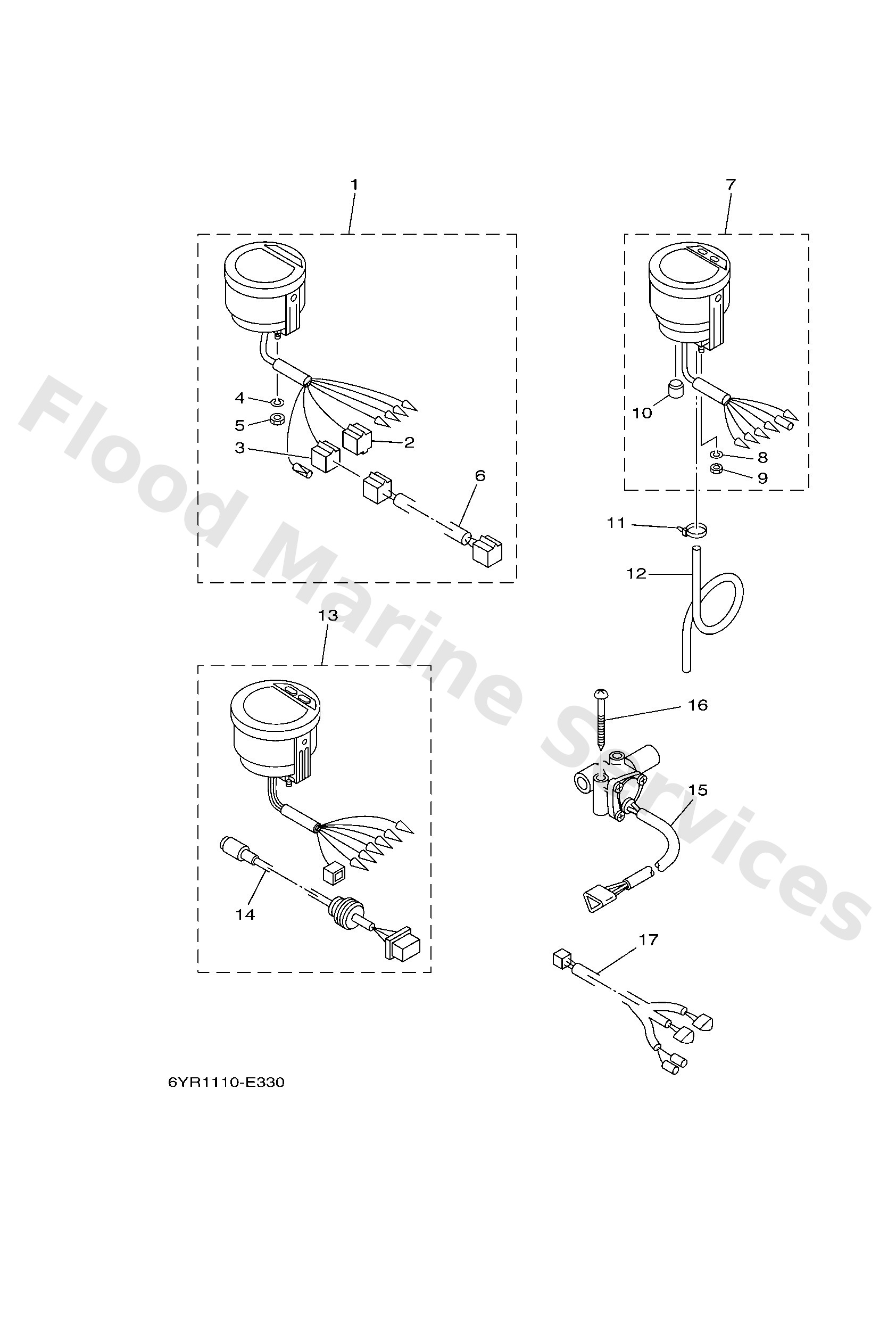

Diagram: INSTRUMENTS DIGITAL

Diagram

Parts List

Reference

Description

Price

1

6Y58350T82

Tachometer assembly

Loading…

2

9E45004433 M-4-W

Housing, connector (m-4-w)

Loading…

3

9E45004533 F-4-W

Housing, f-4-w(5pcs)

Loading…

4

9299004100

Ybs67-4 washer, spring

Loading…

5

9538004600

Loading…

6

6Y58355380

Loading…

7

6Y583570S5

Speedometer assembly

Loading…

10

6Y583533T2

Loading…

11

9046511M10

Loading…

12

6Y58355710

Loading…

13

6Y583500F2

Fuel meter movement assembly

Loading…

14

6Y587122S0 FOR GPS CONNECTION

Cord assembly 1

Loading…

15

6Y58575201

Sender unit assembly, fuel meter

Loading…

16

9015806002

Loading…

17

6Y583553F1 FOR FUEL SENDER

Loading…
