115CETO (2010)
INTAKE

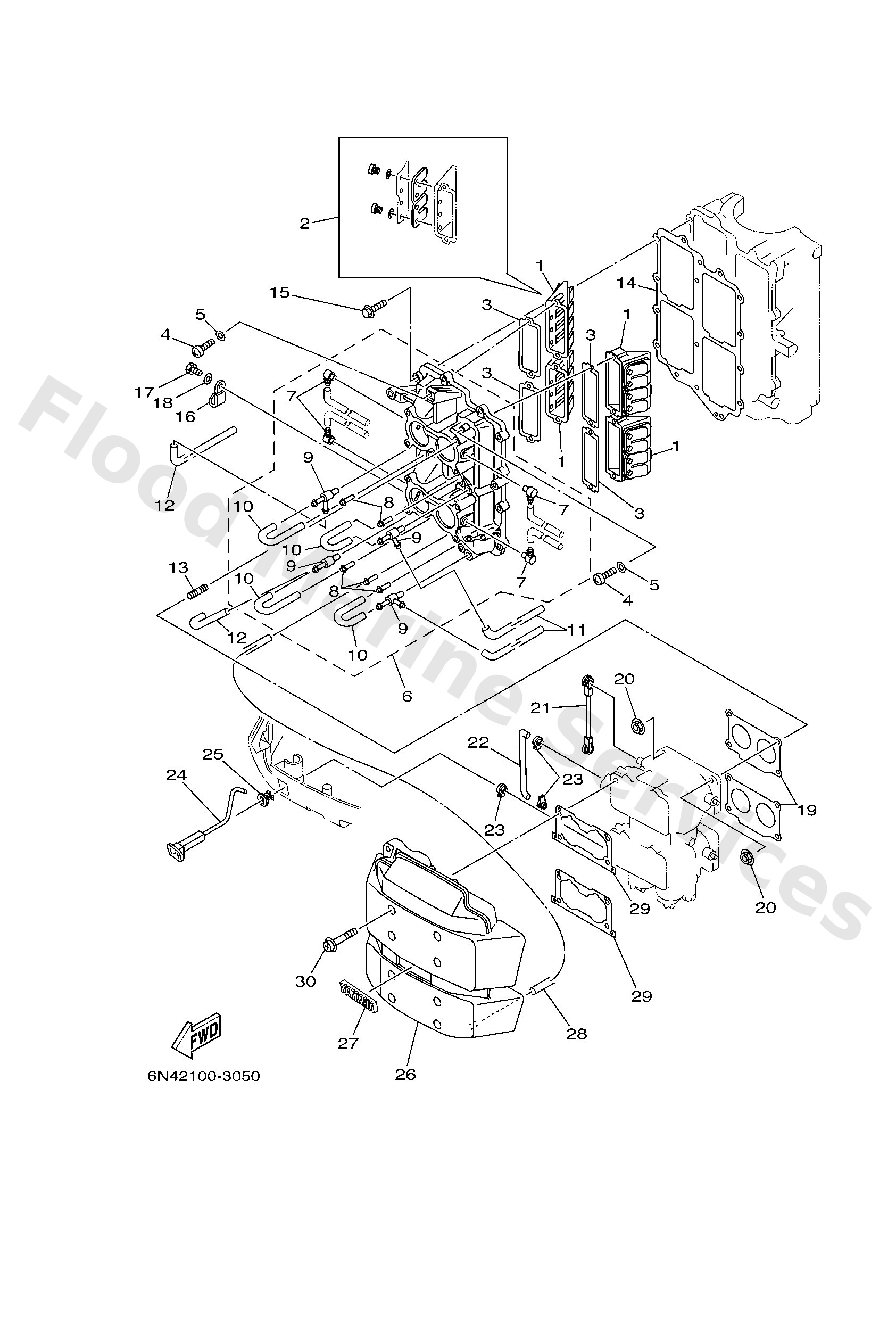

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6E51361000
Reed valve assembly
Loading…
↗
2
6E5W000400
Reed set
Loading…
↗
3
6E513621A1
Gasket, valve seat
Loading…
↗
4
9788005025
Screw, panhead (a93)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
6E513641111S
Manifold 1
Loading…
↗
7
6E51355201
Nozzle
Loading…
↗
8
6241448500
Pipe, joint
Loading…
↗
9
6E51137001
Check valve assembly
Loading…
↗
10
9044507M28
Hose (l200)
Loading…
↗
11
9044507M24
Hose (l390)
Loading…
↗
12
9044507M46
Hose (l390)
Loading…
↗
13
9011606M30
Bolt, stud(6e5)
Loading…
↗
14
6E513645A1
Gasket, manifold 1
Loading…
↗
15
9011906MA3
Bolt, with washer
Loading…
↗
16
9046506M86
Clamp
Loading…
↗
17
9709506012
Bolt(gh1)
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
6E514198A2
Gasket
Loading…
↗
20
9017906M28
Nut(63v)
Loading…
↗
21
6E54121701
Rod, accel. lever
Loading…
↗
22
6E54125601
Rod, choke 1
Loading…
↗
23
6614126202
Joint, choke lever
Loading…
↗
24
6N74127100
Knob, choke
Loading…
↗
25
6894127300
Grommet
Loading…
↗
26
6N71444001
Silencer assembly, intake
Loading…
↗
27
6E51441K00
Emblem 1
Loading…
↗
28
9044507258
Hose (l390)
Loading…
↗
29
6K71448300
Gasket
Loading…
↗
30
9015906M14
Screw, with washer(6r3)
Loading…
↗
