200GETO (2002)
INTAKE

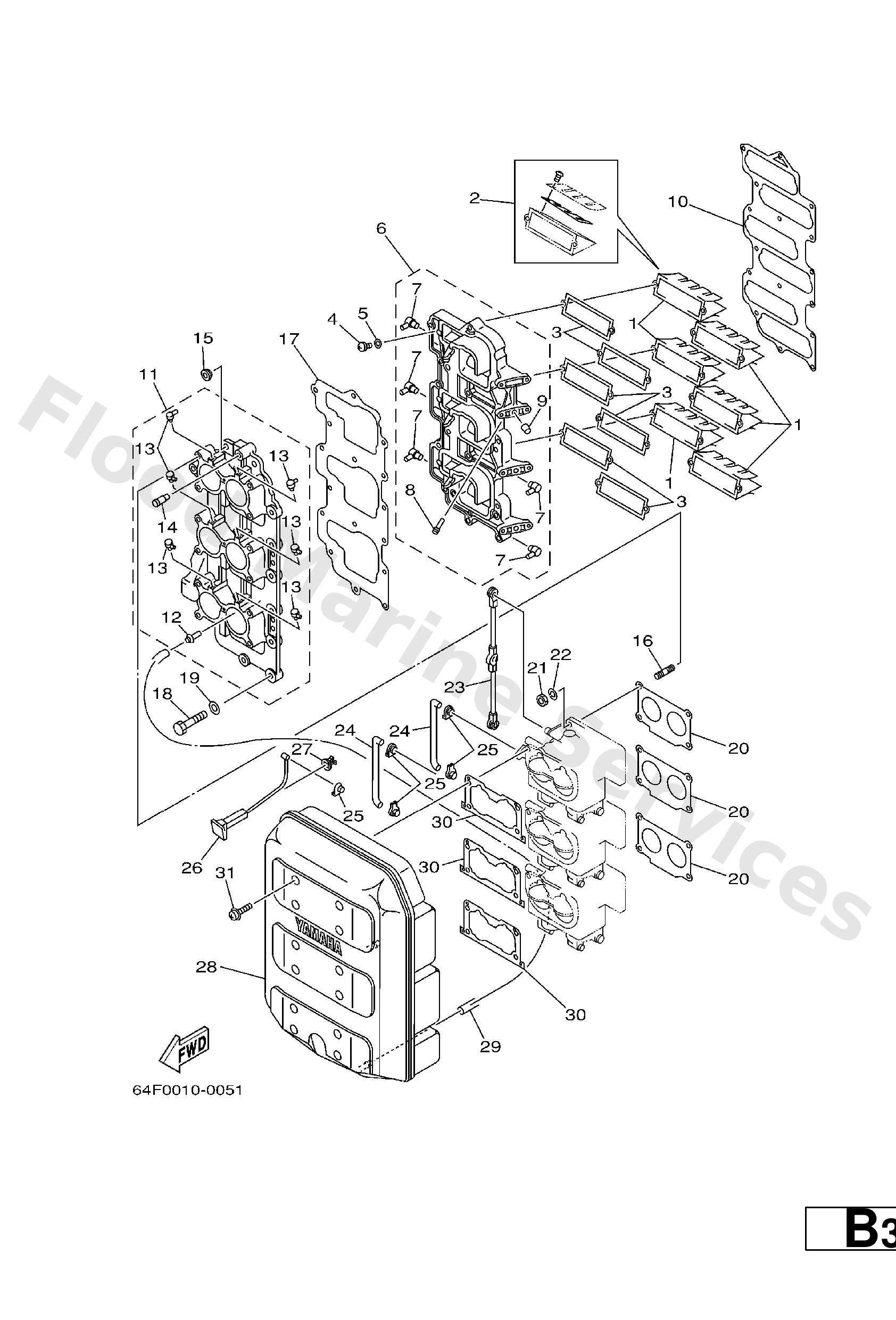

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6K7--13610--00
Reed valve assembly
Loading…
↗
2
6E5--W0004--00
Reed set
Loading…
↗
3
6K7--13621--A1
Gasket, valve seat
Loading…
↗
4
97880--05016
Screw, pan head(6b0)
Loading…
↗
5
92990--05600
Washer, plain (646)
Loading…
↗
6
64E--13624--00--1S
Plate,reed valve
Loading…
↗
7
688--11372--00
Nipple, hose
Loading…
↗
8
6R5--14485--00
Pipe, joint
Loading…
↗
9
90336--08M06
Plug, Taper
Loading…
↗
10
6K7--13646--A2
Gasket, manifold 2
Loading…
↗
11
64E--13641--00--1S
Manifold 1
Loading…
↗
12
624--14485--00
Pipe, joint
Loading…
↗
13
6E5--13552--00
Nozzle
Loading…
↗
14
6K7--81338--01
Stay
Loading…
↗
15
90480--10M28
Grommet(6k7)
Loading…
↗
16
90116--06M30
Bolt, stud(6e5)
Loading…
↗
17
64E--13645--A0
Gasket, manifold 1
Loading…
↗
18
97013--06050
Bolt, hexagon
Loading…
↗
19
92903--06600
Washer, plain (646)
Loading…
↗
20
6E5--14198--A2
Gasket
Loading…
↗
21
95380--06600
Nut(661)
Loading…
↗
22
92995--06100
Washer(6a1)
Loading…
↗
23
6G5--41217--01
Rod, accel. lever
Loading…
↗
24
6E5--41256--01
Rod, choke 1
Loading…
↗
25
661--41262--02
Joint, choke lever
Loading…
↗
26
61H--41271--10
Knob, choke
Loading…
↗
27
689--41273--00
Grommet
Loading…
↗
28
64D--14440--00
Silencer assembly, Intake
Loading…
↗
29
90445--07MA3
Hose (l200)
Loading…
↗
30
6K7--14483--00
Gasket
Loading…
↗
31
90159--06M08
Screw, with washer(6k7)
