200GETO (2003)
INTAKE

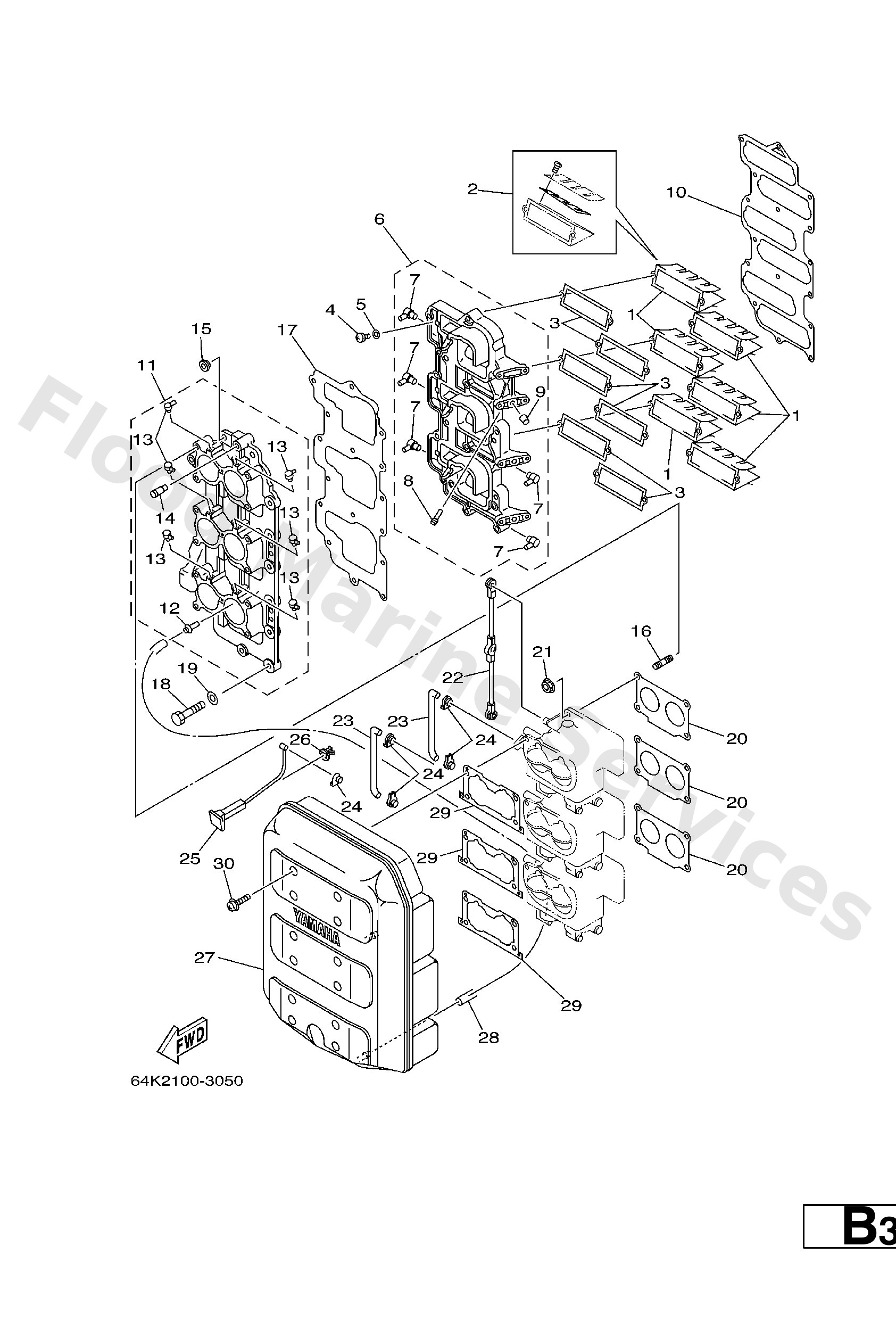

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6K7−13610−00
Reed valve assembly
Loading…
↗
2
6E5−W0004−00
Reed set
Loading…
↗
3
6K7−13621−A1
Gasket, valve seat
Loading…
↗
4
97880−05016
Screw, pan head(6b0)
Loading…
↗
5
92990−05600
Washer, plain (646)
Loading…
↗
6
64E−13624−00−1S
Plate,reed valve
Loading…
↗
7
688−11372−01
Nipple, hose
Loading…
↗
8
6R5−14485−00
Pipe, joint
Loading…
↗
9
90336−08M06
Plug, Taper
Loading…
↗
10
6K7−13646−A2
Gasket, manifold 2
Loading…
↗
11
64E−13641−00−1S
Manifold 1
Loading…
↗
12
624−14485−00
Pipe, joint
Loading…
↗
13
6E5−13552−01
Nozzle
Loading…
↗
14
6K7−81338−01
Stay
Loading…
↗
15
90480−10M28
Grommet(6k7)
Loading…
↗
16
90116−06M30
Bolt, stud(6e5)
Loading…
↗
17
64E−13645−A0
Gasket, manifold 1
Loading…
↗
18
97013−06050
Bolt, hexagon
Loading…
↗
19
92903−06600
Washer, plain (646)
Loading…
↗
20
6E5−14198−A2
Gasket
Loading…
↗
21
90179−06M28
Nut(63v)
Loading…
↗
22
6G5−41217−01
Rod, accel. lever
Loading…
↗
23
6E5−41256−01
Rod, choke 1
Loading…
↗
24
661−41262−02
Joint, choke lever
Loading…
↗
25
61H−41271−10
Knob, choke
Loading…
↗
26
689−41273−00
Grommet
Loading…
↗
27
64D−14440−00
Silencer assembly, Intake
Loading…
↗
28
90445−07MA3
Hose (l200)
Loading…
↗
29
6K7−14483−00
Gasket
Loading…
↗
30
90159−06M08
Screw, with washer(6k7)
Loading…
↗
