20DMHO (2009)
INTAKE

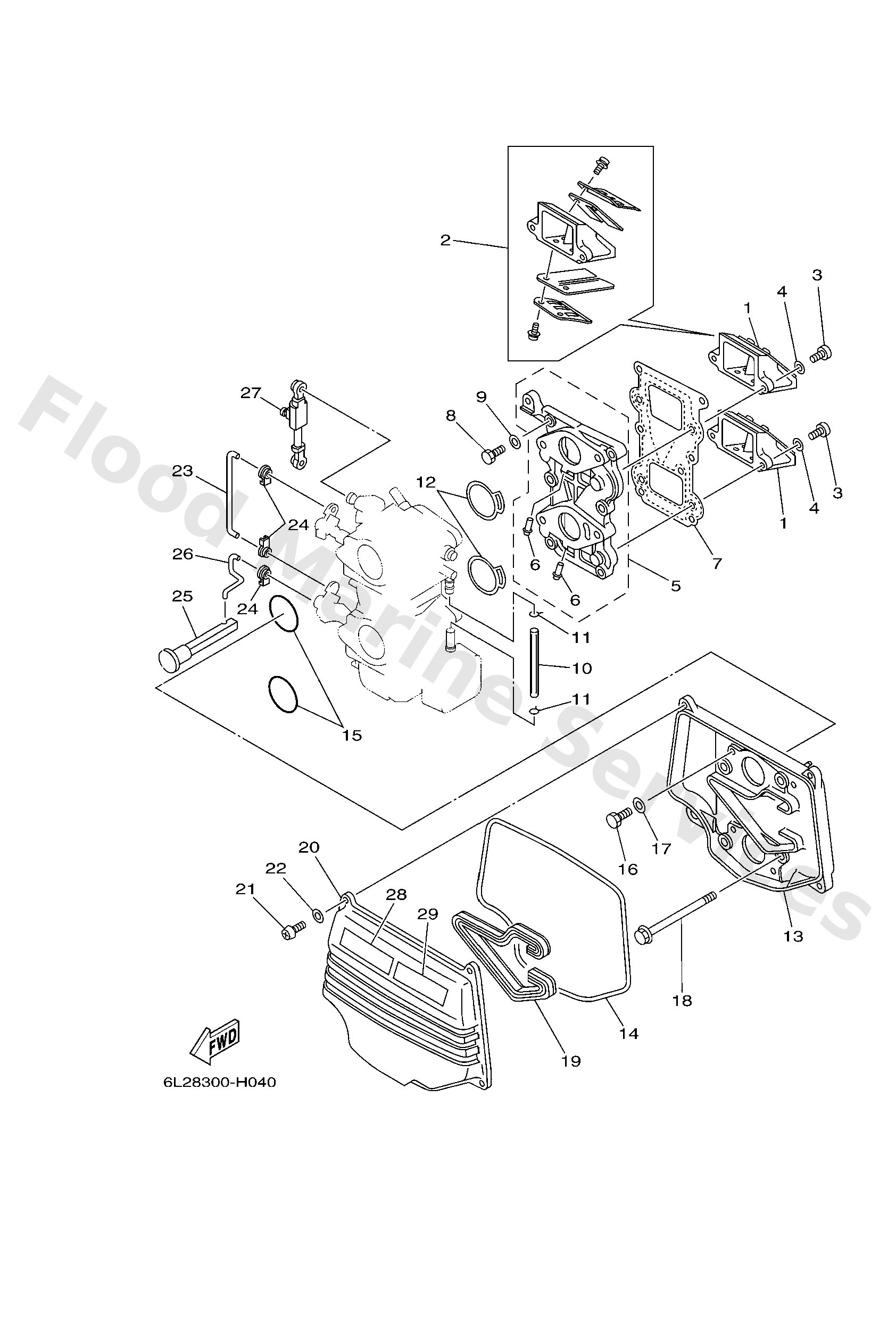

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6L21361000
Reed valve assembly
Loading…
↗
2
6L2W000400
Reed set
Loading…
↗
3
9788005016
Screw, pan head(6b0)
Loading…
↗
4
9299005600
Washer, plain (646)
Loading…
↗
5
6L2136411094
O/I
Manifold 1
Loading…
↗
6
6761448500
Pipe, joint
Loading…
↗
7
6L21362100
Gasket, valve seat
Loading…
↗
8
9701306025
Bolt(62y)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
9044509012
Hose (l1500)
Loading…
↗
11
9046708004
Clip, pipe 6162435600
Loading…
↗
12
6L21419800
Gasket
Loading…
↗
13
6L2144170094
Cover 1
Loading…
↗
14
6L21447600
Seal
Loading…
↗
15
9321035M86
O-ring(6l2)
Loading…
↗
16
9701305012
Bolt, hexagon
Loading…
↗
17
9290305600
Washer, plain (646)
Loading…
↗
18
9751306585
Bolt, with washer
Loading…
↗
19
6L21447611
Seal
Loading…
↗
20
6L21441800
Cover 2
Loading…
↗
23
6J84125900
Rod, choke 3
Loading…
↗
24
6614126202
Joint, choke lever
Loading…
↗
25
6J84127101
Knob, choke
Loading…
↗
26
6L24125700
Rod, choke 2
Loading…
↗
27
6L24121700
Rod, accel. lever
Loading…
↗
28
6AH8199440
Label, safety
Loading…
↗
29
6AH8199450
Label, safety
Loading…
↗
