20DMHO (2011)
INTAKE

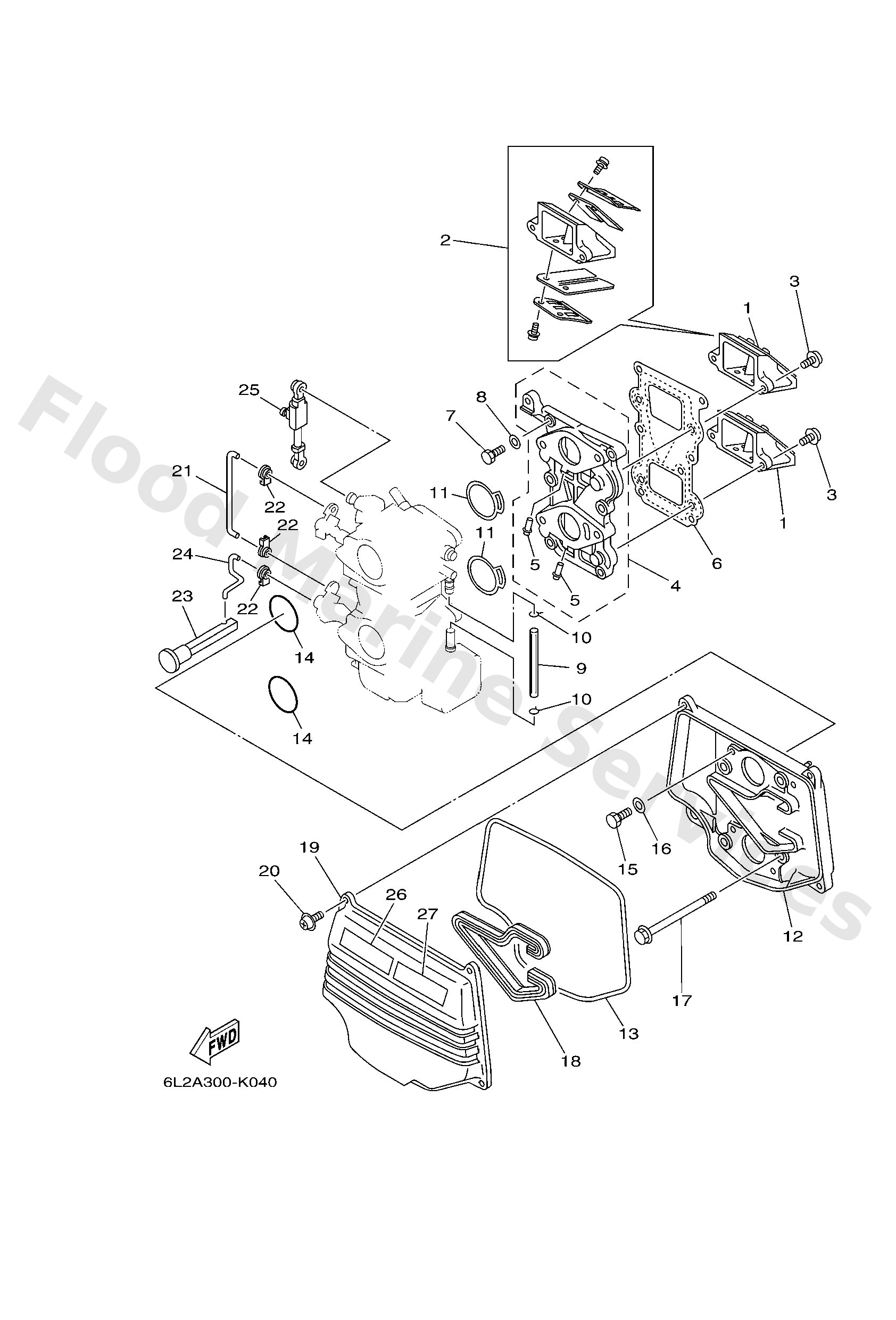

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6L21361000
Reed valve assembly
Loading…
↗
2
6L2W000400
Reed set
Loading…
↗
3
9798005216
Screw, pan w/ plain
Loading…
↗
4
6L21364110
O/I
Manifold 1
Loading…
↗
5
6761448500
Pipe, joint
Loading…
↗
6
6L21362100
Gasket, valve seat
Loading…
↗
7
9701306025
Bolt(62y)
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
9044509012
Hose (l1500)
Loading…
↗
10
9046708004
Clip, pipe 6162435600
Loading…
↗
11
6L21419800
Gasket
Loading…
↗
12
6L2144170094
Cover 1
Loading…
↗
13
6L21447600
Seal
Loading…
↗
14
9321035M86
O-ring(6l2)
Loading…
↗
15
9701305012
Bolt, hexagon
Loading…
↗
16
9290305600
Washer, plain (646)
Loading…
↗
17
9751306585
Bolt, with washer
Loading…
↗
18
6L21447611
Seal
Loading…
↗
19
6L21441800
Cover 2
Loading…
↗
21
6J84125900
Rod, choke 3
Loading…
↗
22
6614126202
Joint, choke lever
Loading…
↗
23
6J84127101
Knob, choke
Loading…
↗
24
6L24125700
Rod, choke 2
Loading…
↗
25
6L24121700
Rod, accel. lever
Loading…
↗
26
6AH8199440
Label, safety
Loading…
↗
27
6AH8199450
Label, safety
Loading…
↗
