20DWO (2002)
INTAKE

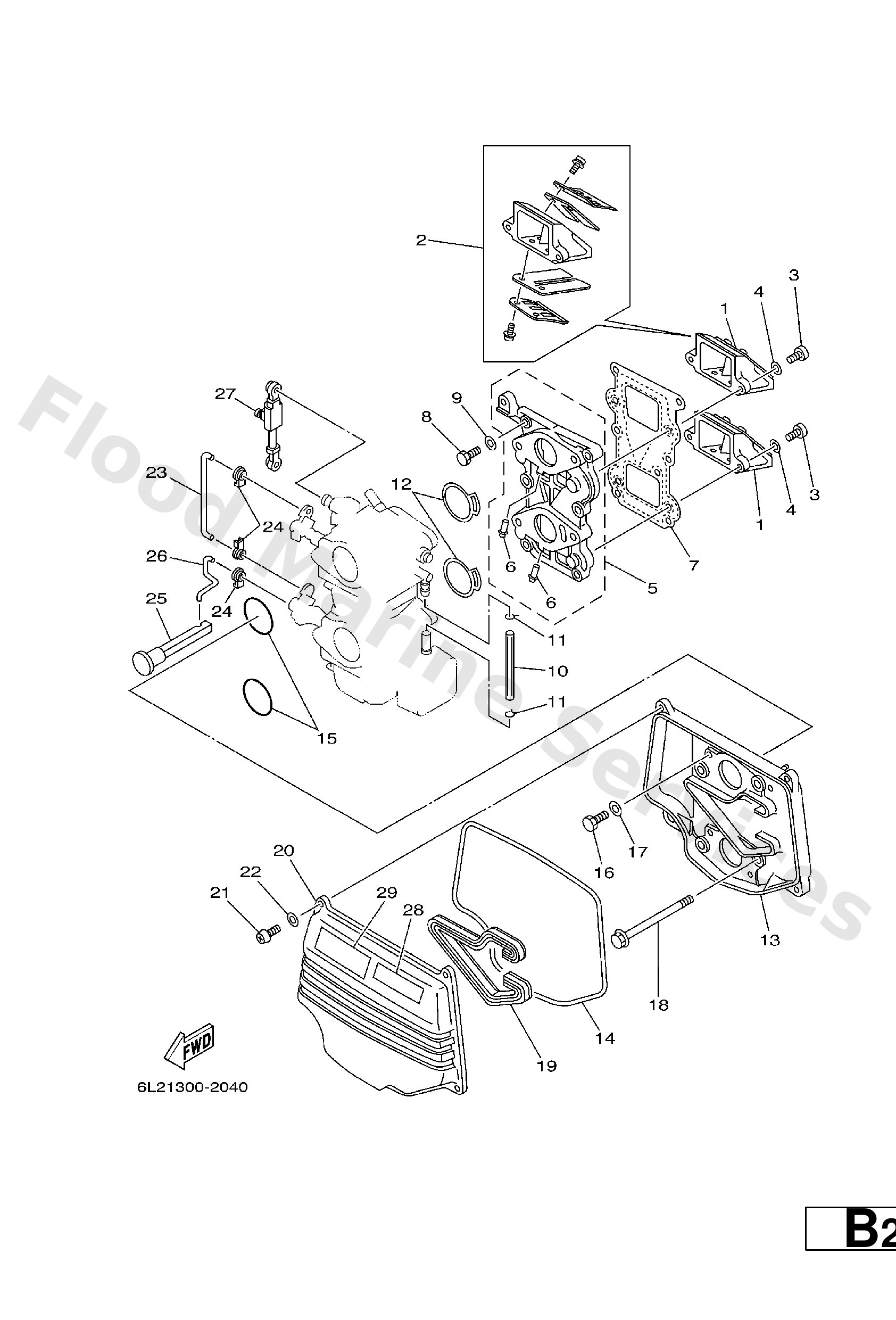

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6L2−13610−00
Reed valve assembly
Loading…
↗
2
6L2−W0004−00
Reed set
Loading…
↗
3
97880−05016
Screw, pan head(6b0)
Loading…
↗
4
92990−05600
Washer, plain (646)
Loading…
↗
5
6L2−13641−10−94
O/I
Manifold 1
Loading…
↗
6
676−14485−00
Pipe, joint
Loading…
↗
7
6L2−13621−00
Gasket, valve seat
Loading…
↗
8
97013−06025
Bolt(62y)
Loading…
↗
9
92903−06600
Washer, plain (646)
Loading…
↗
10
90445−09012
Hose (l1500)
Loading…
↗
11
90467−08004
Clip, pipe 6162435600
Loading…
↗
12
6L2−14198−00
Gasket
Loading…
↗
13
6L2−14417−00−94
Cover 1
Loading…
↗
14
6L2−14476−00
Seal
Loading…
↗
15
93210−35M86
O-ring(6l2)
Loading…
↗
16
97013−05012
Bolt, hexagon
Loading…
↗
17
92903−05600
Washer, plain (646)
Loading…
↗
18
97513−06585
Bolt, with washer
Loading…
↗
19
6L2−14476−11
Seal
Loading…
↗
20
6L2−14418−00
Cover 2
Loading…
↗
23
6J8−41259−00
Rod, choke 3
Loading…
↗
24
661−41262−02
Joint, choke lever
Loading…
↗
25
6J8−41271−01
Knob, choke
Loading…
↗
26
6L2−41257−00
Rod, choke 2
Loading…
↗
27
6L2−41217−00
Rod, accel. lever
Loading…
↗
28
6A1−83625−41
Mark 5
Loading…
↗
29
6A1−83625−51
Mark 5
Loading…
↗
