225GETO (2003)
INTAKE

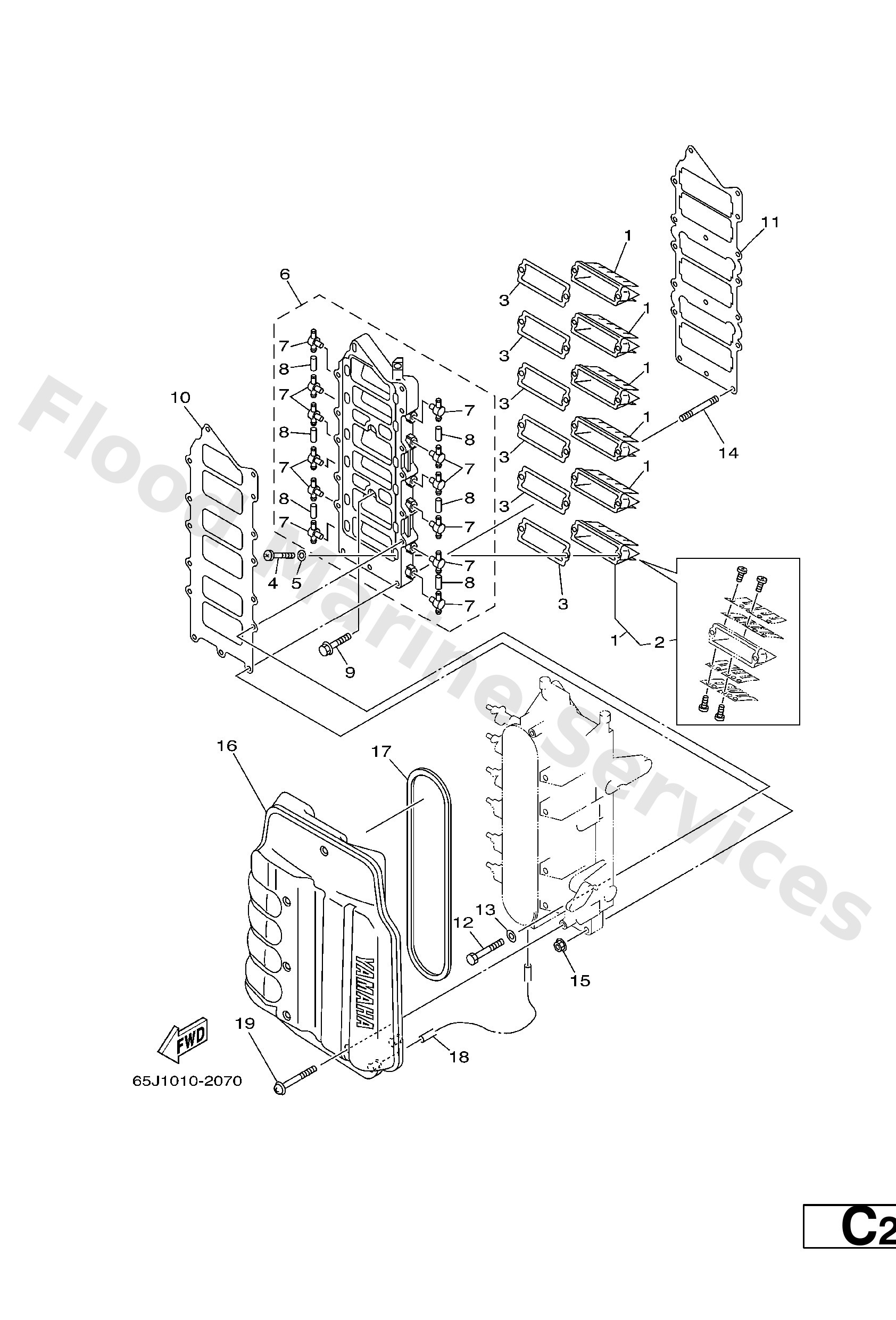

Diagram: INTAKE
Parts List
Reference
Description
Price
1
65L−13610−01
Reed valve assembly
Loading…
↗
2
65J−W0004−01
Reed set
Loading…
↗
3
61A−13621−A0
Gasket, valve seat
Loading…
↗
4
97880−05016
Screw, pan head(6b0)
Loading…
↗
5
92990−05600
Washer, plain (646)
Loading…
↗
6
65L−13624−01−1S
Plate,Reed Valve
Loading…
↗
7
6F6−11372−00
Nipple, hose
Loading…
↗
8
90445−07M03
Hose (l200)
Loading…
↗
9
90105−06028
Bolt, washer based
Loading…
↗
10
65L−13646−00
Gasket, manifold 2
Loading…
↗
11
65L−13645−00
Gasket, manifold 1
Loading…
↗
12
97013−06060
Bolt, hexagon
Loading…
↗
13
92903−06600
Washer, plain (646)
Loading…
↗
14
95670−06655
Bolt, Stud
Loading…
↗
15
90179−06M24
Nut(6j8)
Loading…
↗
16
65L−14440−00
Silencer assembly, intake
Loading…
↗
17
65L−14483−00
Gasket
Loading…
↗
18
90445−07M44
Hose (l390)
Loading…
↗
19
90159−06M16
Screw, with washer(61a)
Loading…
↗
