250GETO (2007)
INTAKE

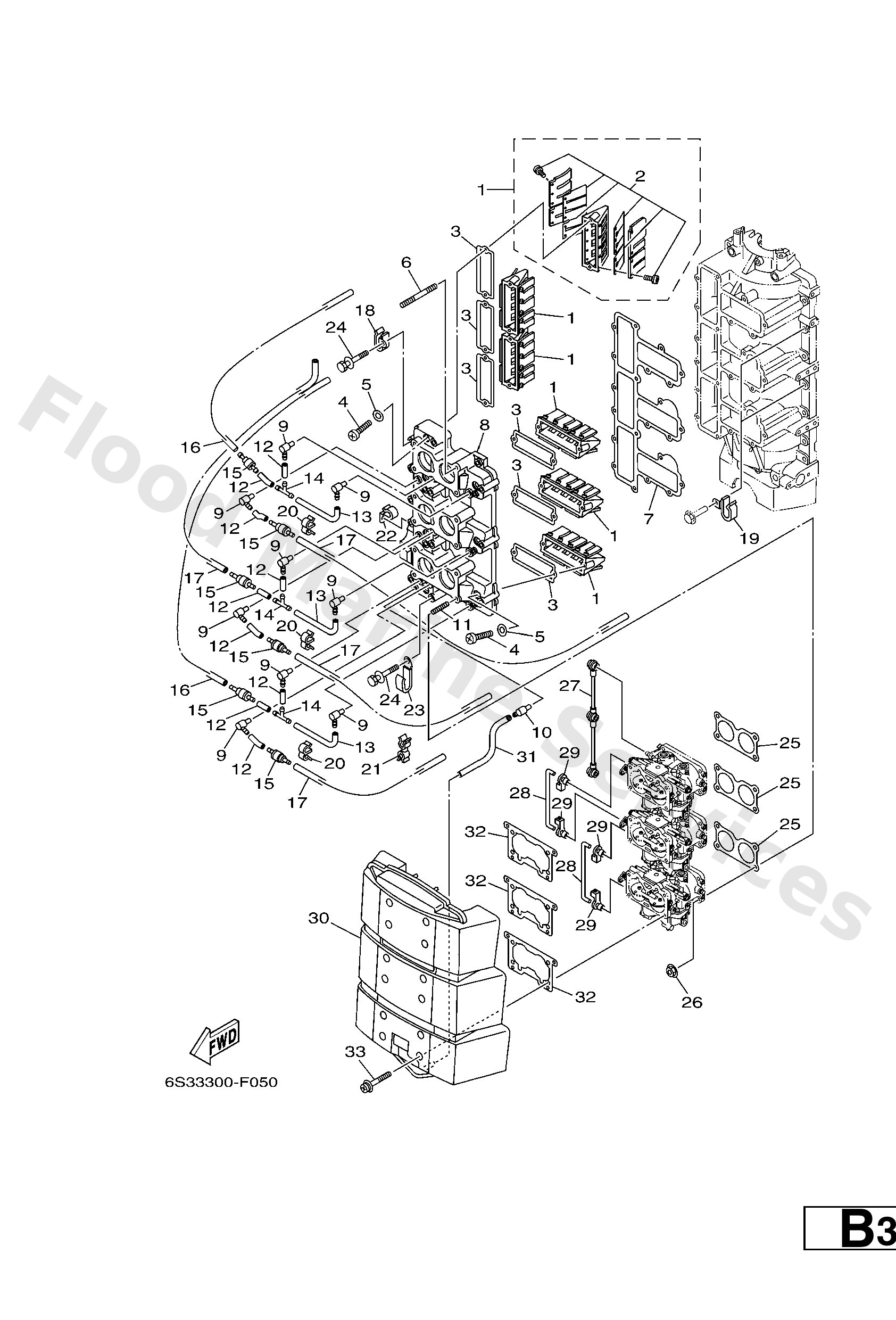

Diagram: INTAKE
Parts List
Reference
Description
Price
1
69L1361000
Reed valve assembly
Loading…
↗
2
69LW000400
Reed set
Loading…
↗
3
61A13621A0
Gasket, valve seat
Loading…
↗
4
9788005016
Screw, pan head(6b0)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
9011606M15
Bolt, stud (6e9)
Loading…
↗
7
6S31364500
Gasket, manifold 1
Loading…
↗
8
6S313641001S
Manifold 1
Loading…
↗
9
6E51355201
Nozzle
Loading…
↗
10
6E51137201
Nipple, hose
Loading…
↗
11
9011606M30
Bolt, stud(6e5)
Loading…
↗
12
9044507023
Hose (l25)
Loading…
↗
13
9044507024
Hose (l110)
Loading…
↗
14
6E02437800
Pipe, joint
Loading…
↗
15
6S31318300
Valve, check
Loading…
↗
16
9044507M45
Hose (l390)
Loading…
↗
17
9044507M59
Hose (l770)
Loading…
↗
18
9046508021
Clamp
Loading…
↗
19
9046208051
Clamp
Loading…
↗
20
9046407M20
Clamp(6h0)
Loading…
↗
21
9046412182
Clamp
Loading…
↗
22
9046208052
Clamp
Loading…
↗
23
9046506M88
Clamp
Loading…
↗
24
9011906025
Bolt, with washer
Loading…
↗
25
6S31419800
Gasket
Loading…
↗
26
9017906M28
Nut(63v)
Loading…
↗
27
6G54121701
Rod, accel. lever
Loading…
↗
28
6E54125601
Rod, choke 1
Loading…
↗
29
6614126202
Joint, choke lever
Loading…
↗
30
6K71444002
Silencer assembly, intake
Loading…
↗
31
9044507MA5
Hose (l200)
Loading…
↗
32
6K71448300
Gasket
Loading…
↗
33
9015906M08
Screw, with washer(6k7)
