30DMH (2003)
INTAKE

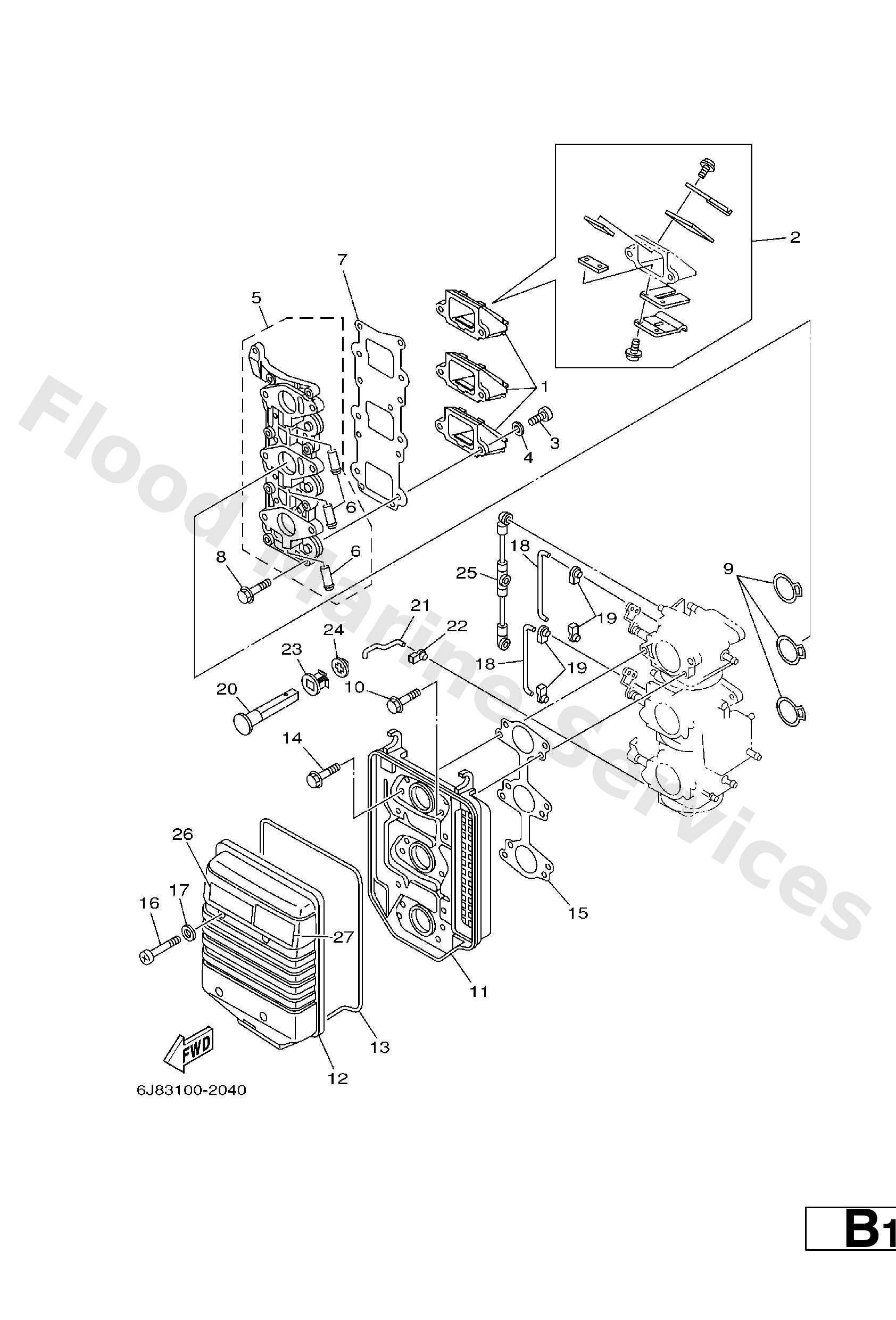

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6J8−13610−00
Reed Valve assembly
Loading…
↗
2
6J8−W0004−00
Reed set
Loading…
↗
3
97880−05016
Screw, pan head(6b0)
Loading…
↗
4
92990−05600
Washer, plain (646)
Loading…
↗
5
6J8−13641−00−94
N.O/I
Manifold 1
Loading…
↗
5
6J8−13641−10−94
O/I
Manifold 1
Loading…
↗
6
676−14485−00
FOR 6J8−13641−10−94
Pipe, joint
Loading…
↗
7
6J8−13621−00
Gasket, valve seat
Loading…
↗
8
90119−06MA3
Bolt, with washer
Loading…
↗
9
6J8−14198−00
Gasket
Loading…
↗
10
90119−06M32
Bolt, with washer(6j8)
Loading…
↗
11
6J8−14417−00
Cover 1
Loading…
↗
12
6J8−14418−00
Cover 2
Loading…
↗
13
6J8−14476−00
Seal
Loading…
↗
14
90119−05M31
Bolt, with washer(6j8)
Loading…
↗
15
6J8−14483−A1
Gasket
Loading…
↗
16
97880−05040
Screw,panhead (eg9)
Loading…
↗
18
6J8−41259−00
Rod, choke 3
Loading…
↗
19
661−41262−02
Joint, choke lever
Loading…
↗
20
6J8−41271−01
Knob, choke
Loading…
↗
21
6J8−41257−00
Rod, choke 2
Loading…
↗
22
6J8−41262−00
Joint, choke lever
Loading…
↗
23
689−41273−00
Grommet
Loading…
↗
24
6J8−41274−00
Grommet 2
Loading…
↗
25
6J8−41217−00
Rod, accel. lever
Loading…
↗
26
6A1−83625−41
Mark 5
Loading…
↗
27
6A1−83625−51
FOR CANADA
Mark 5
Loading…
↗
