30DMHO (2006)
INTAKE

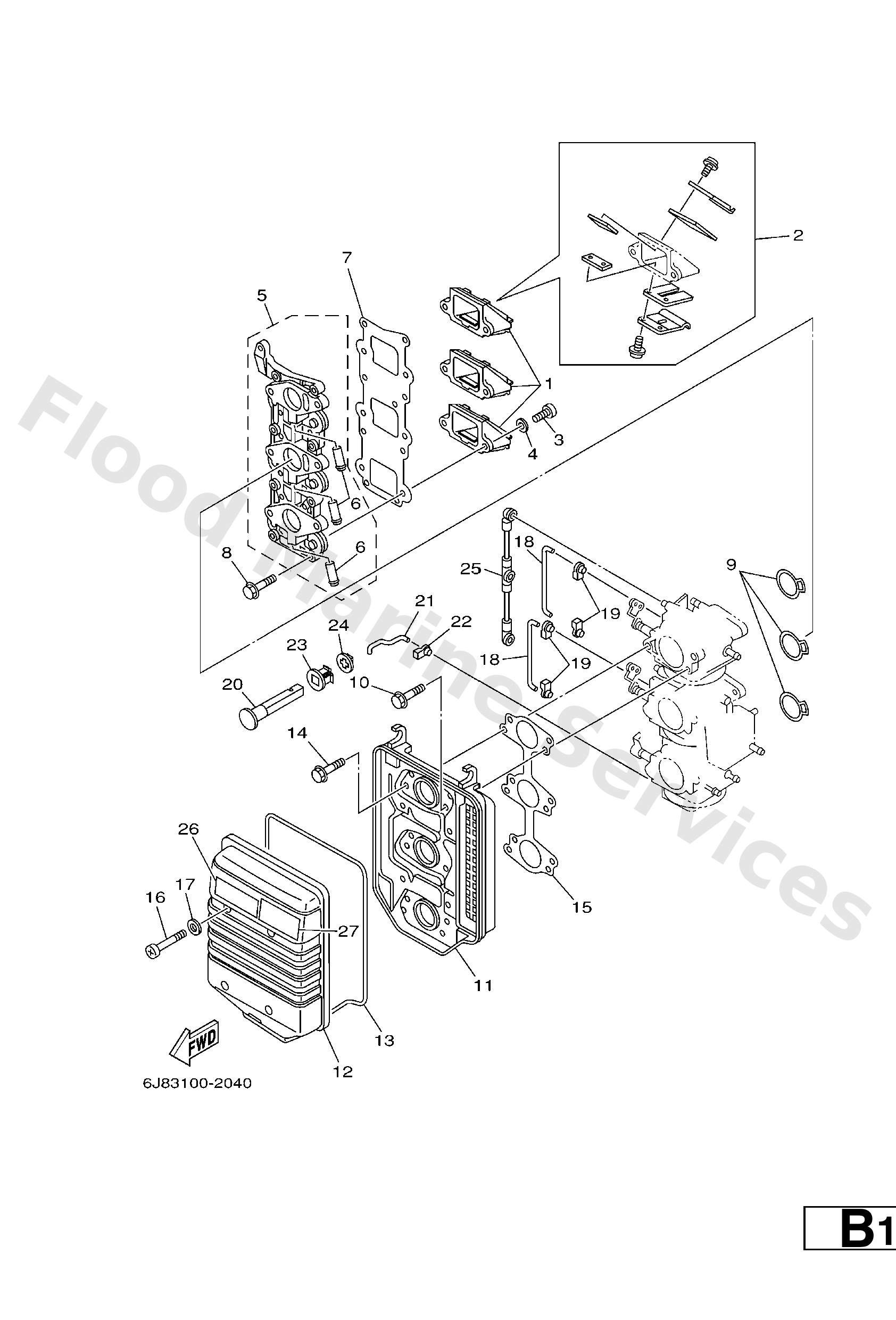

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6J81361000
-
Loading…
↗
2
6J8W000400
Reed set
Loading…
↗
3
9788005016
Screw, pan head(6b0)
Loading…
↗
4
9299005600
Washer, plain (646)
Loading…
↗
5
6J8136411094
Manifold 1
Loading…
↗
6
6761448500
Pipe, joint
Loading…
↗
7
6J81362100
Gasket, valve seat
Loading…
↗
8
9011906MA3
Bolt, with washer
Loading…
↗
9
6J81419800
Gasket
Loading…
↗
10
9011906M32
Bolt, with washer(6j8)
Loading…
↗
11
6J81441700
Cover 1
Loading…
↗
12
6J81441800
Cover 2
Loading…
↗
13
6J81447600
Seal
Loading…
↗
14
9011905M31
Bolt, with washer(6j8)
Loading…
↗
15
6J814483A1
Gasket
Loading…
↗
16
9788005040
Screw,panhead (eg9)
Loading…
↗
18
6J84125900
Rod, choke 3
Loading…
↗
19
6614126202
Joint, choke lever
Loading…
↗
20
6J84127101
Knob, choke
Loading…
↗
21
6J84125700
Rod, choke 2
Loading…
↗
22
6J84126200
Joint, choke lever
Loading…
↗
23
6894127300
Grommet
Loading…
↗
24
6J84127400
Grommet 2
Loading…
↗
25
6J84121700
Rod, accel. lever
Loading…
↗
26
6A18362541
Mark 5
Loading…
↗
27
6A18362551
-
Loading…
↗
