30HWH (2005)
INTAKE

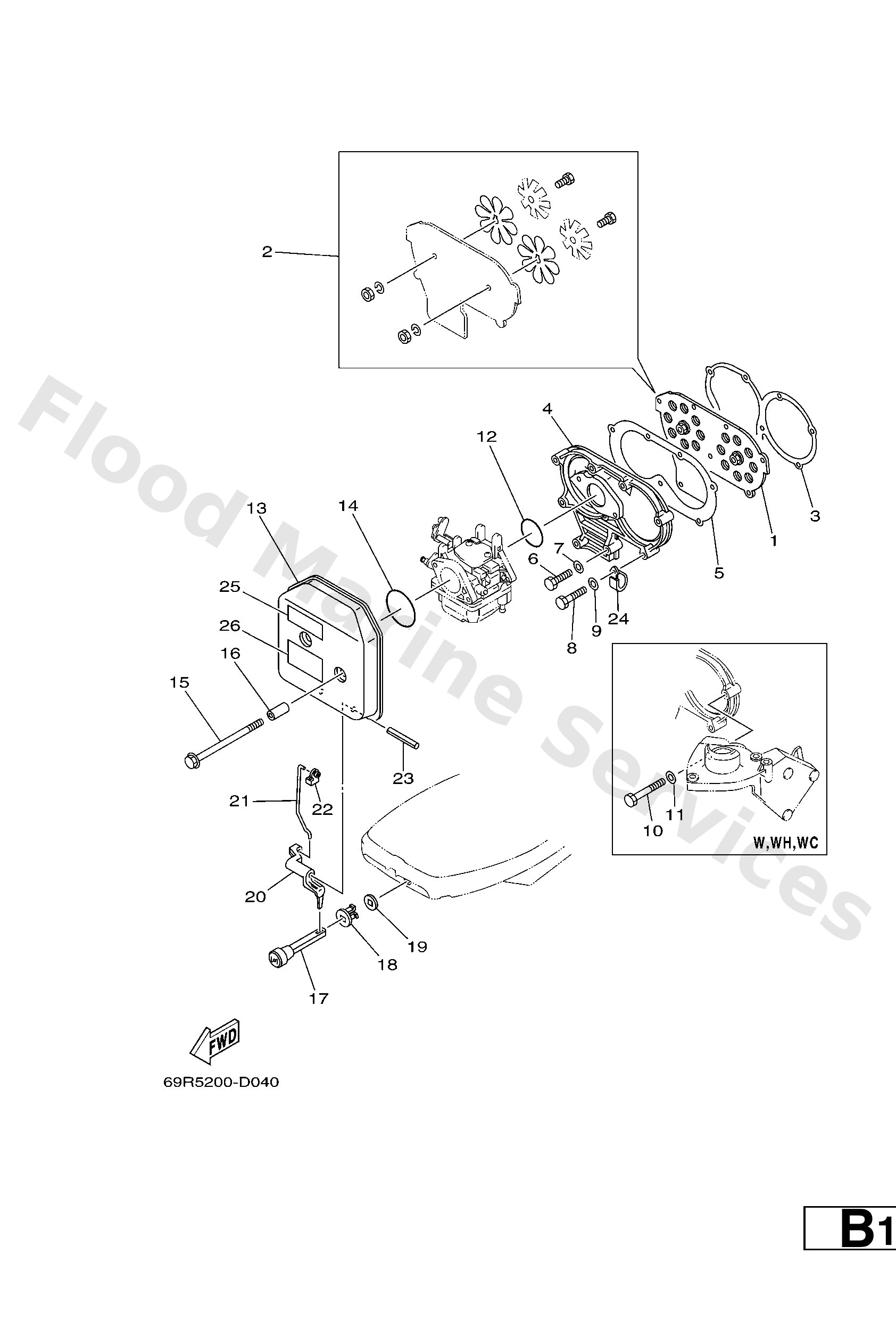

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6891361001
E30H,30H
Reed valve assembly
Loading…
↗
1
61N1361000
E25B,25B
Reed valve assembly
Loading…
↗
2
689W000400
Reed set
Loading…
↗
3
64813621A1
Gasket, valve seat
Loading…
↗
4
61N13641011S
Manifold, intake 1
Loading…
↗
5
64813645A0
Gasket, manifold 1
Loading…
↗
6
9701306025
Bolt(62y)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
9701306035
Bolt(3rv)
Loading…
↗
10
9701306050
Bolt, hexagon
Loading…
↗
12
61N1419800
Gasket
Loading…
↗
13
61N1444000
Silencer assembly, intake
Loading…
↗
14
9321040659
O-ring(36y)
Loading…
↗
15
9011906M94
Bolt, with washer
Loading…
↗
16
9038706M26
Collar(61n)
Loading…
↗
17
6824127100
Knob, choke
Loading…
↗
18
6894127300
Grommet
Loading…
↗
19
6J84127400
Grommet 2
Loading…
↗
20
6894125201
Lever, choke 1
Loading…
↗
21
61N4125600
Rod, choke 1
Loading…
↗
22
6614126202
Joint, choke lever
Loading…
↗
23
9169040048
Pin, spring (689)
Loading…
↗
24
9046506M88
Clamp
Loading…
↗
25
6A18362541
Mark 5
Loading…
↗
26
61T8362580
FOR RUS
Mark 5
Loading…
↗
