3AMH (2002)
INTAKE

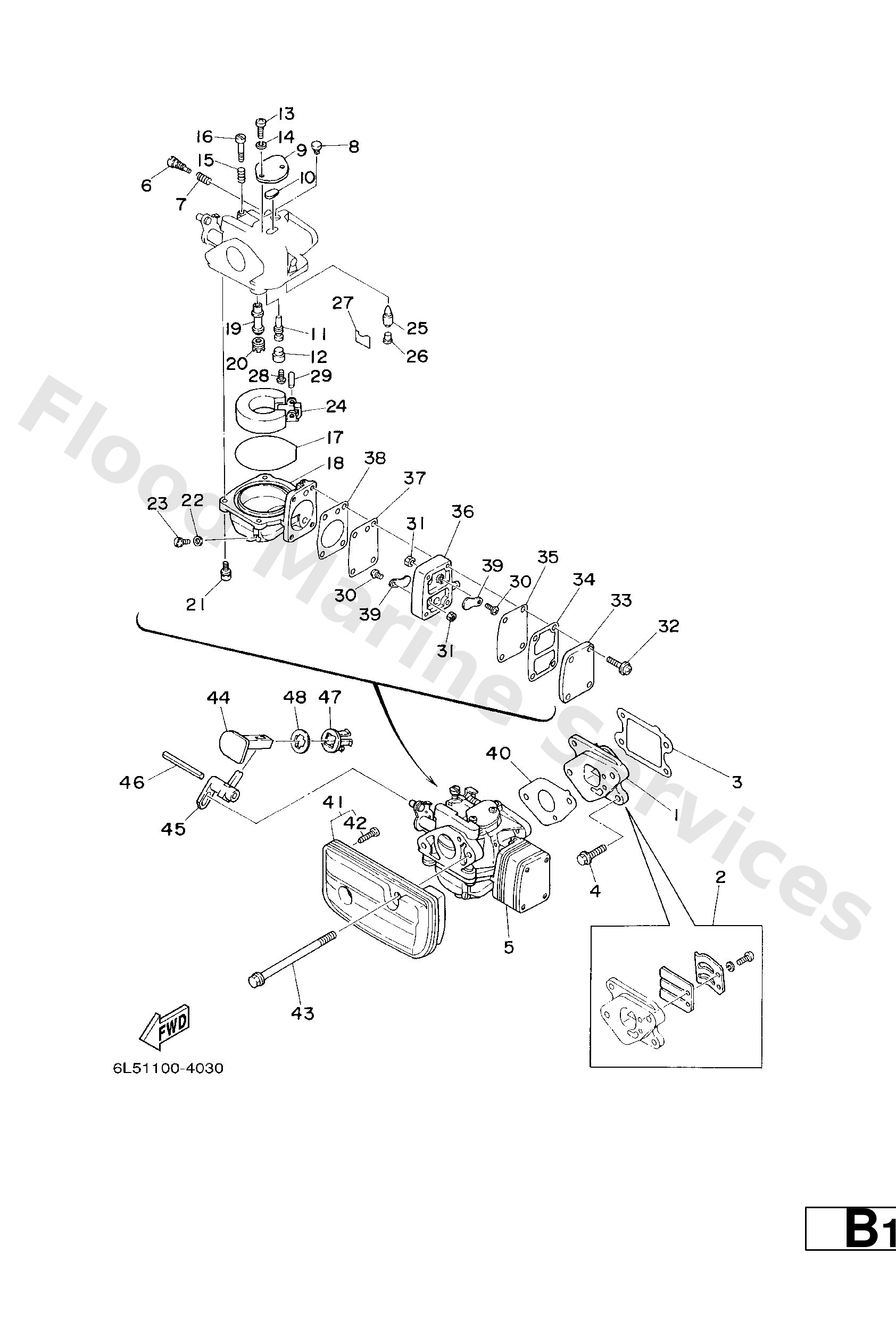

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6L5−13610−02
Reed valve assembly
Loading…
↗
2
6L5−W0004−02
Reed set
Loading…
↗
3
6L5−13621−A2
Gasket, valve seat
Loading…
↗
4
95895−06016
Bolt, flange deep recess
Loading…
↗
5
6L5−14301−03
Carburetor assembly 1
Loading…
↗
6
679−14923−00
Screw, pilot
Loading…
↗
7
679−14555−00
Spring
Loading…
↗
8
6G1−14966−00
Cap
Loading…
↗
9
6G1−14527−00
Plate
Loading…
↗
10
6G1−14126−00
Packing
Loading…
↗
11
6L5−14948−03
Jet (#40)
Loading…
↗
12
676−14966−00
Rubber cap
Loading…
↗
13
97880−04010
Screw, pan head (e56)
Loading…
↗
14
92990−04100
Ybs67-4 washer, spring
Loading…
↗
15
90501−10326
Spring coil(663)(carb)
Loading…
↗
16
63V−14523−00
Screw, stop
Loading…
↗
17
6G1−14984−00
Gasket, float chamber
Loading…
↗
18
6G1−14980−01
Body, float chamber
Loading…
↗
19
6L5−14947−01
Jet, needle
Loading…
↗
20
676−14943−14
Jet, main (#68)
Loading…
↗
21
97980−04114
Screw, pan head(ga5)
Loading…
↗
22
6G1−14398−00
Washer
Loading…
↗
23
6G1−14992−00
Screw, drain
Loading…
↗
24
6G1−14985−00
Float comp.
Loading…
↗
25
6G1−14546−00
Valve, needle
Loading…
↗
26
676−14186−00
Pin, valve
Loading…
↗
27
663−14159−00
Clip
Loading…
↗
28
98580−04008
Screw, pan head (713)
Loading…
↗
29
688−14548−00
Pin, arm
Loading…
↗
30
98580−03006
Screw, pan head(78g)
Loading…
↗
31
95380−03600
Nut (6g8)
Loading…
↗
32
97980−04125
Screw, with washer
Loading…
↗
33
6G1−24452−00
Cover, pump
Loading…
↗
34
6G1−24432−00
Packing
Loading…
↗
35
6G1−24471−00
Diaphragm
Loading…
↗
36
6G1−24412−01
Body 1
Loading…
↗
37
6G1−24411−00
Diaphragm
Loading…
↗
38
6G1−24431−01
Gasket, fuel pump 1
Loading…
↗
39
6L5−24421−00
Valve, check
Loading…
↗
40
6L5−14198−A1
Gasket
Loading…
↗
41
6L5−14440−00
Silencer assembly, intake
Loading…
↗
42
97780−40716
Screw, tapping(6l5)
Loading…
↗
43
95895−06095
Bolt, flange deep recess
Loading…
↗
44
6L5−41271−20
Knob, choke
Loading…
↗
45
6L5−41252−00
Lever, choke 1
Loading…
↗
46
91690−40048
Pin, spring (689)
Loading…
↗
47
689−41273−00
Grommet
Loading…
↗
48
6J8−41274−00
Grommet 2
Loading…
↗
