3AMH (2007)
INTAKE

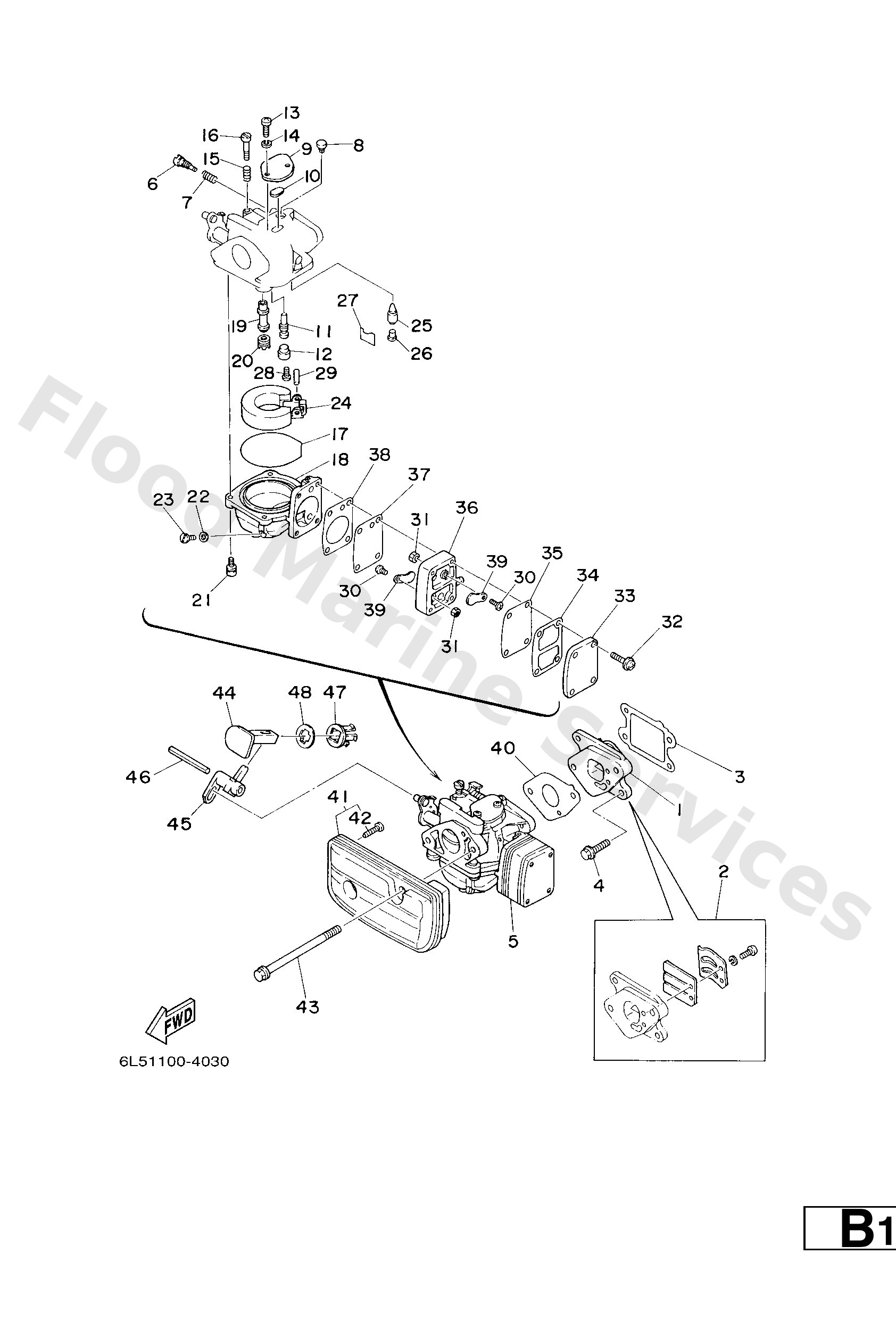

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6L51361002
Reed valve assembly
Loading…
↗
2
6L5W000402
Reed set
Loading…
↗
3
6L513621A2
Gasket, valve seat
Loading…
↗
4
9589506016
Bolt, flange deep recess
Loading…
↗
5
6L51430103
Carburetor assembly 1
Loading…
↗
6
6791492300
Screw, pilot
Loading…
↗
7
6791455500
Spring
Loading…
↗
8
6G11496600
Cap
Loading…
↗
9
6G11452700
Plate
Loading…
↗
10
6G11412600
Packing
Loading…
↗
11
6L51494803
Jet (#40)
Loading…
↗
12
6761496600
Rubber cap
Loading…
↗
13
9788004010
Screw, pan head (e56)
Loading…
↗
14
9299004100
Ybs67-4 washer, spring
Loading…
↗
15
9050110326
Spring coil(663)(carb)
Loading…
↗
16
63V1452300
Screw, stop
Loading…
↗
17
6G11498400
Gasket, float chamber
Loading…
↗
18
6G11498001
Body, float chamber
Loading…
↗
19
6L51494701
Jet, needle
Loading…
↗
20
6761494314
Jet, main (#68)
Loading…
↗
21
9798004114
Screw, pan head(ga5)
Loading…
↗
22
6G11439800
Washer
Loading…
↗
23
6G11499200
Screw, drain
Loading…
↗
24
6G11498500
Float comp.
Loading…
↗
25
6G11454600
Valve, needle
Loading…
↗
26
6761418600
Pin, valve
Loading…
↗
27
6631415900
Clip
Loading…
↗
28
9858004008
Screw, pan head (713)
Loading…
↗
29
6881454800
Pin, arm
Loading…
↗
30
9898003006
Screw, bind(6g1)
Loading…
↗
31
9538003600
Nut (6g8)
Loading…
↗
32
9798004125
Screw, with washer
Loading…
↗
33
6G12445200
Cover, pump
Loading…
↗
34
6G12443200
Packing
Loading…
↗
35
6G12447100
Diaphragm
Loading…
↗
36
6G12441201
Body 1
Loading…
↗
37
6G12441100
Diaphragm
Loading…
↗
38
6G12443101
Gasket, fuel pump 1
Loading…
↗
39
6L52442100
Valve, check
Loading…
↗
40
6L514198A1
Gasket
Loading…
↗
41
6L51444000
Silencer assembly, intake
Loading…
↗
42
9778040716
Screw, tapping(6l5)
Loading…
↗
43
9589506095
Bolt, flange deep recess
Loading…
↗
44
6L54127100
Knob, choke
Loading…
↗
45
6L54125200
Lever, choke 1
Loading…
↗
46
9169040048
Pin, spring (689)
Loading…
↗
47
6894127300
Grommet
Loading…
↗
48
6J84127400
Grommet 2
Loading…
↗
