40XMH (2005)
INTAKE

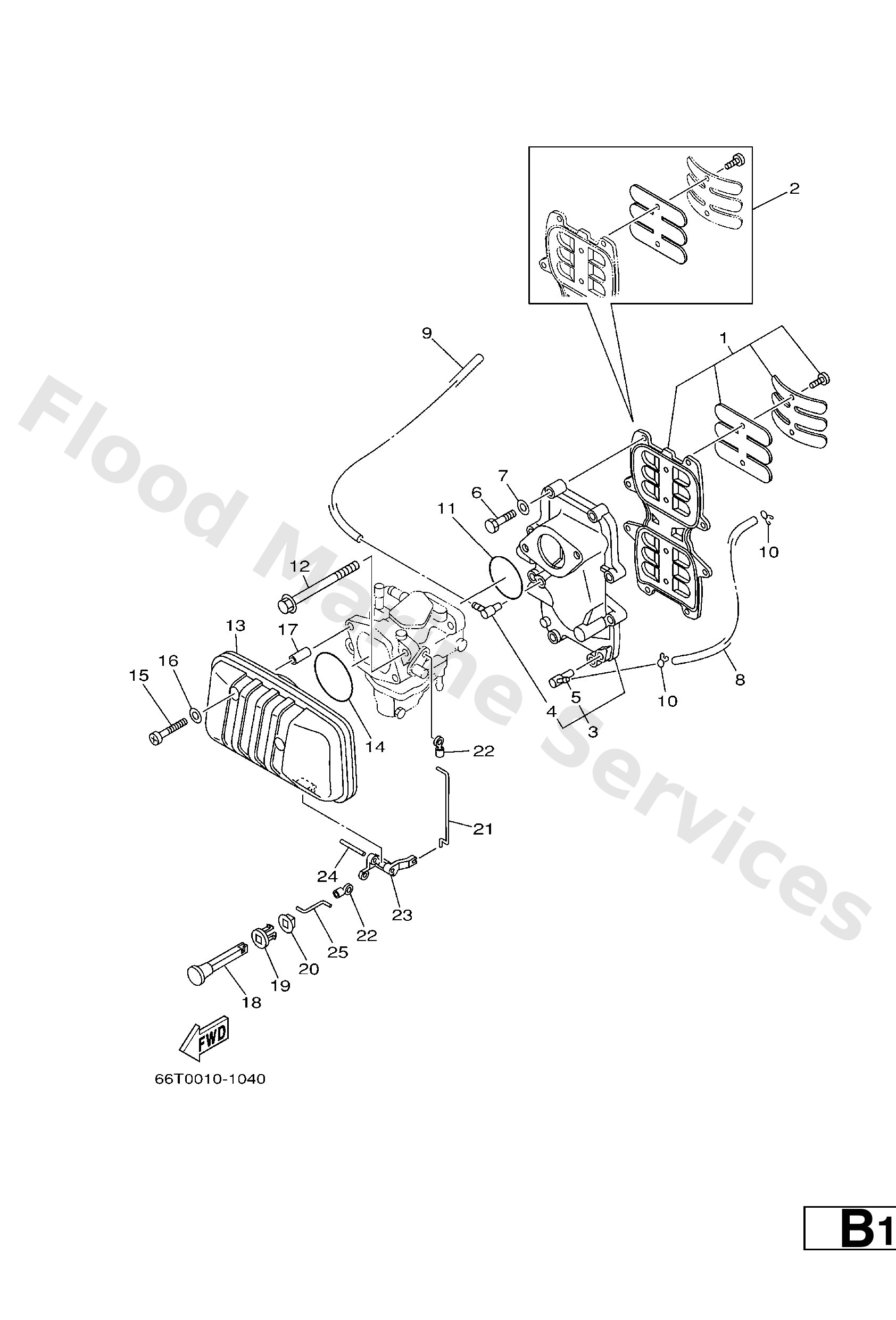

Diagram: INTAKE
Parts List
Reference
Description
Price
1
66T1361000
Reed valve assembly
Loading…
↗
2
66TW000400
Reed set
Loading…
↗
3
66T13641021S
Manifold 1
Loading…
↗
4
6E51355201
Nozzle
Loading…
↗
5
6501137201
Nipple, hose
Loading…
↗
6
9701306035
Bolt(3rv)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
9044507M24
Hose (l390)
Loading…
↗
9
9044507MA4
Hose (l390)
Loading…
↗
10
9046706016
Clip (655)
Loading…
↗
11
9321046M16
O-ring (688)
Loading…
↗
12
9011908M03
Bolt (689)
Loading…
↗
13
66T1444000
Silencer assembly, intake
Loading…
↗
14
9321054M54
O-ring (6g1)
Loading…
↗
15
9788506040
Screw pan head
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
9038706M80
Collar
Loading…
↗
18
6H44127101
Knob, choke
Loading…
↗
19
6894127300
Grommet
Loading…
↗
20
6J84127400
Grommet 2
Loading…
↗
21
66T4125600
Rod, choke 1
Loading…
↗
22
6614126202
Joint, choke lever
Loading…
↗
23
66T4125200
Lever, choke 1
Loading…
↗
24
9169040032
Pin, spring (6f5)
Loading…
↗
25
66T4125700
Rod, choke 2
Loading…
↗
