4ACMH (2011)
INTAKE

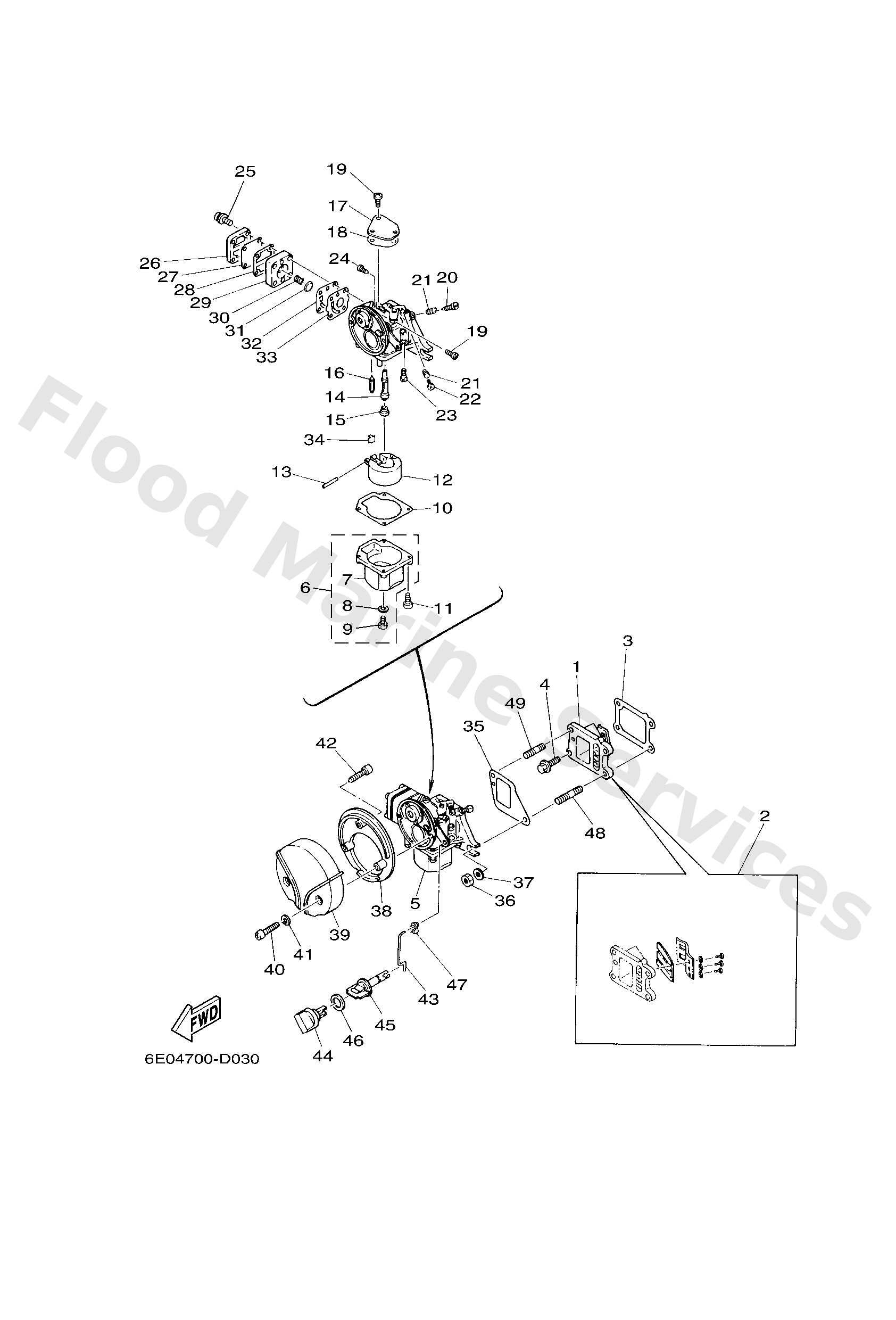

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6E01361000
Reed valve assembly
Loading…
↗
1
6J11361000
Reed valve assembly
Loading…
↗
2
6E0W000400
Reed set
Loading…
↗
2
6J1W000400
Reed set
Loading…
↗
3
6E013621A2
Gasket, valve seat
Loading…
↗
4
9589506016
Bolt, flange deep recess
Loading…
↗
5
6E01430105
Carburetor assembly 1
Loading…
↗
5
6E31430105
Carburetor assembly 1
Loading…
↗
6
6E01418000
Float chamber assembly
Loading…
↗
7
6E01438102
Body, float chamber
Loading…
↗
8
6461419801
Gasket
Loading…
↗
9
9789005006
Screw,panhead (eg9)
Loading…
↗
10
6E01438400
Gasket, float chamber
Loading…
↗
11
9798004116
Screw, with washer(61b)
Loading…
↗
12
6E71438501
Float
Loading…
↗
13
6471438600
Pin, float
Loading…
↗
14
6E01434101
Nozzle, main
Loading…
↗
14
6E31434102
Nozzle, main
Loading…
↗
15
6481434340
Jet, main (#80)
Loading…
↗
16
6F51439200
Valve, needle
Loading…
↗
17
6E01415700
Cover, plate
Loading…
↗
18
6E01422700
Gasket
Loading…
↗
19
9789004007
Screw, pan head (7h3)
Loading…
↗
20
6471432300
Screw, air adjusting
Loading…
↗
21
6461421201
Spring, pilot adjusting
Loading…
↗
22
6641432101
Screw, throttle
Loading…
↗
23
6481434223
Jet, pilot (#46)
Loading…
↗
23
6481434226
Jet, pilot (#52)
Loading…
↗
24
6471432600
Screw, guide
Loading…
↗
25
9798004120
Screw, pan head (7h3)
Loading…
↗
26
6E02441300
Cover, pump
Loading…
↗
27
6E02447100
Diaphragm
Loading…
↗
28
6E02443500
Gasket, cover pump
Loading…
↗
29
6E02441200
Body, pump
Loading…
↗
30
6E02442300
Spring
Loading…
↗
31
6E01434600
Plate
Loading…
↗
32
6E02441100
Diaphragm
Loading…
↗
33
6E02443400
Gasket, body pump
Loading…
↗
34
6E01415900
Clip
Loading…
↗
35
6E014198A0
Gasket
Loading…
↗
36
9538006700
Nut
Loading…
↗
37
9299506600
Washer, plain (646)
Loading…
↗
38
6E01441700
Cover 1
Loading…
↗
39
6E01441800
Cover 2
Loading…
↗
40
9788005025
Screw, panhead (a93)
Loading…
↗
41
9299005600
Washer, plain (646)
Loading…
↗
42
9778040720
Ybs81-420 screw,0.head tapping
Loading…
↗
43
6E04125600
Rod, choke link
Loading…
↗
44
6E04127101
Knob, choke
Loading…
↗
45
6E04127200
Knob, choke 2
Loading…
↗
46
9020212M16
Washer, plate (6e0)
Loading…
↗
47
6614126202
Joint, choke lever
Loading…
↗
48
9562706325
Bolt, stud(6e0)
Loading…
↗
49
9011606M08
Bolt, stud (689)
Loading…
↗
