50GETO (2002)
INTAKE

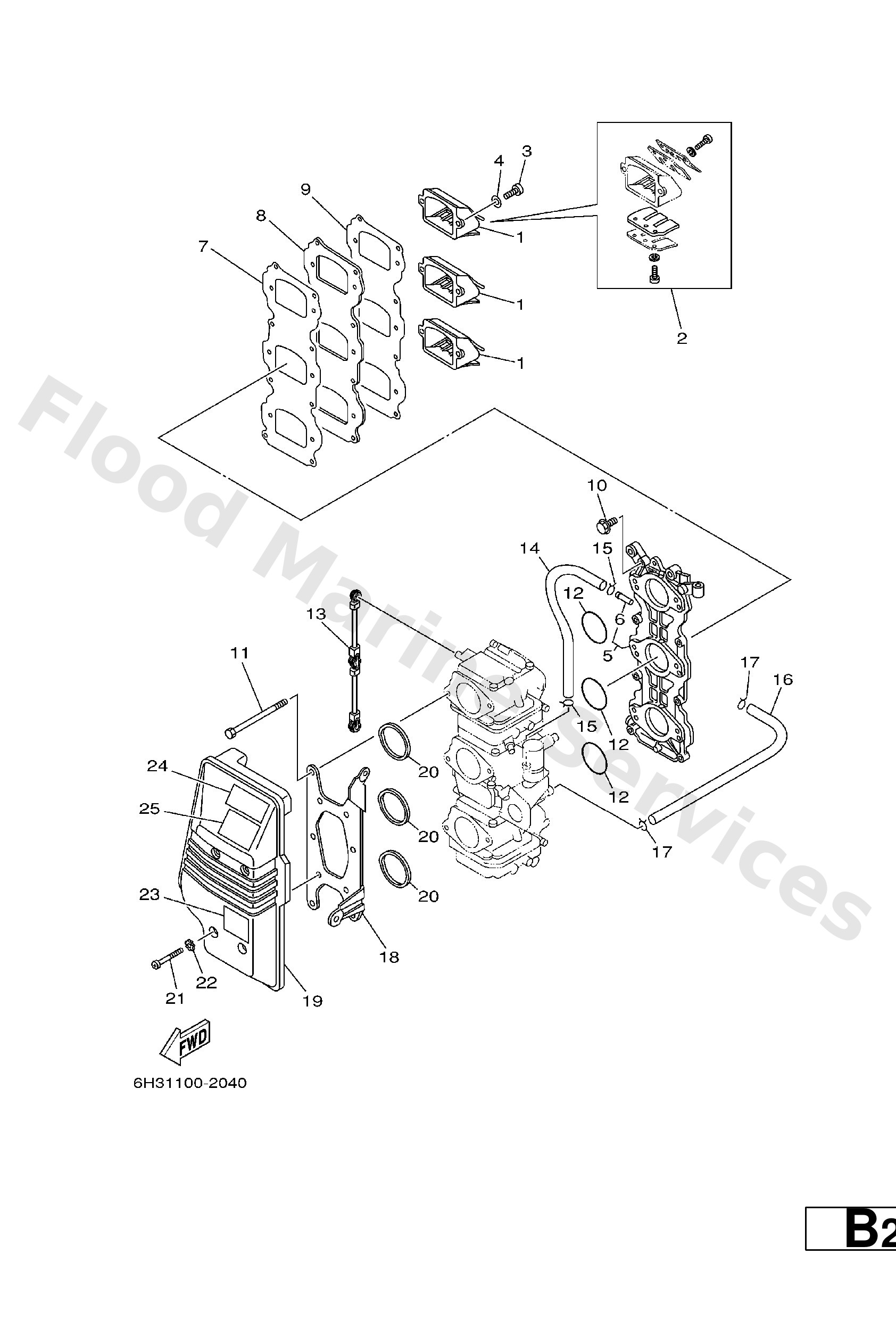

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6H2--13610--00
Reed valve assembly
Loading…
↗
1
6H3--13610--00
Reed valve assembly
Loading…
↗
2
688--W0004--00
Reed set
Loading…
↗
3
97880--05016
Screw, pan head(6b0)
Loading…
↗
4
92990--05600
Washer, plain (646)
Loading…
↗
5
6H3136411394
Manifold, intake 1
Loading…
↗
5
62F136411094
Manifold 1
Loading…
↗
6
6H1--14485--00
Pipe, joint
Loading…
↗
7
6H3--13621--A1
Gasket, valve seat
Loading…
↗
8
6H3136240094
Plate, reed valve
Loading…
↗
9
6H3--13622--A1
Gasket, valve seat
Loading…
↗
10
90119--06MA3
Bolt, with washer
Loading…
↗
11
97095--06095
Bolt, hexagon deep recess
Loading…
↗
12
6H4--14198--01
Gasket
Loading…
↗
12
93210--39ME4
O-ring(6h2)
Loading…
↗
13
6H3--41217--00
Rod, accel lever
Loading…
↗
14
90445--07255
Hose (l200)
Loading…
↗
15
90467--06016
Clip (655)
Loading…
↗
16
6H3--14349--00
Pipe
Loading…
↗
17
90467--08004
Clip, pipe 6162435600
Loading…
↗
18
6H31441310
-
Loading…
↗
19
6H3--14440--02
Silencer assembly, intake
Loading…
↗
20
6H3--14457--01
Seal
Loading…
↗
21
97885--06045
Screw, pan head(6b0)
Loading…
↗
22
90209--06M05
Washer (688)
Loading…
↗
23
6H1--85711--60
Mark, caution
Loading…
↗
24
6A1--83625--41
Mark 5
Loading…
↗
25
6A1--83625--51
Mark 5
Loading…
↗
