55BED (2005)
INTAKE

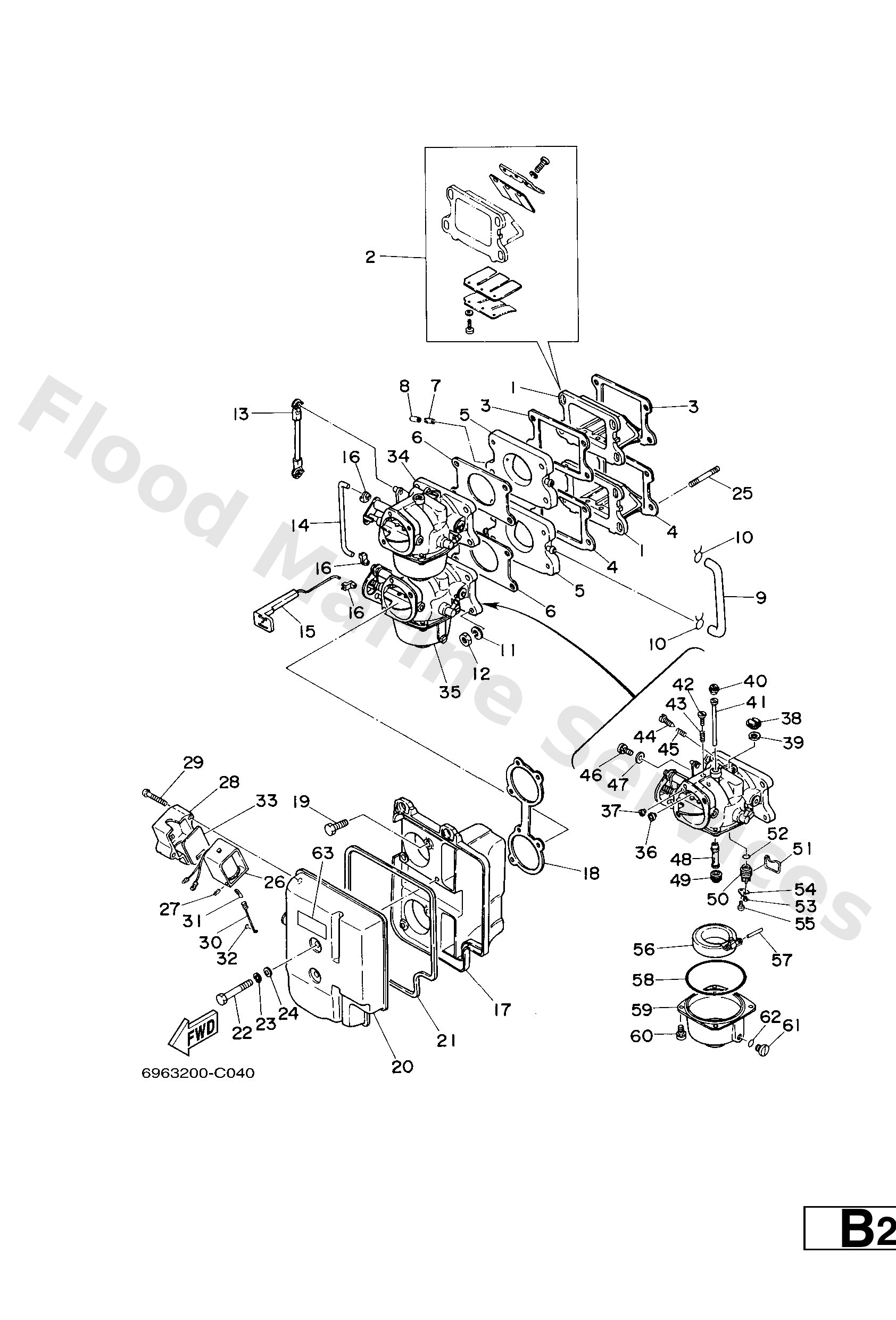

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6961361000
Reed valve ass'y
Loading…
↗
1
6971361000
Reed valve ass'y
Loading…
↗
1
6981361000
Reed valve ass'y
Loading…
↗
2
692W000400
Reed set
Loading…
↗
2
688W000400
Reed set
Loading…
↗
3
66313621A0
Packing, valve seat 1
Loading…
↗
4
66313622A0
Packing, valve seat 2
Loading…
↗
5
663136410294
-
Loading…
↗
5
670136410194
-
Loading…
↗
6
66314198A0
Gasket
Loading…
↗
7
6241448500
Pipe, joint
Loading…
↗
8
6471439560
Cap,over flow pipe
Loading…
↗
9
6632432100
Hose
Loading…
↗
10
9046708004
Clip, pipe 6162435600
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9538006600
Nut(661)
Loading…
↗
13
6974121701
Rod, accel. lever
Loading…
↗
14
6634125702
Rod, choke 2
Loading…
↗
15
6634125601
Rod, choke 1
Loading…
↗
15
6634125641
Rod, choke 1
Loading…
↗
16
6614126202
Joint, choke lever
Loading…
↗
17
697144170094
Cover 1
Loading…
↗
18
66314483A0
Gasket, plate
Loading…
↗
19
9701306025
Bolt(62y)
Loading…
↗
20
697144180094
Cover 2
Loading…
↗
21
6971441600
Gasket, air cleaner
Loading…
↗
22
9709506045
Bolt, hexagon
Loading…
↗
24
9299506600
Washer, plain (646)
Loading…
↗
25
9011606176
Stud(663)
Loading…
↗
26
6638611002
Solenoid coil assembly
Loading…
↗
27
9169030010
Pin, spring (663)
Loading…
↗
28
6638611500
Holder, solenoid
Loading…
↗
29
9788005030
Ybs86-530 screw,panhead
Loading…
↗
30
6638611601
Wire, pull
Loading…
↗
31
6768611700
Hook, wire pull
Loading…
↗
32
9321003261
O-ring (663)
Loading…
↗
33
6638611800
Damper
Loading…
↗
34
6A31450104
#1
Carburetor assembly 1
Loading…
↗
34
6961450104
#1
Carburetor assembly 1
Loading…
↗
34
6971450104
#1
Carburetor assembly 1
Loading…
↗
35
6971450204
#2
Carburetor assembly 2
Loading…
↗
35
6A31450204
#2
Carburetor assembly
Loading…
↗
35
6961450204
#2
Carburetor assembly
Loading…
↗
36
6631495027
Pilot, air jet(#100)
Loading…
↗
36
6631495029
Pilot, air jet (#110)
Loading…
↗
36
6631495026
Pilot, air jet (#98)
Loading…
↗
37
6631494532
Air jet, main (#125)
Loading…
↗
37
6631494534
Air jet, main (#135)
Loading…
↗
37
6631494543
Jet (#180)
Loading…
↗
38
6971499100
Plug, screw
Loading…
↗
39
6791455700
Washer (carb)
Loading…
↗
40
6631456701
Screw, plug
Loading…
↗
41
6631494219
Jet, pilot (#80)
Loading…
↗
41
6631494222
Jet, pilot (#88)
Loading…
↗
42
63V1452300
#2
Screw, stop
Loading…
↗
43
9050110326
#2
Spring coil(663)(carb)
Loading…
↗
44
6631492300
Screw, adjust
Loading…
↗
45
9050108214
Spring, compression
Loading…
↗
46
6K51459200
#1
Screw
Loading…
↗
47
9020105652
#1
Washer, plate(65j)
Loading…
↗
48
6F01494700
Nozzle, main
Loading…
↗
48
6631494701
Nozzle, main
Loading…
↗
49
6631494339
Jet, main (#160)
Loading…
↗
49
6631494340
Jet, main (#165)
Loading…
↗
49
6631494343
Jet, main(#180)
Loading…
↗
50
6961459001
Needle valve assembly
Loading…
↗
51
6631415900
Clip
Loading…
↗
52
9321007229
O-ring (371)
Loading…
↗
53
8101418600
Pin, valve
Loading…
↗
54
3711491960
Clip
Loading…
↗
55
9858004006
Screw, pan head (7h3)
Loading…
↗
56
6F01498500
Float comp.
Loading…
↗
57
6631454800
Pin, arm
Loading…
↗
58
9321064272
O-ring (663) (carb)
Loading…
↗
59
6631498000
Body, float chamber
Loading…
↗
60
9798004112
Screw, pan head (686)
Loading…
↗
61
6H31499200
Screw, drain
Loading…
↗
62
9321004230
O-ring (371)
Loading…
↗
63
6A18362541
Mark 5
Loading…
↗
