6DMH (2007)
INTAKE

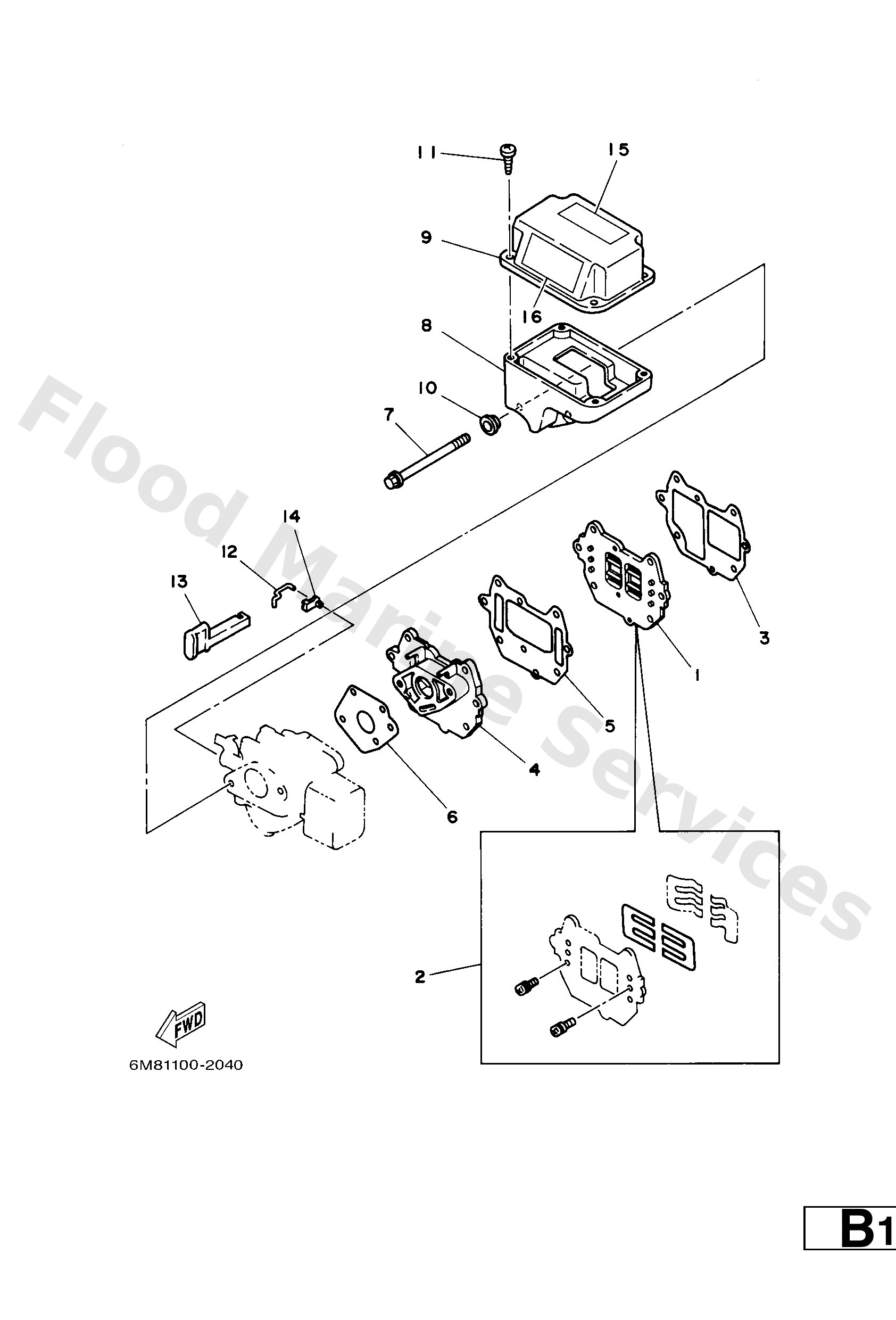

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6G11361001
Reed valve assembly
Loading…
↗
2
6G1W000400
Reed set
Loading…
↗
3
6G113621A1
Gasket, valve seat
Loading…
↗
4
6N0E36410094
Manifold, intake 1
Loading…
↗
5
6G113645A1
Gasket, intake manifold
Loading…
↗
6
6G114198A1
Gasket
Loading…
↗
7
9589506085
Bolt, flange(6g1)
Loading…
↗
8
6M8E441700
Cover set
Loading…
↗
9
6M8E441800
Cover 2
Loading…
↗
10
9038706M70
Collar (6h5)
Loading…
↗
11
9778050514
Screw, panhead tapping (682)
Loading…
↗
12
6G14125600
Rod, choke link
Loading…
↗
13
6G14127100
Knob, choke 1
Loading…
↗
14
6614126202
Joint, choke lever
Loading…
↗
15
60RH362540
-
Loading…
↗
16
60RH362550
-
Loading…
↗
