75AED (2007)
INTAKE

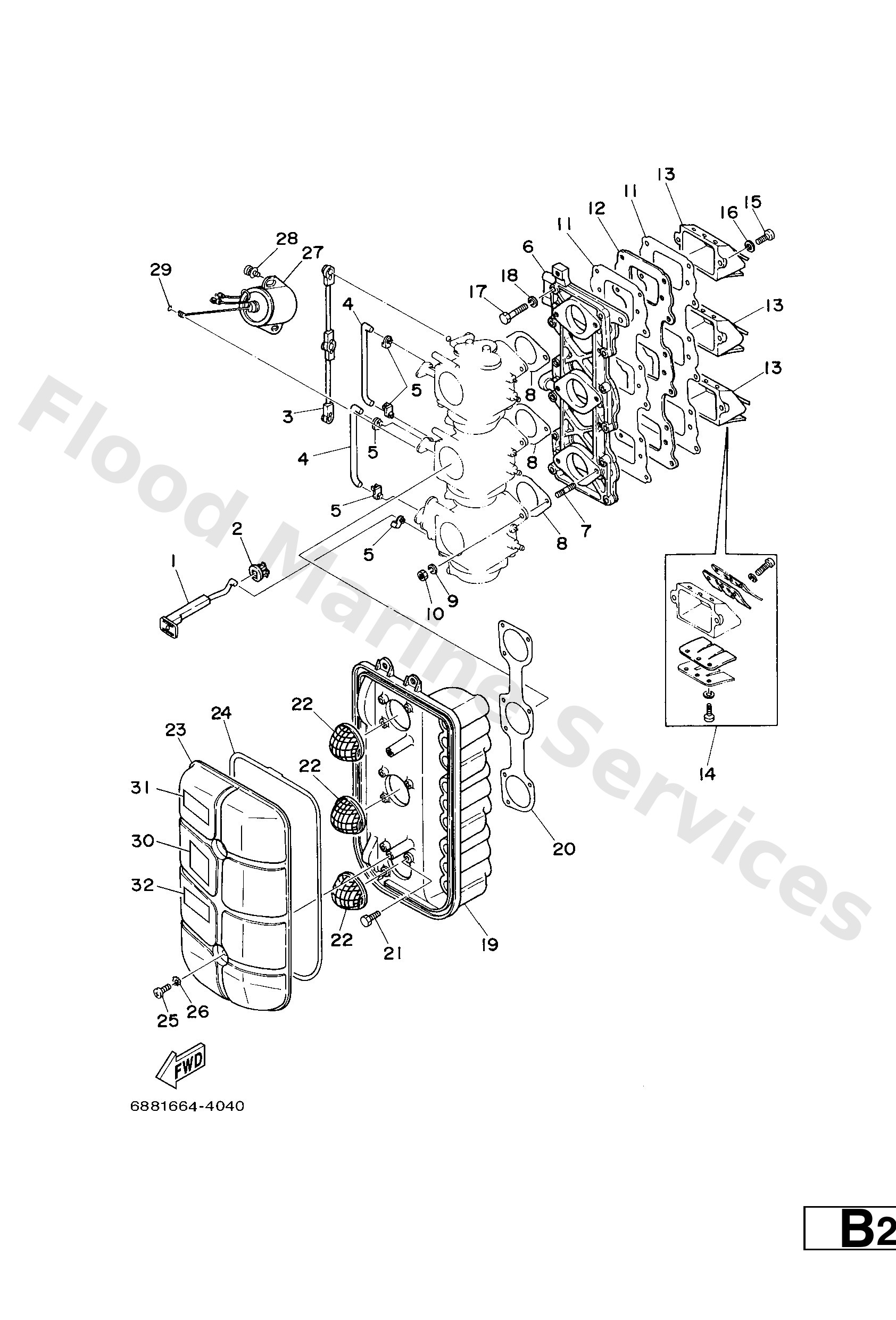

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6924125600
Rod, choke 1
Loading…
↗
2
6894127300
Grommet
Loading…
↗
3
6884121701
Rod, accel. lever
Loading…
↗
4
6884125701
Rod, choke 2
Loading…
↗
5
6614126202
Joint, choke lever
Loading…
↗
6
688136410094
Intake, manifold 1
Loading…
↗
7
9011606122
Bolt, stud(6e5)
Loading…
↗
8
68814198A2
Gasket
Loading…
↗
9
9299506100
Washer(6a1)
Loading…
↗
10
9538006600
Nut(661)
Loading…
↗
11
68813621A1
Gasket, valve seat
Loading…
↗
12
6881362400
Plate, reed valve
Loading…
↗
13
6881361000
Reed valve assembly
Loading…
↗
14
688W000400
Reed set
Loading…
↗
15
9788005020
Screw, pan head (e22)
Loading…
↗
16
9299005100
Ybs67-5 washer, spring
Loading…
↗
17
9701306030
Bolt
Loading…
↗
18
9290306100
Washer(6a1)
Loading…
↗
19
688144170194
Cover 1
Loading…
↗
20
68814483A0
Gasket
Loading…
↗
21
9701306018
Bolt, hexagon
Loading…
↗
22
6881448100
Cap, carburetor
Loading…
↗
23
6881441801
Cover 2
Loading…
↗
24
6881441601
Gasket, air cleaner
Loading…
↗
25
9788506016
Screw, pan head(6b0)
Loading…
↗
26
9020906M05
Washer (688)
Loading…
↗
27
6888611001
Solenoid
Loading…
↗
28
9015906M19
Screw, with washer(688)
Loading…
↗
29
9321003261
O-ring (663)
Loading…
↗
30
6H11448800
Label, caution
Loading…
↗
31
6A18362541
Mark 5
Loading…
↗
32
6A18362551
Mark 5
Loading…
↗
