85AET (2003)
INTAKE

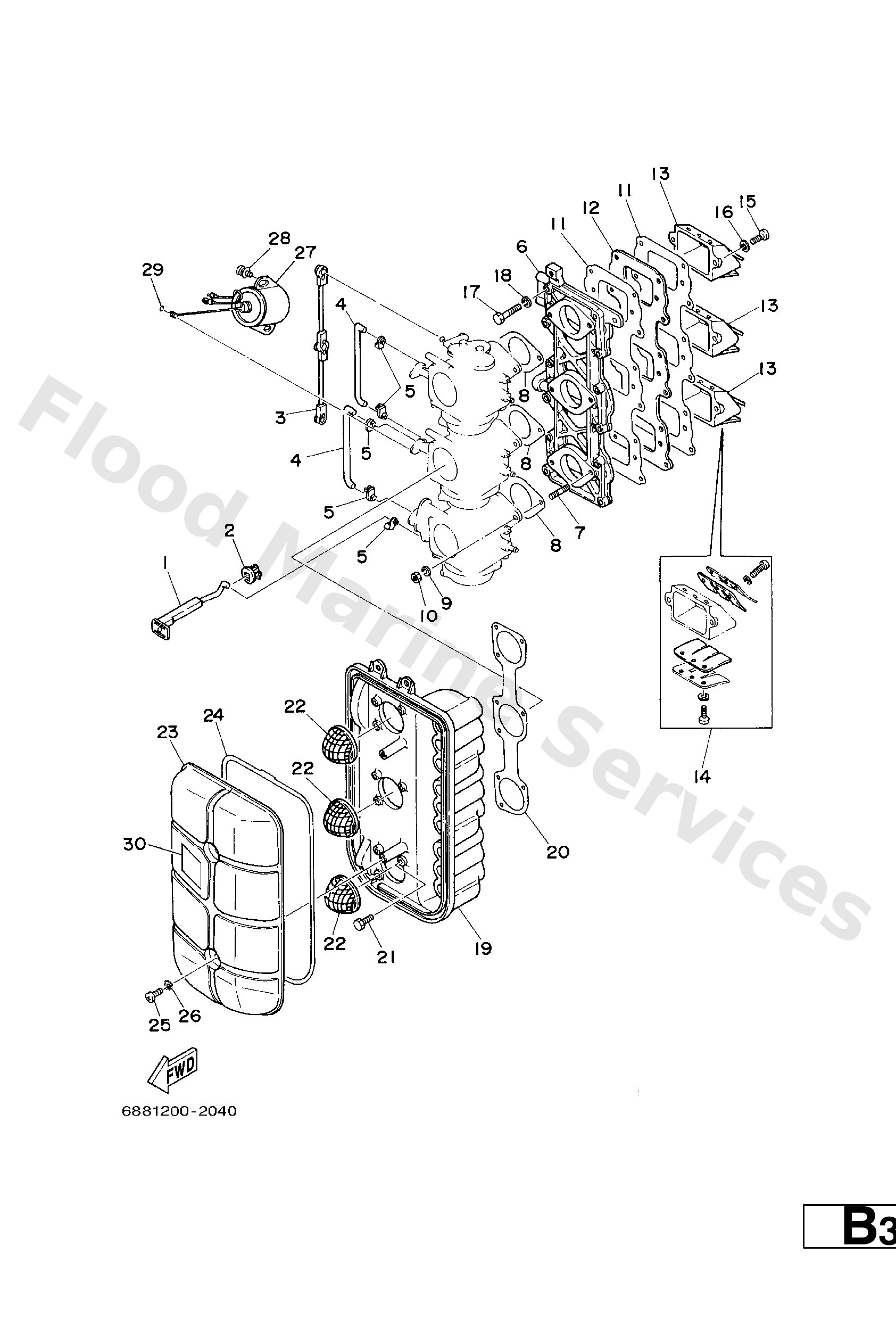

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6924125600
Rod, choke 1
Loading…
↗
2
689--41273--00
Grommet
Loading…
↗
3
688--41217--01
Rod, accel. lever
Loading…
↗
4
6884125701
Rod, choke 2
Loading…
↗
5
661--41262--02
Joint, choke lever
Loading…
↗
6
688136410094
Intake, manifold 1
Loading…
↗
7
9011606122
Bolt, stud(6e5)
Loading…
↗
8
68814198A2
Gasket
Loading…
↗
9
92995--06100
Washer(6a1)
Loading…
↗
10
95380--06600
Nut(661)
Loading…
↗
11
688--13621--A1
Gasket, valve seat
Loading…
↗
12
688--13624--00
Plate, reed valve
Loading…
↗
13
688--13610--00
85A
Reed valve assembly
Loading…
↗
13
6921361000
75A
Reed valve assembly
Loading…
↗
14
688--W0004--00
FOR 688−13610−00
Reed set
Loading…
↗
14
692W000400
FOR 692−13610−00
Reed set
Loading…
↗
15
97880--05020
Screw, pan head (e22)
Loading…
↗
16
92990--05100
Ybs67-5 washer, spring
Loading…
↗
17
97013--06030
Bolt
Loading…
↗
18
92903--06100
Washer(6a1)
Loading…
↗
19
688144170194
Cover 1
Loading…
↗
20
68814483A0
Gasket
Loading…
↗
21
97013--06018
Bolt, hexagon
Loading…
↗
22
6881448100
Cap, carburetor
Loading…
↗
23
6881441801
Cover 2
Loading…
↗
24
6881441601
Gasket, air cleaner
Loading…
↗
25
97885--06016
Screw, pan head(6b0)
Loading…
↗
26
90209--06M05
Washer (688)
Loading…
↗
27
6888611001
Solenoid
Loading…
↗
28
9015906M19
Screw, with washer(688)
Loading…
↗
29
93210--03261
O-ring (663)
Loading…
↗
30
6H1--14488--00
Label, caution
Loading…
↗
