Yamaha Outboard Parts - INTAKE - 8CWH (2002) | Flood Marine

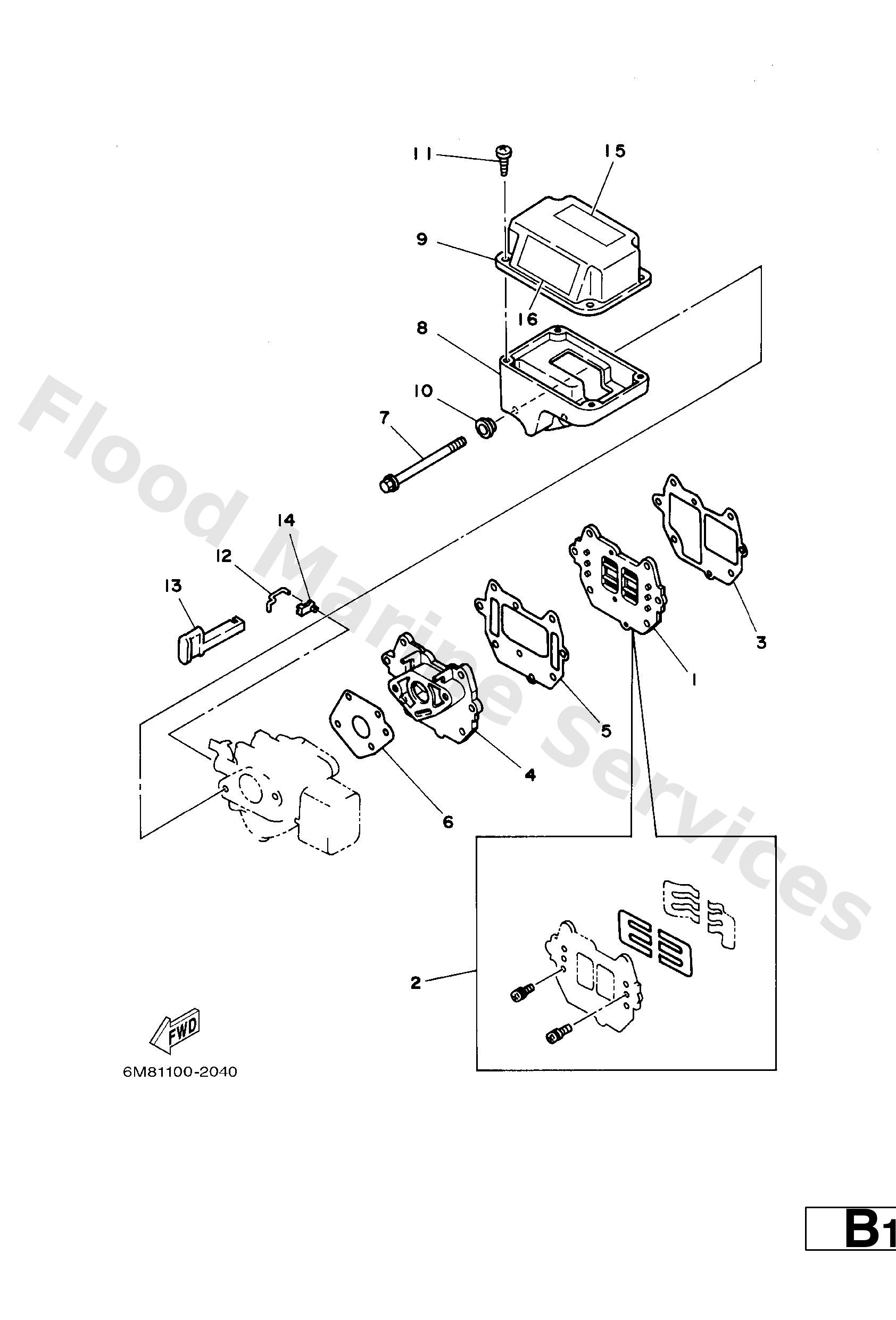

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
6G1--13610--01
Reed valve assembly
Loading…

↗
2
6G1--W0004--00
Reed set
Loading…

↗
3
6G1--13621--A1
Gasket, valve seat
Loading…

↗
4
6N0--E3641--00--94
Manifold, intake 1
Loading…

↗
5
6G1--13645--A1
Gasket, intake manifold
Loading…

↗
6
6G1--14198--A1
Gasket
Loading…

↗
7
95895--06085
Bolt, flange(6g1)
Loading…

↗
8
6M8--E4417--00
Cover set
Loading…

↗
9
6M8--E4418--00
Cover 2
Loading…

↗
10
90387--06M70
Collar (6h5)
Loading…

↗
11
97780--50514
Screw, panhead tapping (682)
Loading…

↗
12
6G1--41256--00
Rod, choke link
Loading…

↗
13
6G1--41271--00
Knob, choke 1
Loading…

↗
14
661--41262--02
Joint, choke lever
Loading…

↗
15
6A1--83625--41
Mark 5
Loading…

↗
16
6A1--83625--51
Mark 5
Loading…

↗
