9.9FMH (2017)
INTAKE

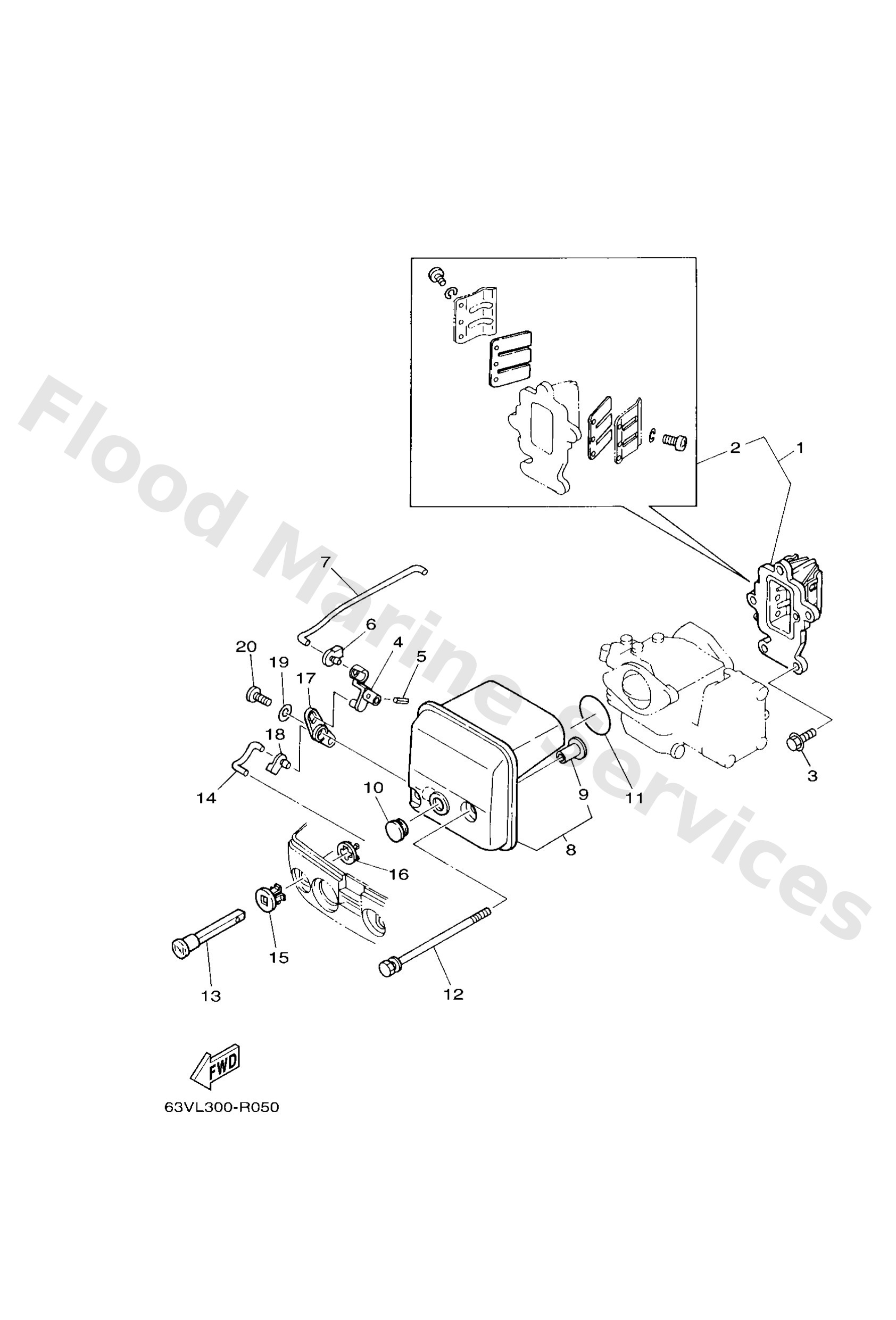

Diagram: INTAKE
Parts List
Reference
Description
Price
1
63W1361000
Reed valve assembly
Loading…
↗
1
63V1361010
Reed valve assembly
Loading…
↗
2
682W000400
Reed set
Loading…
↗
3
9759506520
Bolt(7u8)
Loading…
↗
4
63V4125300
Lever, choke
Loading…
↗
5
9169020010
Pin, spring
Loading…
↗
6
63V4126200
Joint, choke lever
Loading…
↗
7
63V4125700
Rod, choke 2
Loading…
↗
8
63V14440A0
Silencer assembly, intake
Loading…
↗
9
9038706M15
Collar(6g8)
Loading…
↗
10
9048012M25
Grommet (6e9)
Loading…
↗
11
9321035M86
O-ring(6l2)
Loading…
↗
12
9011906M94
Bolt, with washer
Loading…
↗
13
6H44127102
Knob, choke
Loading…
↗
14
63V4125600
Rod, choke 1
Loading…
↗
15
6894127300
Grommet
Loading…
↗
16
6J84127400
Grommet 2
Loading…
↗
17
63V4125200
Lever, choke 1
Loading…
↗
18
6614126202
Joint, choke lever
Loading…
↗
19
9020105M09
Washer, plate(63v)
Loading…
↗
20
9016405M03
Screw, tapping(6g8)
Loading…
↗
