90AETO (2011)
INTAKE

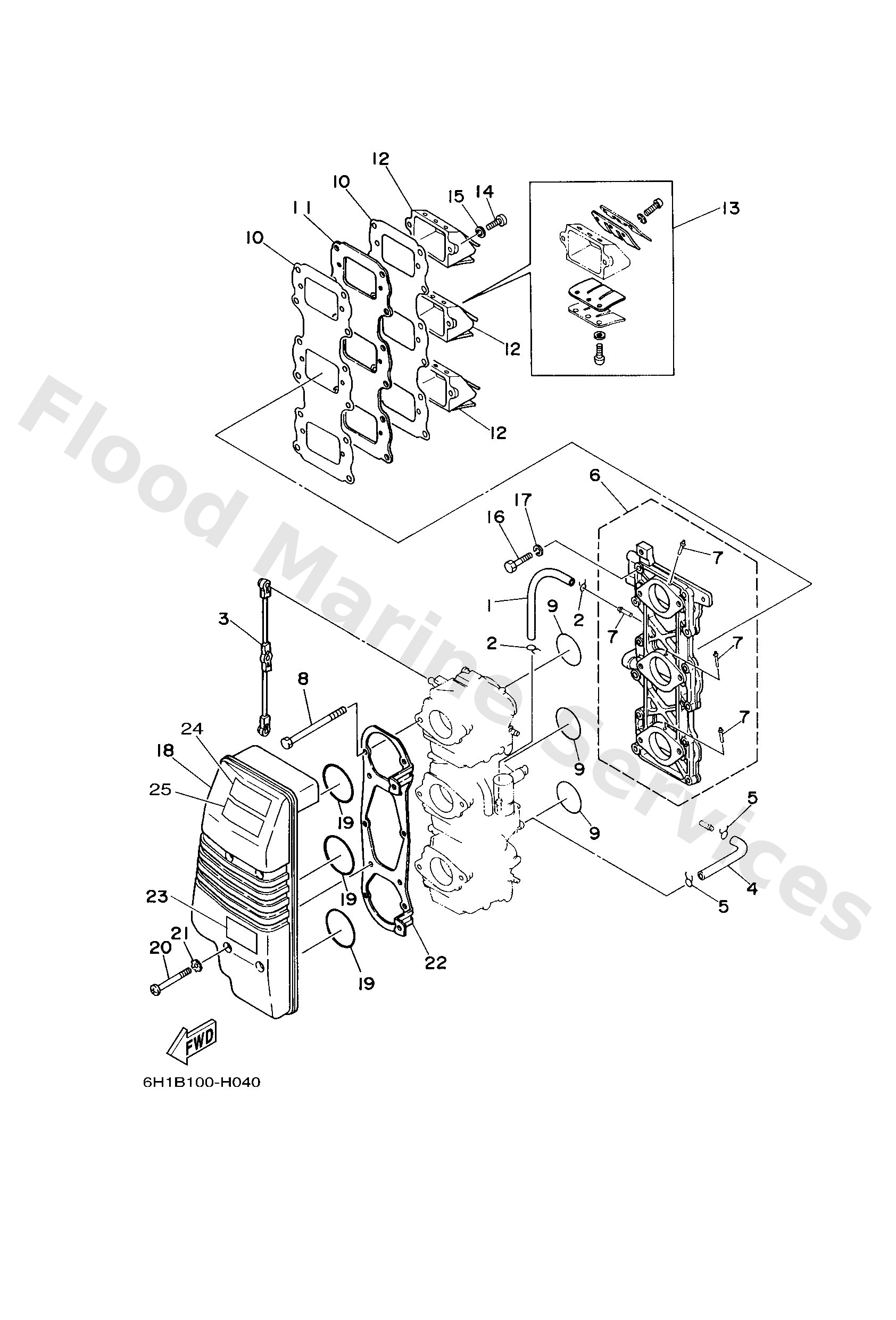

Diagram: INTAKE
Parts List
Reference
Description
Price
1
9044507M23
Hose (l570)
Loading…
↗
2
9046706016
Clip (655)
Loading…
↗
3
6884121701
Rod, accel. lever
Loading…
↗
4
6H31434900
Pipe
Loading…
↗
5
9046708004
Clip, pipe 6162435600
Loading…
↗
6
6H1136410294
Manifold, intake 1 & hose
Loading…
↗
7
6H11448500
Pipe, joint
Loading…
↗
8
9709506095
Bolt, hexagon deep recess
Loading…
↗
9
9321039ME4
O-ring(6h2)
Loading…
↗
10
68813621A1
Gasket, valve seat
Loading…
↗
11
6881362400
Plate, reed valve
Loading…
↗
12
6881361000
Reed valve assembly
Loading…
↗
13
688W000400
Reed set
Loading…
↗
14
9788005020
Screw, pan head (e22)
Loading…
↗
15
9299005100
Ybs67-5 washer, spring
Loading…
↗
16
9701306030
Bolt
Loading…
↗
17
9290306100
Washer(6a1)
Loading…
↗
18
6H11444002
Silencer assembly
Loading…
↗
19
9321046044
O-ring
Loading…
↗
20
9788506050
Screw pan head
Loading…
↗
21
9020906M05
Washer (688)
Loading…
↗
22
6H11441302
Stay
Loading…
↗
23
6H18571160
Mark, caution
Loading…
↗
24
6AH8199440
Label, safety
Loading…
↗
25
6AH8199450
Label, safety
Loading…
↗
