E40GMH (2003)
INTAKE

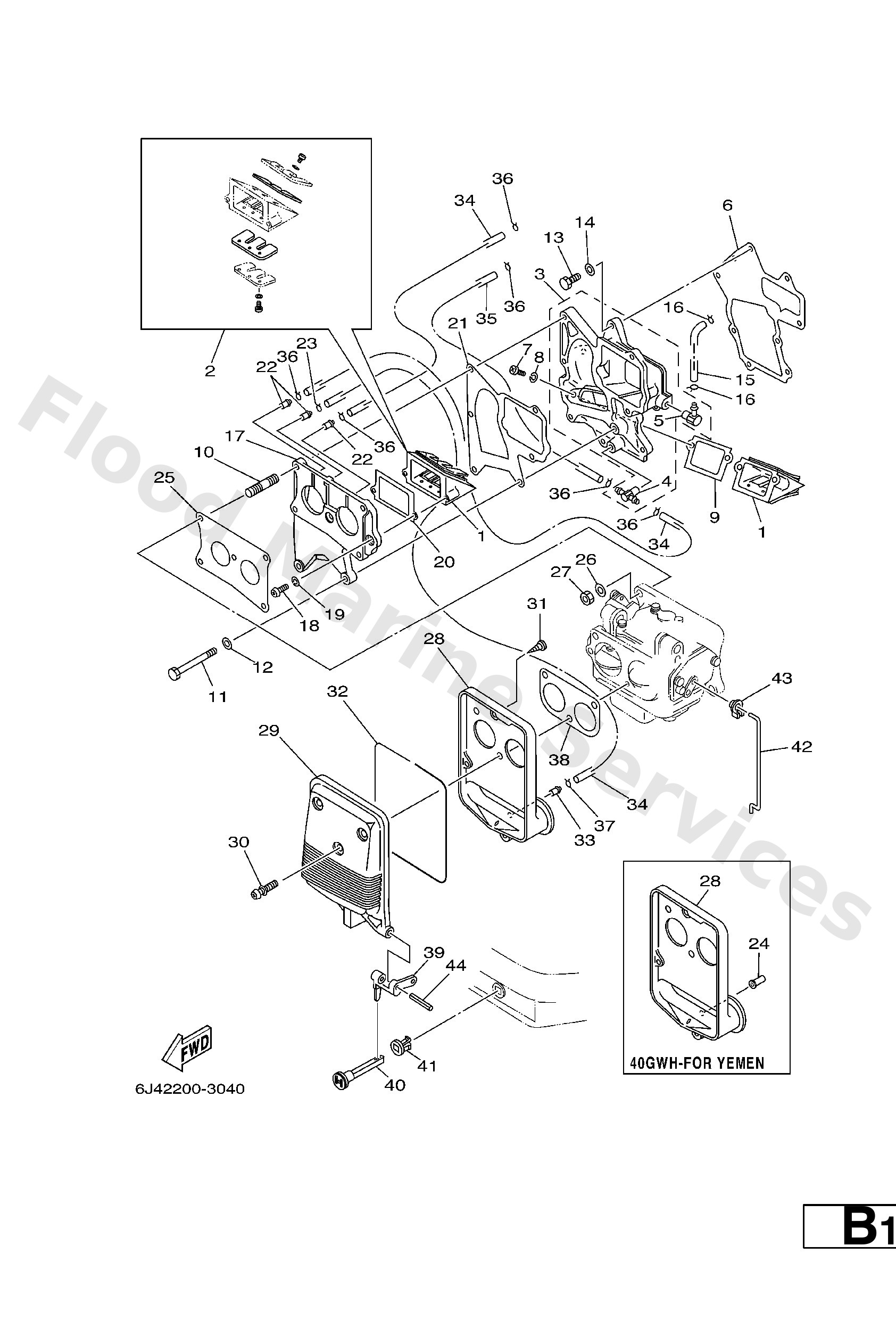

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6F6−13610−00
Reed valve ass'y
Loading…
↗
2
692−W0004−00
Reed set
Loading…
↗
3
6F6−13641−00−1S
Manifold 1
Loading…
↗
4
6F6−11370−01
Check valve assembly
Loading…
↗
5
650−11370−01
Check valve assembly
Loading…
↗
6
6F5−13646−A2
Gasket, manifold 2
Loading…
↗
7
97880−05014
Screw, pan head(3yl)
Loading…
↗
8
92990−05100
Ybs67-5 washer, spring
Loading…
↗
9
6F5−13621−A1
Gasket, valve seat
Loading…
↗
10
90116−06M17
Bolt, stud (6f5)
Loading…
↗
11
97013−06065
Bolt(62j)
Loading…
↗
12
92903−06600
Washer, plain (646)
Loading…
↗
13
97013−06025
Bolt(62y)
Loading…
↗
15
90445−07254
Hose (l200)
Loading…
↗
16
90467−06016
Clip (655)
Loading…
↗
17
6F6−13643−01−1S
Cover, manifold
Loading…
↗
17
6J4−13643−00−1S
40J−FOR CHINA
Cover, Manifold
Loading…
↗
21
6F5−13645−A1
Gasket, manifold 1
Loading…
↗
22
624−14485−00
Pipe, joint
Loading…
↗
24
647−14395−60
40GWH−FOR YEMEN
Cap,over flow pipe
Loading…
↗
25
6F5−14198−A1
Gasket
Loading…
↗
26
92995−06600
Washer, plain (646)
Loading…
↗
27
95380−06600
Nut(661)
Loading…
↗
28
6F5−14417−00
Cover 1
Loading…
↗
29
6F5−14418−00
Cover 2
Loading…
↗
30
90159−06M01
Screw, with washer (6f5)
Loading…
↗
31
97780−50716
Screw, Tapping
Loading…
↗
32
6F5−14476−00
Seal
Loading…
↗
34
90445−07240
40GWH−FOR YEMEN
Hose (l390)
Loading…
↗
35
90445−07M24
Hose (l390)
Loading…
↗
38
6F5−14483−00
Gasket, plate
Loading…
↗
39
6F5−41252−00
Lever, choke
Loading…
↗
40
682−41271−00
Knob, choke
Loading…
↗
41
689−41273−00
Grommet
Loading…
↗
42
6F6−41256−00
Rod, choke link
Loading…
↗
43
661−41262−02
Joint, choke lever
Loading…
↗
44
91690−40032
Pin, spring (6f5)
Loading…
↗
