E40XMH (2002)
INTAKE

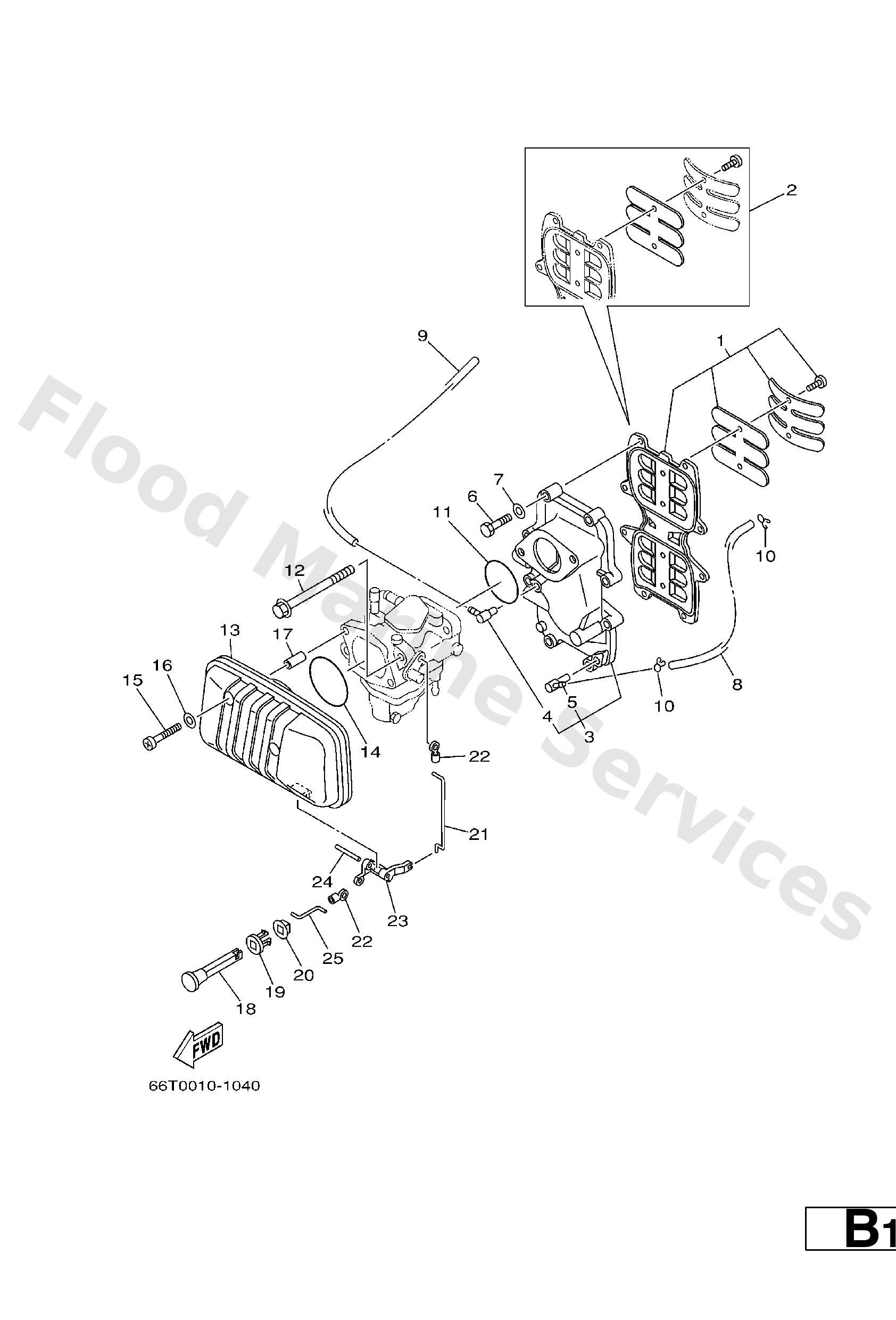

Diagram: INTAKE
Parts List
Reference
Description
Price
1
66T--13610--00
Reed valve assembly
Loading…
↗
2
66T--W0004--00
Reed set
Loading…
↗
3
66T--13641--02--1S
Manifold 1
Loading…
↗
4
6E5--13552--00
Nozzle
Loading…
↗
5
650--11372--00
Nipple, hose
Loading…
↗
6
97013--06035
Bolt(3rv)
Loading…
↗
7
92903--06600
Washer, plain (646)
Loading…
↗
8
90445--07M24
Hose (l390)
Loading…
↗
9
90445--07MA4
Hose (l390)
Loading…
↗
10
90467--06016
Clip (655)
Loading…
↗
11
93210--46M16
O-ring (688)
Loading…
↗
12
90119--08M03
Bolt (689)
Loading…
↗
13
66T--14440--00
Silencer assembly, intake
Loading…
↗
14
93210--54M54
O-ring (6g1)
Loading…
↗
15
97885--06040
Screw pan head
Loading…
↗
16
92995--06600
Washer, plain (646)
Loading…
↗
17
90387--06M80
Collar
Loading…
↗
18
6H4--41271--01
Knob, choke
Loading…
↗
19
689--41273--00
Grommet
Loading…
↗
20
6J8--41274--00
Grommet 2
Loading…
↗
21
66T--41256--00
Rod, choke 1
Loading…
↗
22
661--41262--02
Joint, choke lever
Loading…
↗
23
66T--41252--00
Lever, choke 1
Loading…
↗
24
91690--40032
Pin, spring (6f5)
Loading…
↗
25
66T--41257--00
Rod, choke 2
Loading…
↗
