E60HMHD (2018)
INTAKE

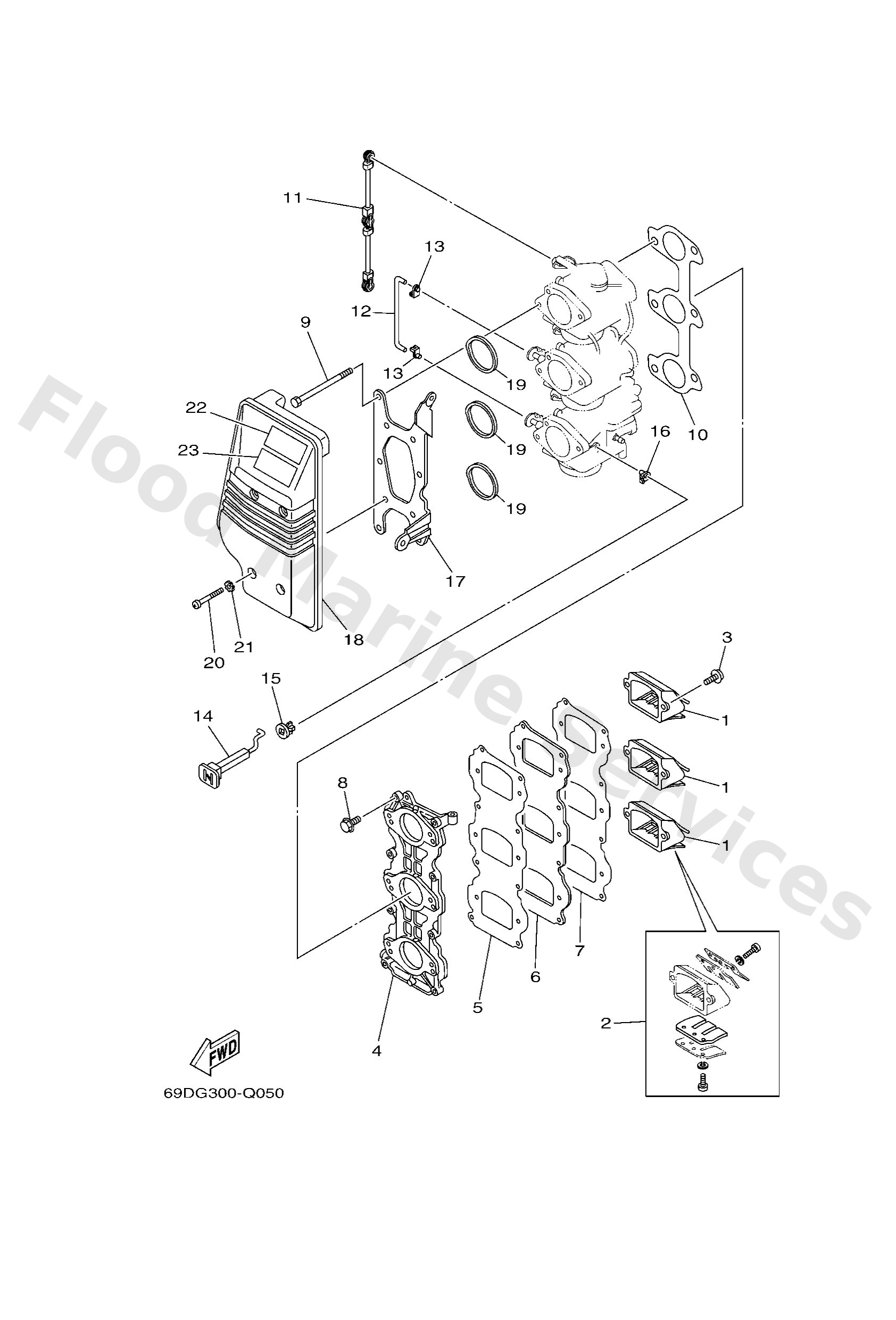

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6H21361000
Reed valve assembly
Loading…
↗
2
688W000400
Reed set
Loading…
↗
3
9798005216
Screw, pan w/ plain
Loading…
↗
4
6H31364104
Manifold, intake 1
Loading…
↗
5
6H313621A1
Gasket, valve seat
Loading…
↗
6
6H31362400
Plate, reed valve
Loading…
↗
7
6H313622A1
Gasket, valve seat
Loading…
↗
8
9011906MA3
Bolt, with washer
Loading…
↗
9
9709506095
Bolt, hexagon deep recess
Loading…
↗
10
6H314198A1
Gasket
Loading…
↗
11
6H34121700
Rod, accel lever
Loading…
↗
12
6H34125700
Rod, choke link 2
Loading…
↗
13
6614126202
Joint, choke lever
Loading…
↗
14
6H34127101
Knob, choke
Loading…
↗
15
6894127300
Grommet
Loading…
↗
17
6H31441311
Stay
Loading…
↗
18
6H31444002
Silencer assembly, intake
Loading…
↗
19
6H31445701
Seal
Loading…
↗
20
9788506045
Screw, pan head(6b0)
Loading…
↗
21
9020906M05
Washer (688)
Loading…
↗
22
6EE8199440
Label, safety
Loading…
↗
23
6EE8199450
Label, safety
Loading…
↗
