E60HWHD (2003)
INTAKE

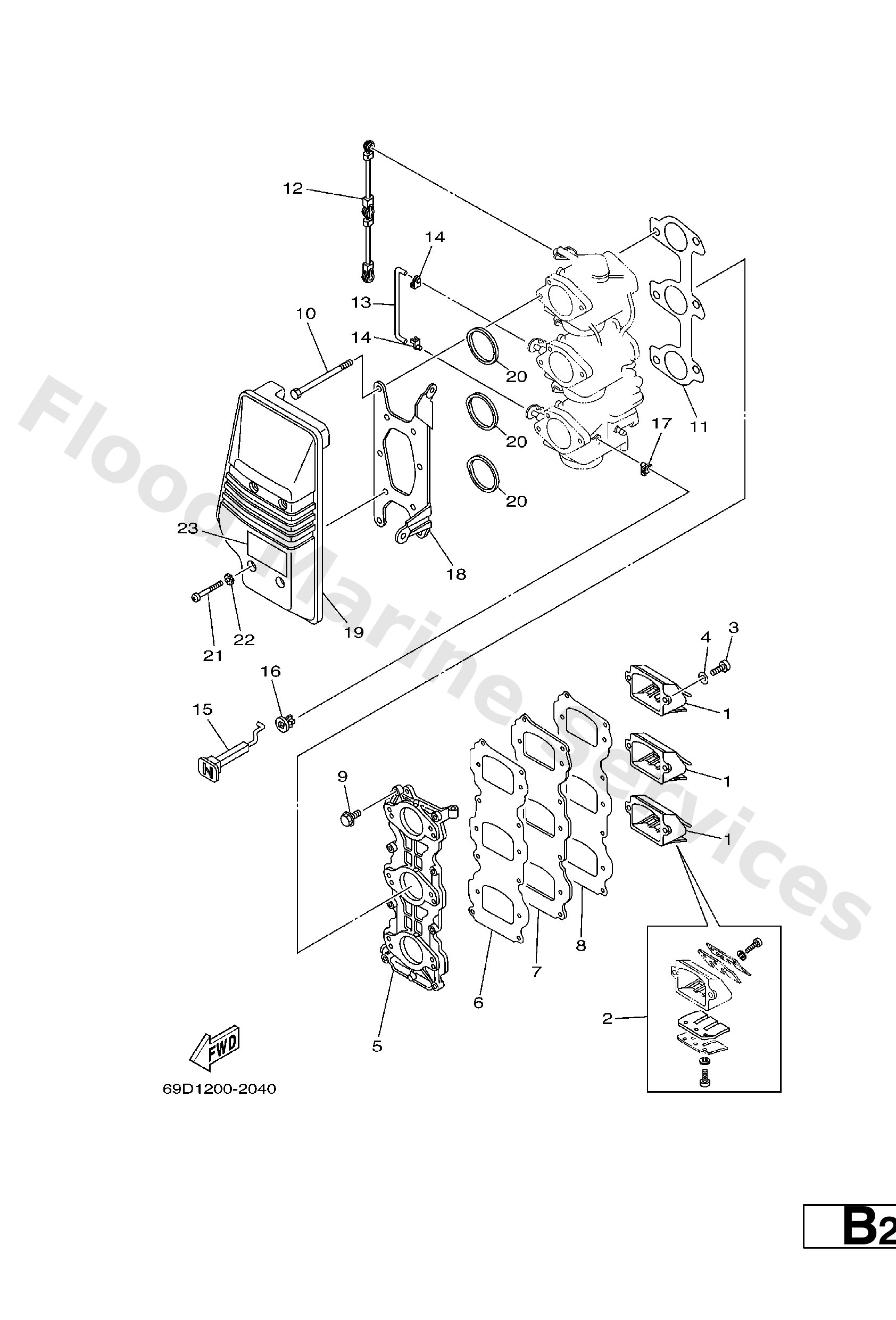

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6H2−13610−00
Reed valve assembly
Loading…
↗
2
688−W0004−00
Reed set
Loading…
↗
3
97880−05016
Screw, pan head(6b0)
Loading…
↗
4
92990−05600
Washer, plain (646)
Loading…
↗
5
6H3−13641−03−94
Manifold, intake 1
Loading…
↗
6
6H3−13621−A1
Gasket, valve seat
Loading…
↗
7
6H3−13624−00−94
Plate, reed valve
Loading…
↗
8
6H3−13622−A1
Gasket, valve seat
Loading…
↗
9
90119−06MA3
Bolt, with washer
Loading…
↗
10
97095−06095
Bolt, hexagon deep recess
Loading…
↗
11
6H3−14198−A1
Gasket
Loading…
↗
12
6H3−41217−00
Rod, accel lever
Loading…
↗
13
6H3−41257−00
Rod, choke link 2
Loading…
↗
14
661−41262−02
Joint, choke lever
Loading…
↗
15
6H3−41271−00
Knob, choke
Loading…
↗
16
689−41273−00
Grommet
Loading…
↗
18
6H3−14413−10
Stay
Loading…
↗
19
6H3−14440−02
Silencer assembly, intake
Loading…
↗
20
6H3−14457−01
Seal
Loading…
↗
21
97885−06045
Screw, pan head(6b0)
Loading…
↗
22
90209−06M05
Washer (688)
Loading…
↗
23
6K5−14488−00
Label, caution
