Yamaha Outboard Parts - INTAKE - EK9.9HMH (2003) | Flood Marine

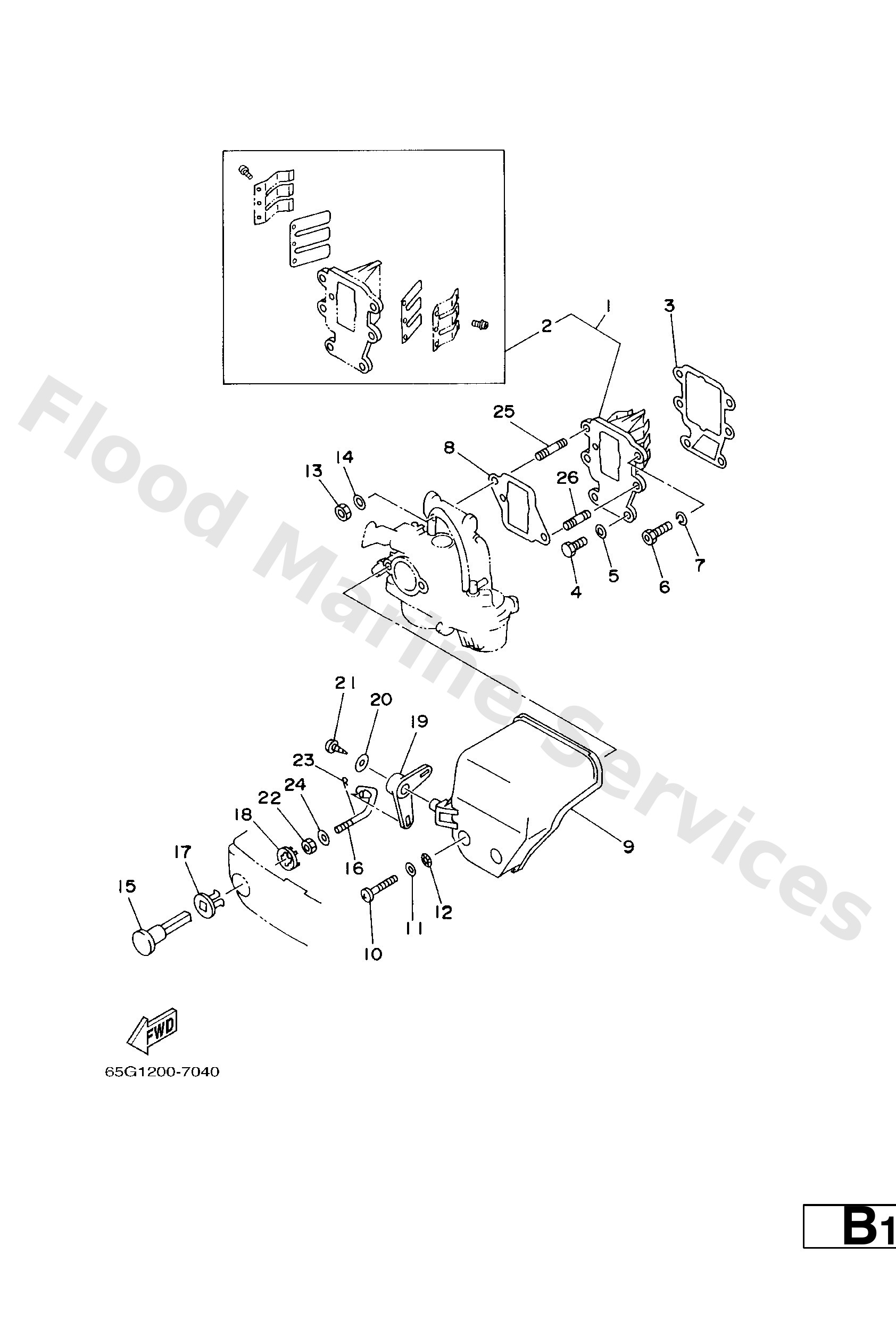

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
65G−13610−00
4−
Loading…

↗
2
682−W0004−00
Reed set
Loading…

↗
3
682−13621−00
Gasket, valve seat
Loading…

↗
4
97095−06016
Bolt, hexagon deep recess
Loading…

↗
5
92995−06600
Washer, plain (646)
Loading…

↗
6
90101−06128
Bolt (658)
Loading…

↗
7
92903−06100
Washer(6a1)
Loading…

↗
8
677−14198−00
Gasket
Loading…

↗
9
65G−14417−00
Cover 1
Loading…

↗
10
97880−05030
Ybs86-530 screw,panhead
Loading…

↗
11
92990−05600
Washer, plain (646)
Loading…

↗
12
90209−05M24
Washer
Loading…

↗
13
95380−06700
Nut
Loading…

↗
15
65G−41271−00
Knob, Choke
Loading…

↗
16
65G−41256−00
Rod, Choke 1
Loading…

↗
17
689−41273−00
Grommet
Loading…

↗
18
6J8−41274−00
Grommet 2
Loading…

↗
19
6M7−41252−00
Lever, choke
Loading…

↗
20
90201−05M09
Washer, plate(63v)
Loading…

↗
21
90164−05M00
Screw, tapping (6f5)
Loading…

↗
22
95380−04700
Nut(6l4)
Loading…

↗
23
90468−10004
Clip 626412360000
Loading…

↗
24
90202−05203
Washer, plate(j45)
Loading…

↗
25
90116−06130
Bolt, stud
Loading…

↗
26
95627−06325
Bolt, stud(6e0)
Loading…

↗
