F100BET (2005)
INTAKE

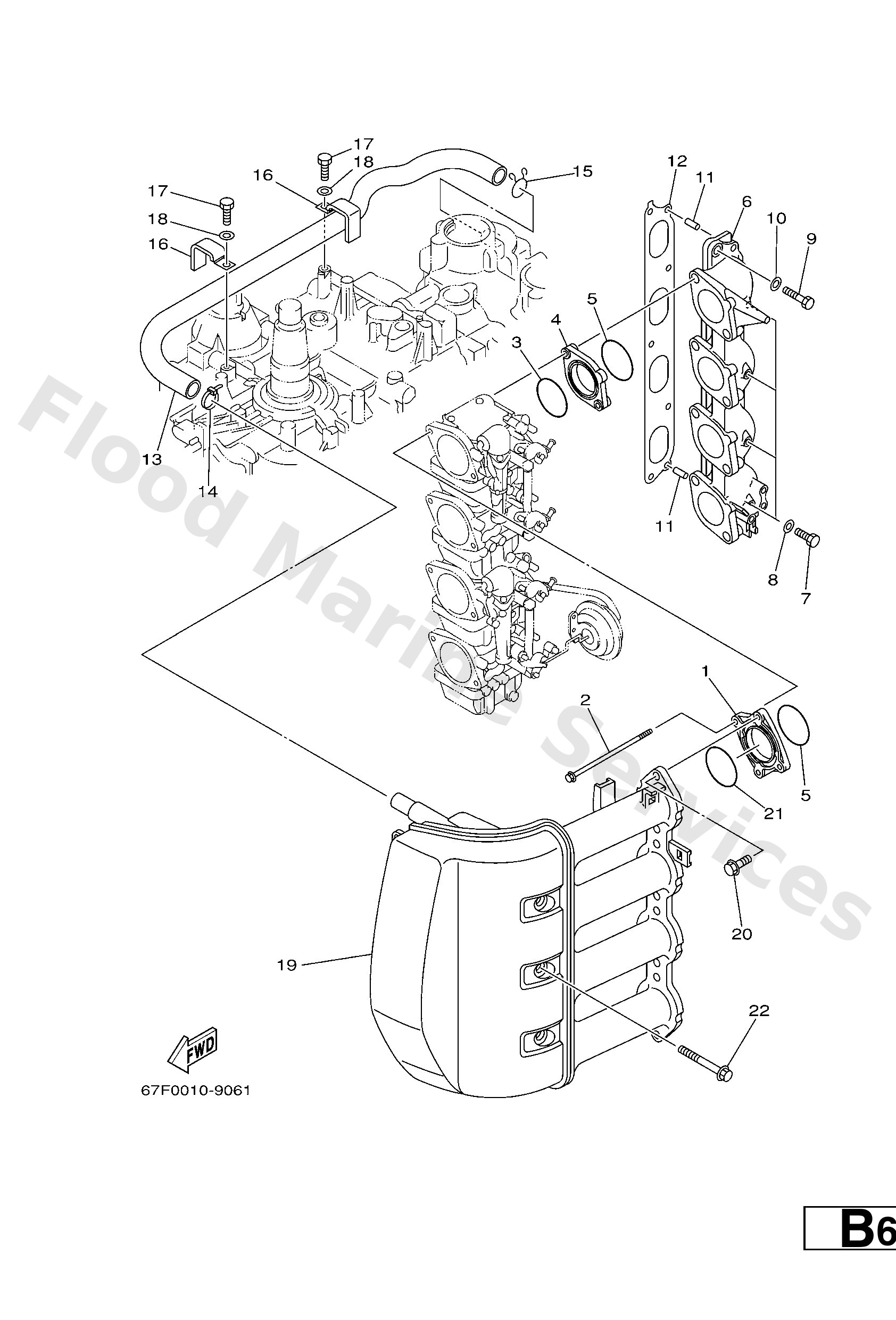

Diagram: INTAKE
Parts List
Reference
Description
Price
1
67F1424300
Plate
Loading…
↗
2
67F1421600
Screw
Loading…
↗
3
67F1423900
Seal
Loading…
↗
4
67F1427100
Insulator
Loading…
↗
5
9321040M10
O-ring (682)
Loading…
↗
6
67F136410094
Manifold 1
Loading…
↗
7
9709506010
Bolt
Loading…
↗
8
9043006014
Gasket 256113960000
Loading…
↗
9
9707508035
Bolt(70w)
Loading…
↗
10
9299508600
Washer, plain (663)
Loading…
↗
11
9169050014
Pin, spring (647)
Loading…
↗
12
67F1364500
Gasket, manifold 1
Loading…
↗
13
67F1537300
Pipe, breather
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
9046720M15
Clip
Loading…
↗
16
9046512M03
Clamp, cord (688)
Loading…
↗
17
9709506012
Bolt(gh1)
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
67F1444000
Silencer assembly, intake
Loading…
↗
20
9011906M82
Bolt, with washer
Loading…
↗
21
9321041MJ2
O-ring
Loading…
↗
22
9011908M59
Bolt, with washer
Loading…
↗
