F25DMH (2013)
INTAKE

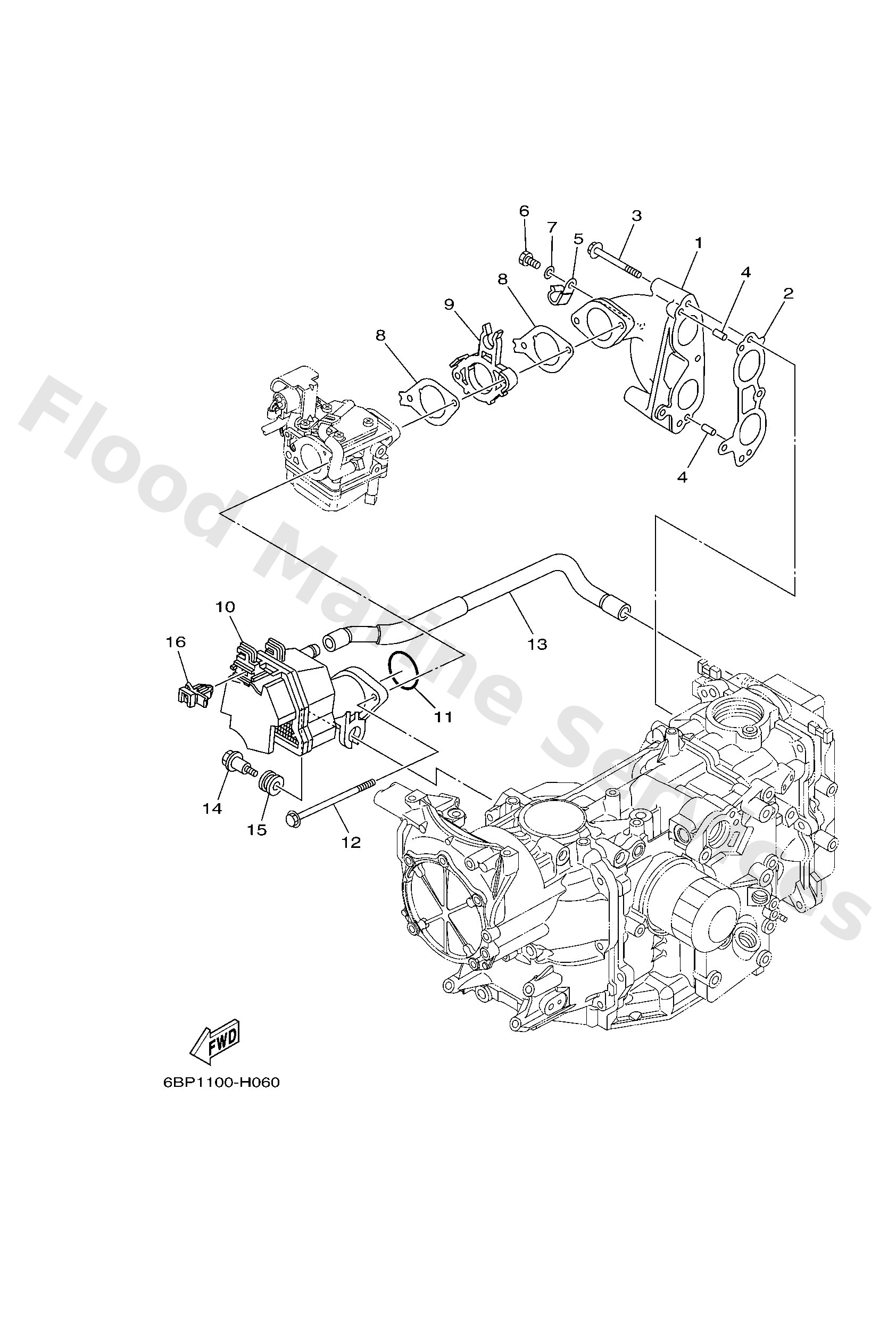

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6BL136410094
Manifold 1
Loading…
↗
2
6BL1364500
Gasket, manifold 1
Loading…
↗
3
9759506555
Bolt, hexagon w/w deep recess
Loading…
↗
4
9169050014
Pin, spring (647)
Loading…
↗
5
9046508M83
Clamp
Loading…
↗
6
9709506016
Bolt, hexagon deep recess
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6BL1364600
Gasket, manifold 2
Loading…
↗
9
6BL1427100
Insulator
Loading…
↗
10
6BL1444000
Silencer assembly, intake
Loading…
↗
11
9321039ME4
O-ring(6h2)
Loading…
↗
12
9589506100
Bolt, flange deep recess
Loading…
↗
13
6BL1537300
Pipe, breather
Loading…
↗
14
9010906MA1
Bolt
Loading…
↗
15
9048016616
Grommet
Loading…
↗
16
9046409M47
Clamp(65j)
Loading…
↗
