F40BED (2004)
INTAKE

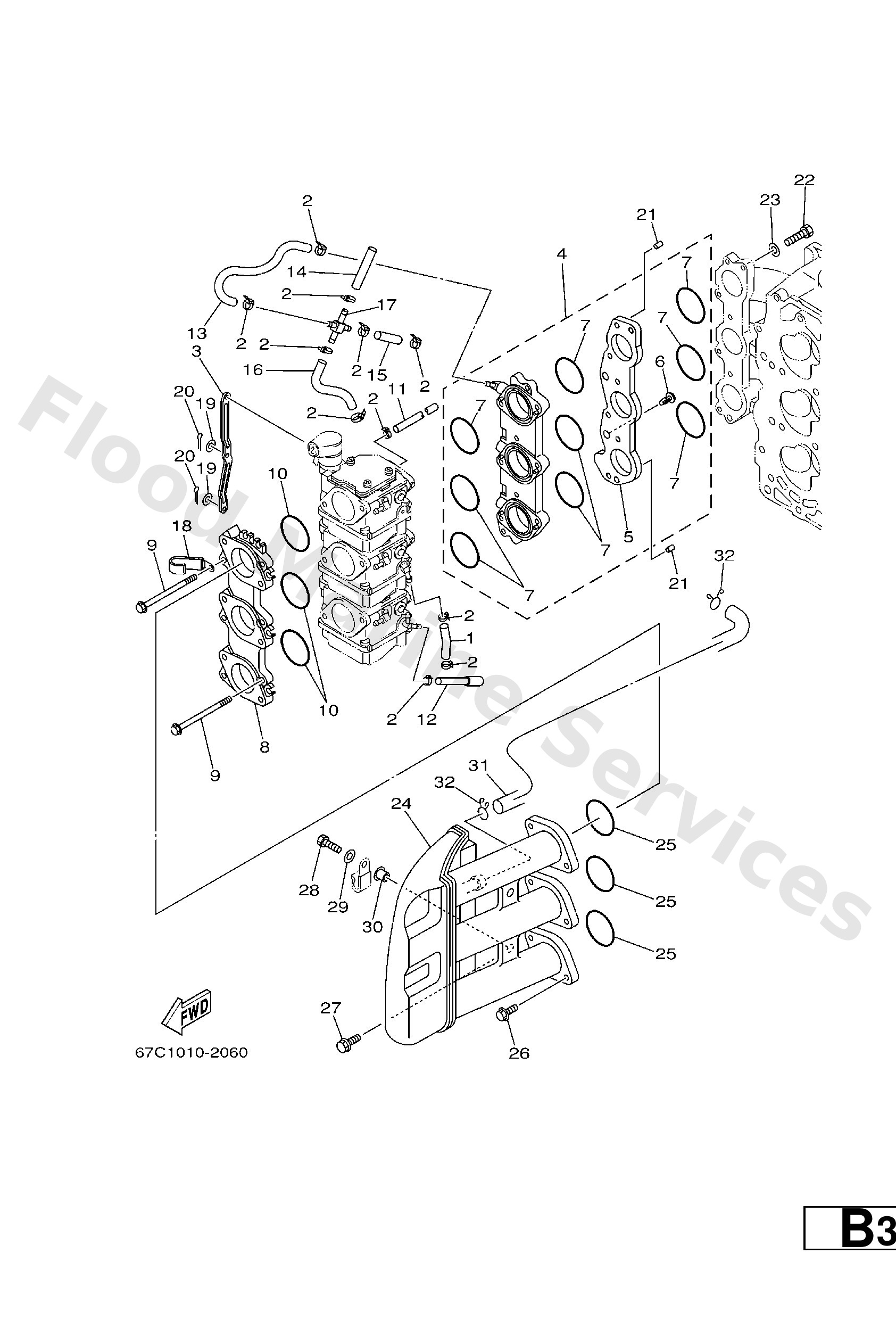

Diagram: INTAKE
Parts List
Reference
Description
Price
1
9044509M34
Hose
Loading…
↗
2
9046511M10
Clamp
Loading…
↗
3
67C1458500
Link, accel.
Loading…
↗
4
67C1358900
Carburetor joint comp.
Loading…
↗
5
67C1427100
Insulator
Loading…
↗
6
9033804M17
Plug(62y)
Loading…
↗
7
67C1456100
O-ring
Loading…
↗
8
67C142430194
Plate
Loading…
↗
9
9759506590
Bolt(62y)
Loading…
↗
10
67C1456200
O-ring
Loading…
↗
11
67C1397100
Pipe, fuel 1
Loading…
↗
12
67C1397200
Pipe, fuel 2
Loading…
↗
13
67C1397300
Pipe, fuel 3
Loading…
↗
14
67C1429400
Hose
Loading…
↗
15
67C1397500
Pipe, fuel 5
Loading…
↗
16
67C1397600
Pipe, fuel 6
Loading…
↗
17
67C1431800
Pipe, joint 4
Loading…
↗
18
67C1425500
Clamp
Loading…
↗
19
9299004600
Washer, plain (646)
Loading…
↗
20
9149006012
Pin, cotter
Loading…
↗
21
9360816M16
Pin, dowel(6t4)
Loading…
↗
22
9709506025
Bolt
Loading…
↗
23
9299506600
Washer, plain (646)
Loading…
↗
24
67C1444000
Silencer assembly, intake
Loading…
↗
25
9321034MJ6
O-ring
Loading…
↗
26
9011906M82
Bolt, with washer
Loading…
↗
27
9011906M86
Bolt, with washer
Loading…
↗
28
9709506020
Bolt(7u8)
Loading…
↗
30
9038706M70
Collar (6h5)
Loading…
↗
31
67C1537300
Pipe, breather
Loading…
↗
32
9046715M14
Clip(62y)
Loading…
↗
