F4AMH (2005)
INTAKE

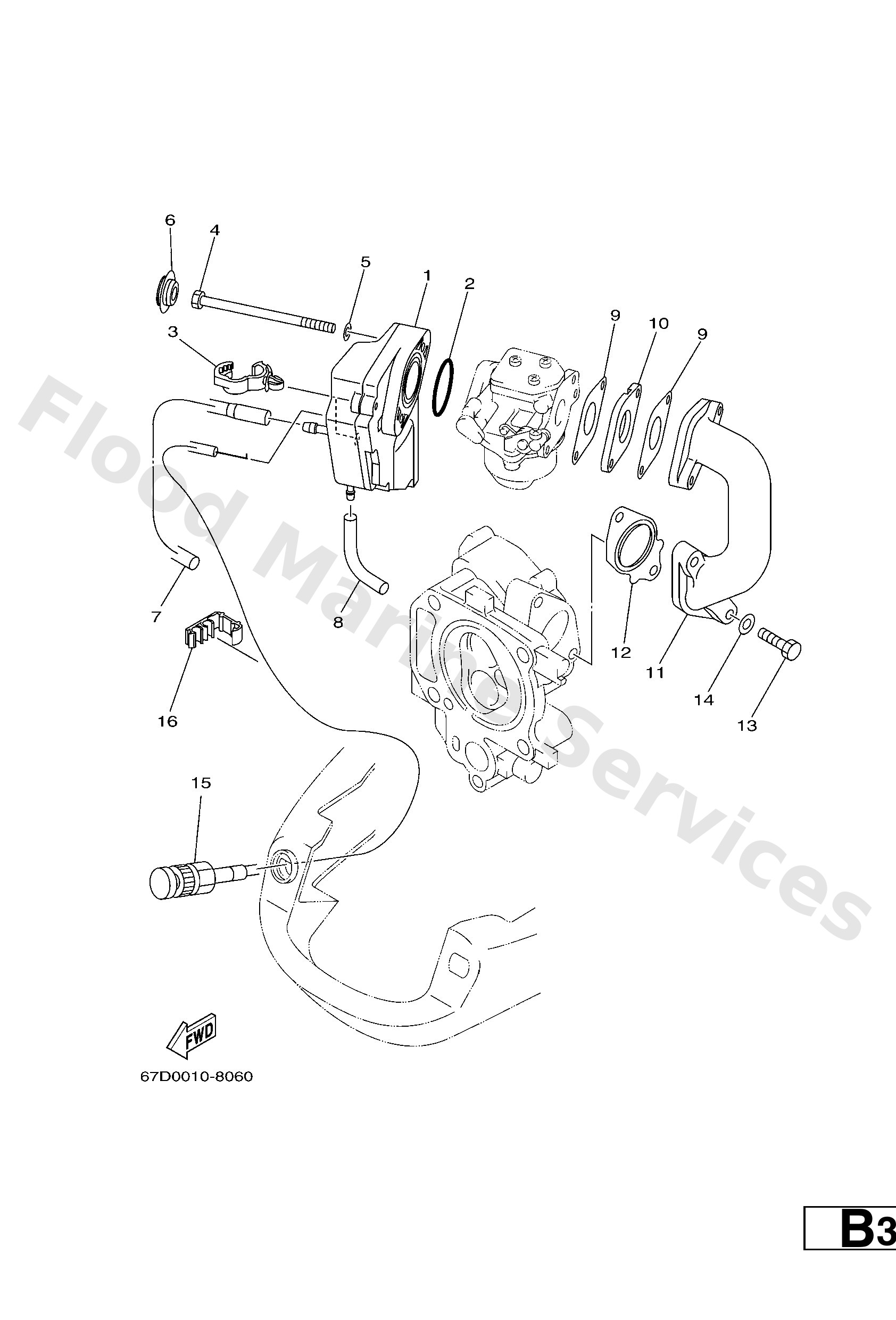

Diagram: INTAKE
Parts List
Reference
Description
Price
1
68DE444000
Silencer assembly, Intake
Loading…
↗
2
9321031MJ5
O-ring
Loading…
↗
3
9046413249
Clamp
Loading…
↗
4
9709506090
Bolt(62y)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9048018M74
Grommet
Loading…
↗
7
68DF431400
Pipe 4
Loading…
↗
8
9044507805
Hose (l200)
Loading…
↗
9
68DE3646A0
Gasket, Manifold 2
Loading…
↗
10
68DE364700
Gasket, Manifold 3
Loading…
↗
11
68DE36410094
Manifold 1
Loading…
↗
12
68DE3645A0
Gasket int. manifold
Loading…
↗
13
9709506025
Bolt
Loading…
↗
15
68DF633000
Wire starter
Loading…
↗
16
9046405122
Clamp
Loading…
↗
