F5AMH (2010)
INTAKE

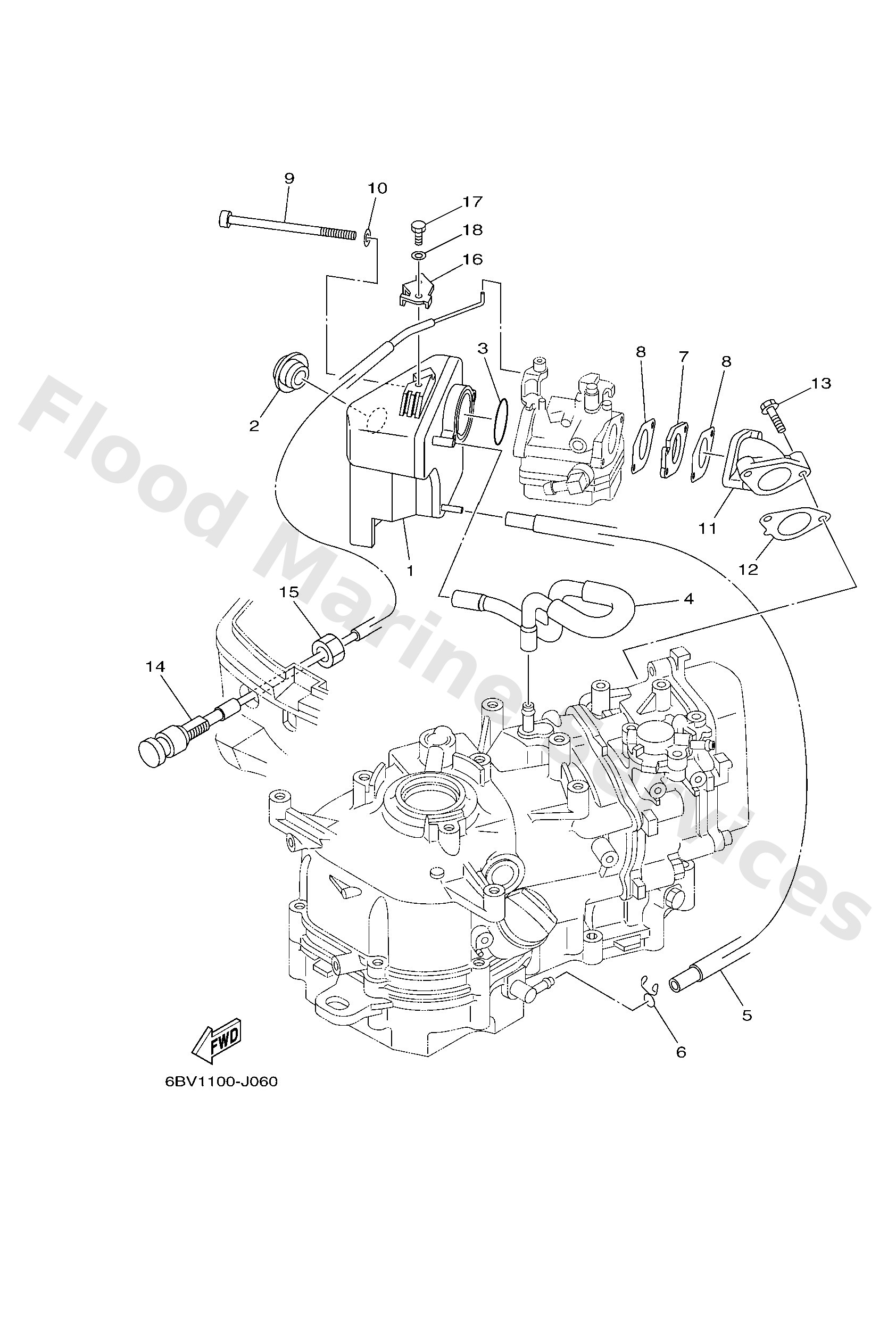

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6BX1444000
Silencer assembly, intake
Loading…
↗
2
9048018M74
Grommet
Loading…
↗
3
93210320A7
O-ring
Loading…
↗
4
6BXF431400
Pipe 4
Loading…
↗
5
6BXE316F00
Hose, oil 1
Loading…
↗
6
9046709M09
Clip(6k8)
Loading…
↗
7
6BXE364700
Gasket, manifold 3
Loading…
↗
8
6BXE364600
Gasket, manifold 2
Loading…
↗
9
9011006350
Bolt, hexagon socket head
Loading…
↗
10
9020106106
Washer, plate
Loading…
↗
11
6BXE36411094
Manifold, intake 1
Loading…
↗
12
6BXE364500
Gasket, manifold 1
Loading…
↗
13
9757506525
Bolt, hexagon w/w deep recess
Loading…
↗
14
6BXF633000
Starter cable assembly
Loading…
↗
15
6BXF633300
Nut
Loading…
↗
16
6BXE315100
Stay
Loading…
↗
17
9709505010
Bolt (682)
Loading…
↗
18
9299505600
Washer, plain (646)
Loading…
↗
