F5AMH (2019)
INTAKE

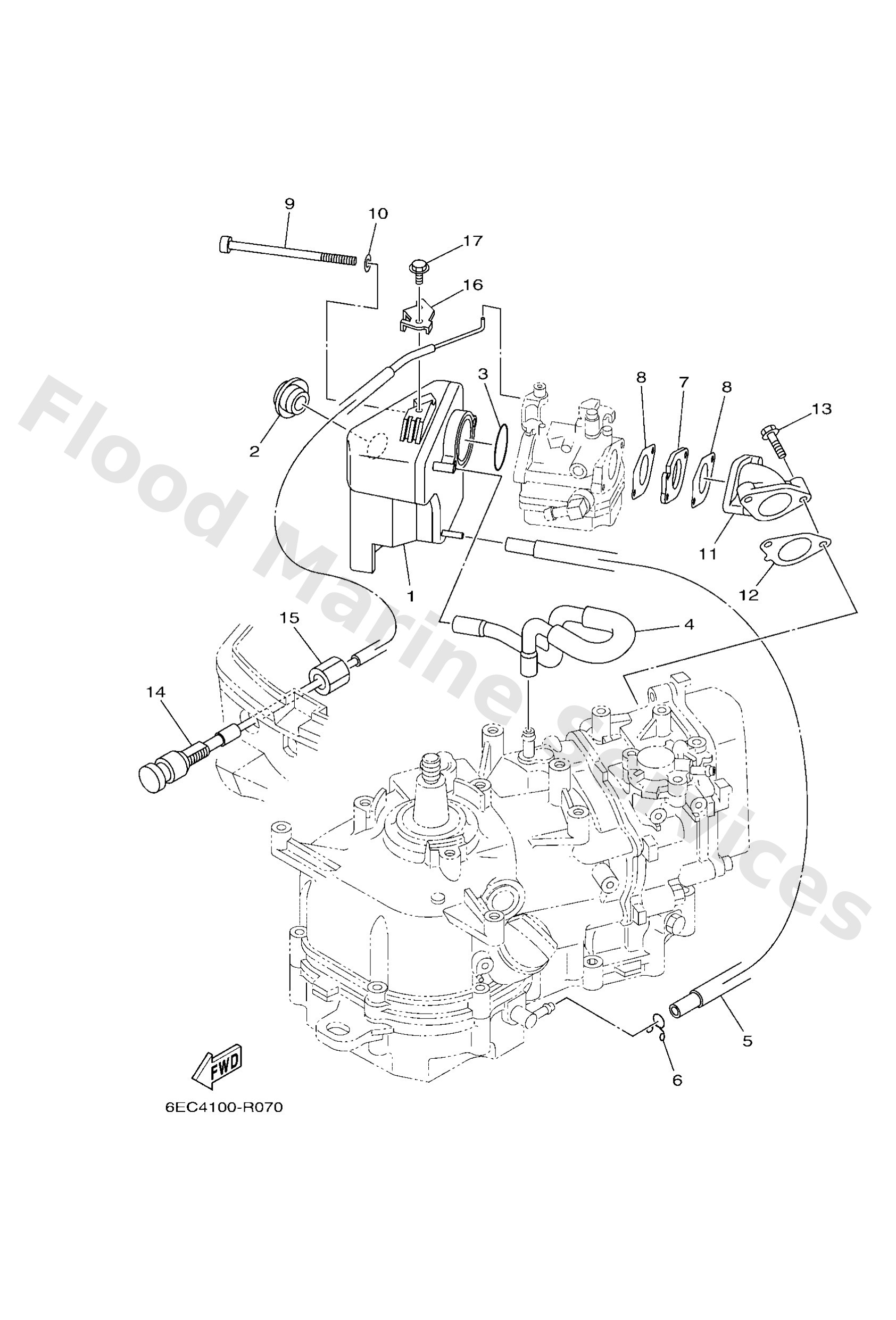

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6BX1444000
Silencer assembly, intake
Loading…
↗
2
9048018M74
Grommet
Loading…
↗
3
9321032817
O-ring
Loading…
↗
4
6EEF431400
Pipe 4
Loading…
↗
5
6EEE316F00
Hose, oil 1
Loading…
↗
6
9046709M09
Clip(6k8)
Loading…
↗
7
6EEE364700
Gasket, manifold 3
Loading…
↗
8
6EEE364600
Gasket, manifold 2
Loading…
↗
9
9011006350
Bolt, hexagon socket head
Loading…
↗
10
9020106106
Washer, plate
Loading…
↗
11
6BXE364110
Manifold, intake 1
Loading…
↗
12
6EEE364500
Gasket, manifold 1
Loading…
↗
13
9011906MA3
Bolt, with washer
Loading…
↗
14
6EEF633000
Starter cable assembly
Loading…
↗
15
9017911001
Nut
Loading…
↗
16
6EEE315100
Stay
Loading…
↗
17
9759505510
Bolt hex. head
Loading…
↗
