F60AET (2002)
INTAKE

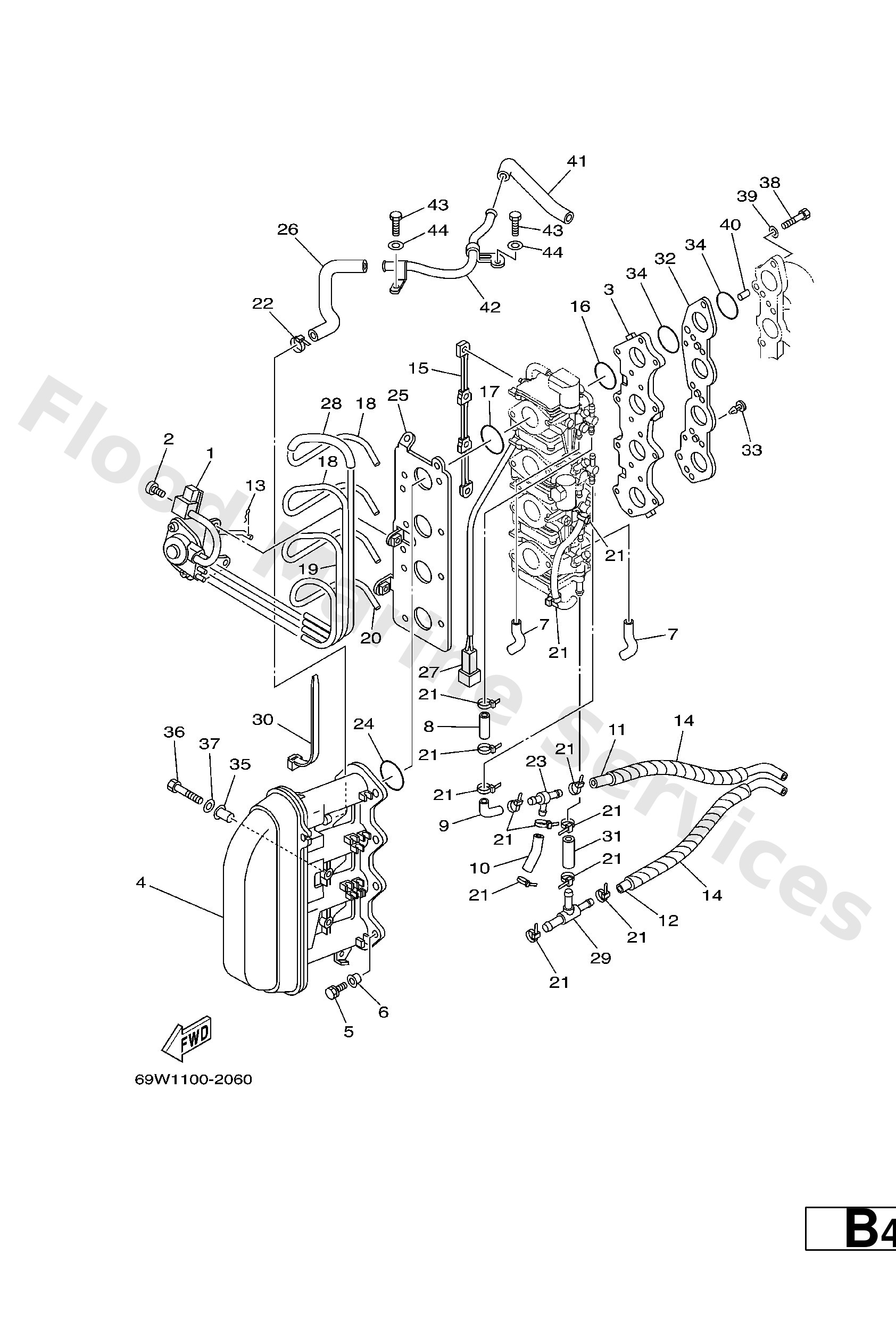

Diagram: INTAKE
Parts List
Reference
Description
Price
1
69W−14369−00
Diaphragm assembly 2
Loading…
↗
2
650−14327−01
Screw
Loading…
↗
3
69W−13586−00
Joint, carburetor 1
Loading…
↗
4
69W−14440−00
Silencer assembly, Intake
Loading…
↗
5
97595−06590
Bolt(62y)
Loading…
↗
6
90387−06M70
Collar (6h5)
Loading…
↗
7
62Y−24312−00
Pipe, fuel 1
Loading…
↗
8
62Y−24313−30
Pipe 3
Loading…
↗
9
62Y−24313−40
Pipe 3
Loading…
↗
10
62Y−24313−50
Pipe 3
Loading…
↗
11
62Y−24313−61
Pipe 3
Loading…
↗
12
62Y−24313−70
Pipe 3
Loading…
↗
13
69W−23153−00
Ring, snap
Loading…
↗
14
69W−24313−80
Pipe 3
Loading…
↗
15
64J−14585−00
Rod, choke
Loading…
↗
16
69W−14561−00
O-ring
Loading…
↗
17
93210−35M86
O-ring(6l2)
Loading…
↗
18
64J−14349−11
Pipe
Loading…
↗
19
69W−14349−00
Pipe
Loading…
↗
20
69W−14349−10
Pipe
Loading…
↗
21
90465−11M10
Clamp
Loading…
↗
22
90465−13M36
Clamp(6h4)
Loading…
↗
23
62Y−24378−00
Pipe, joint 4
Loading…
↗
24
93210−38MH3
O-ring(62y)
Loading…
↗
25
62Y−14291−30
Bracket 1
Loading…
↗
26
62Y−1532B−00
Pipe, breather
Loading…
↗
27
69W−82509−00
Wire, sub lead
Loading…
↗
28
64J−14349−40
Pipe
Loading…
↗
30
62Y−82544−00
Clamp
Loading…
↗
31
62Y−24314−00
Pipe 4
Loading…
↗
32
69W−14271−00
Insulator
Loading…
↗
33
90338−04M17
Plug(62y)
Loading…
↗
35
90387−06M15
Collar(6g8)
Loading…
↗
36
97095−06030
Bolt(jf7)
Loading…
↗
37
92995−06600
Washer, plain (646)
Loading…
↗
38
97095−06025
Bolt
Loading…
↗
40
93608−16M16
Pin, dowel(6t4)
Loading…
↗
41
62Y−1531A−00
Hose, breather 1
Loading…
↗
42
62Y−15373−10
Pipe, breather
Loading…
↗
43
97095−06016
Bolt, hexagon deep recess
Loading…
↗
