F60AET (2007)
INTAKE

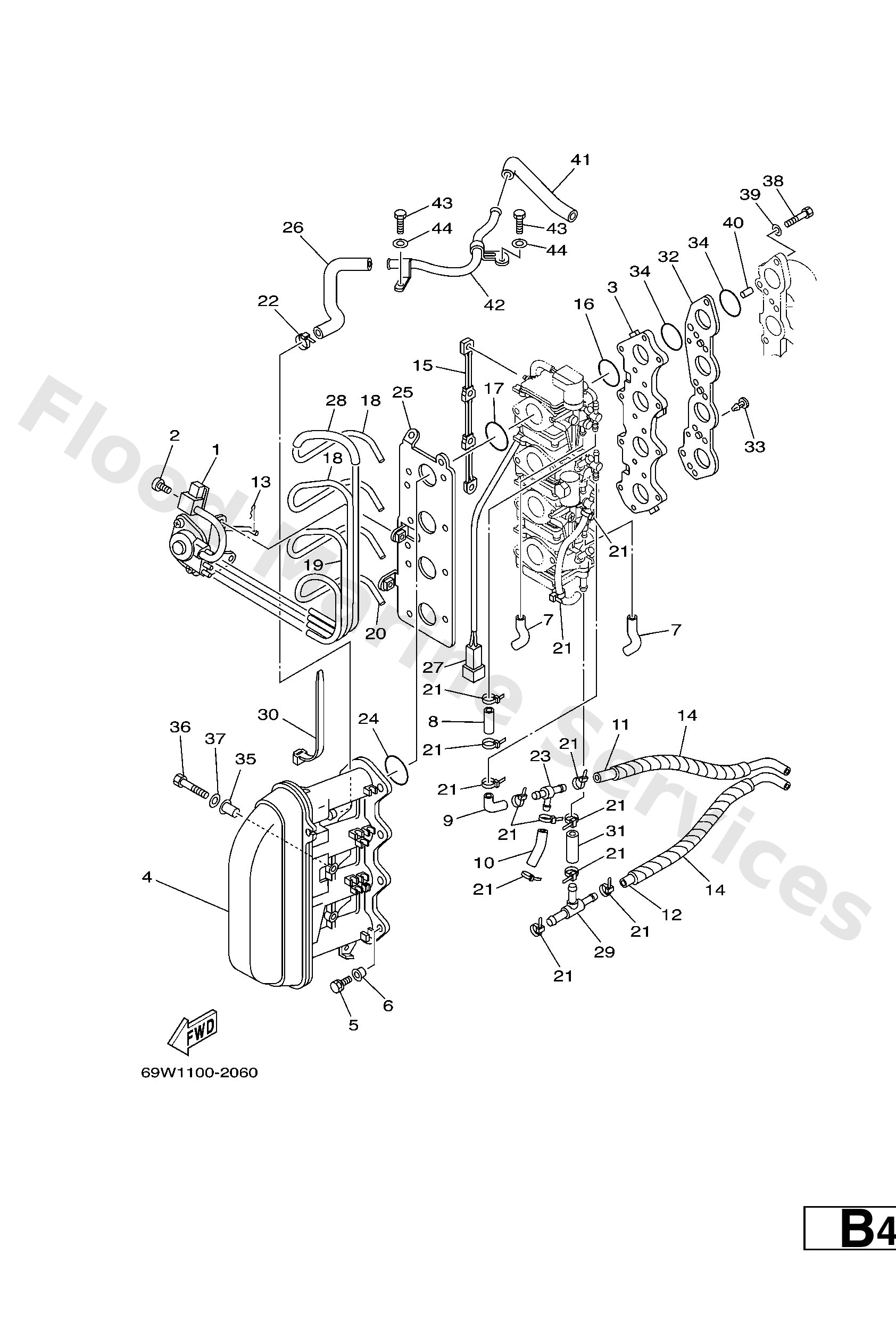

Diagram: INTAKE
Parts List
Reference
Description
Price
1
69W1436900
Diaphragm assembly 2
Loading…
↗
2
6501432701
Screw
Loading…
↗
3
69W1358600
Joint, carburetor 1
Loading…
↗
4
69W1444001
Silencer assembly, Intake
Loading…
↗
5
9759506590
Bolt(62y)
Loading…
↗
6
9038706M70
Collar (6h5)
Loading…
↗
7
62Y2431200
Pipe, fuel 1
Loading…
↗
8
62Y2431330
Pipe 3
Loading…
↗
9
62Y2431340
Pipe 3
Loading…
↗
10
62Y2431350
Pipe 3
Loading…
↗
11
62Y2431361
Pipe 3
Loading…
↗
12
62Y2431370
Pipe 3
Loading…
↗
13
69W2315300
Ring, snap
Loading…
↗
14
69W2431380
Pipe 3
Loading…
↗
15
64J1458500
Rod, choke
Loading…
↗
16
69W1456100
O-ring
Loading…
↗
17
9321035M86
O-ring(6l2)
Loading…
↗
18
64J1434911
Pipe
Loading…
↗
19
69W1434900
Pipe
Loading…
↗
20
69W1434910
Pipe
Loading…
↗
21
9046511M10
Clamp
Loading…
↗
22
9046513M36
Clamp(6h4)
Loading…
↗
23
62Y2437800
Pipe, joint 4
Loading…
↗
24
9321038MH3
O-ring(62y)
Loading…
↗
25
62Y1429130
Bracket 1
Loading…
↗
26
62Y1532B00
Pipe, breather
Loading…
↗
27
69W8250900
Wire, sub lead
Loading…
↗
28
64J1434940
Pipe
Loading…
↗
30
62Y8254400
Clamp
Loading…
↗
31
62Y2431400
Pipe 4
Loading…
↗
32
69W1427100
Insulator
Loading…
↗
33
9033804M17
Plug(62y)
Loading…
↗
35
9038706M15
Collar(6g8)
Loading…
↗
36
9709506030
Bolt(jf7)
Loading…
↗
37
9299506600
Washer, plain (646)
Loading…
↗
38
9709506025
Bolt
Loading…
↗
40
9360816M16
Pin, dowel(6t4)
Loading…
↗
41
62Y1531A00
Hose, breather 1
Loading…
↗
42
62Y1537310
Pipe, breather
Loading…
↗
43
9709506016
Bolt, hexagon deep recess
Loading…
↗
