F6AMH (2002)
INTAKE

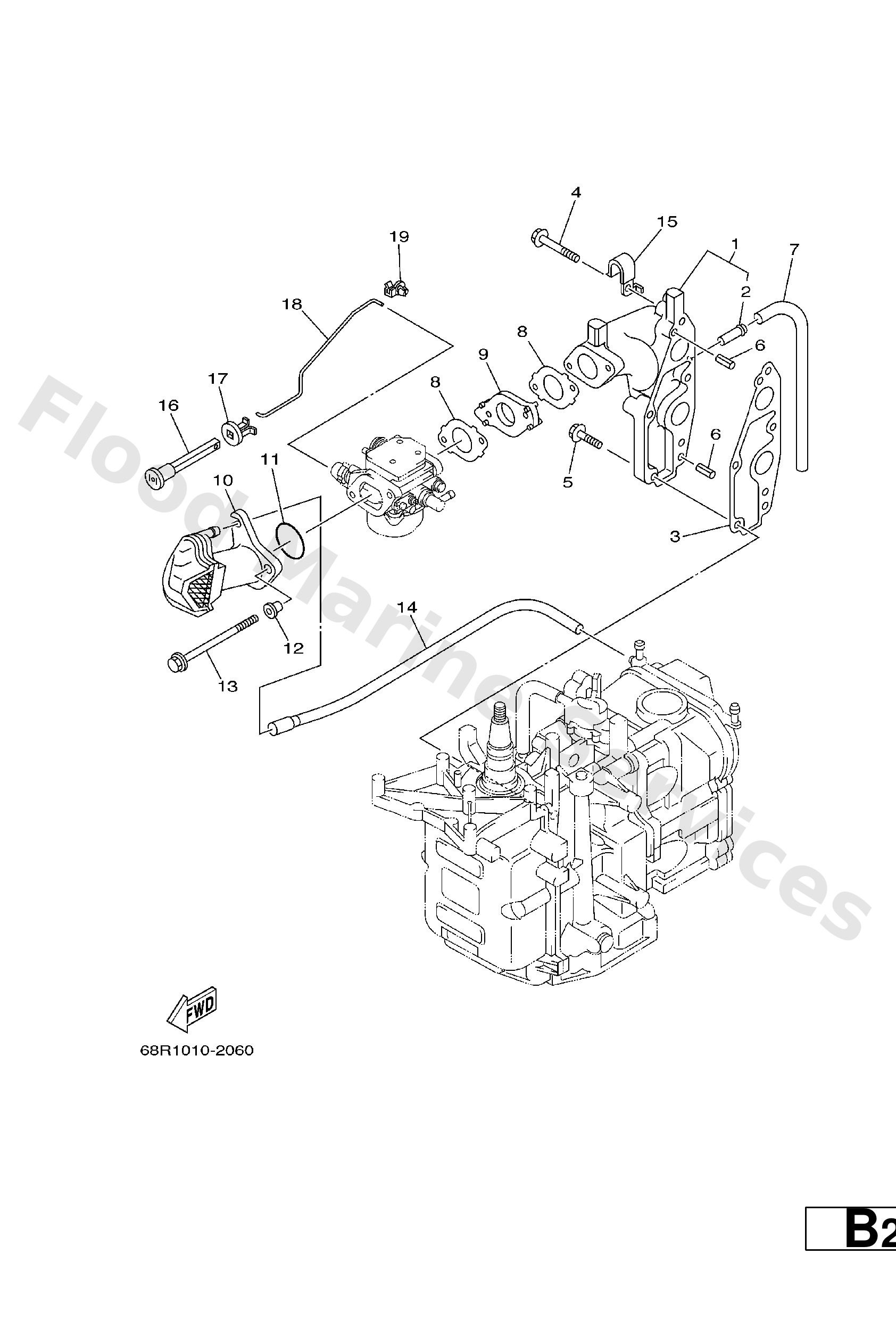

Diagram: INTAKE
Parts List
Reference
Description
Price
1
68T13641001S
Manifold 1
Loading…
↗
2
6502437800
Pipe, joint 2
Loading…
↗
3
68T1364500
Gasket, manifold 1
Loading…
↗
4
9011906MA5
Bolt, with washer
Loading…
↗
5
9011906MA3
Bolt, with washer
Loading…
↗
6
9169050014
Pin, spring (647)
Loading…
↗
7
9044509074
Hose (l1500)
Loading…
↗
8
68T13646A0
Gasket, manifold 2
Loading…
↗
9
68T1427100
Insulator
Loading…
↗
10
68T1444000
Silencer assembly, intake
Loading…
↗
11
9321031MJ5
O-ring
Loading…
↗
12
9038706M70
Collar (6h5)
Loading…
↗
13
9759506585
Bolt, flange
Loading…
↗
14
68T1248300
Pipe 3
Loading…
↗
15
9046508M99
Clamp
Loading…
↗
16
6H44127101
Knob, choke
Loading…
↗
17
6894127300
Grommet
Loading…
↗
18
68T4125600
Rod, choke 1
Loading…
↗
19
6J84126200
Joint, choke lever
Loading…
↗
