F80AET (2003)
INTAKE

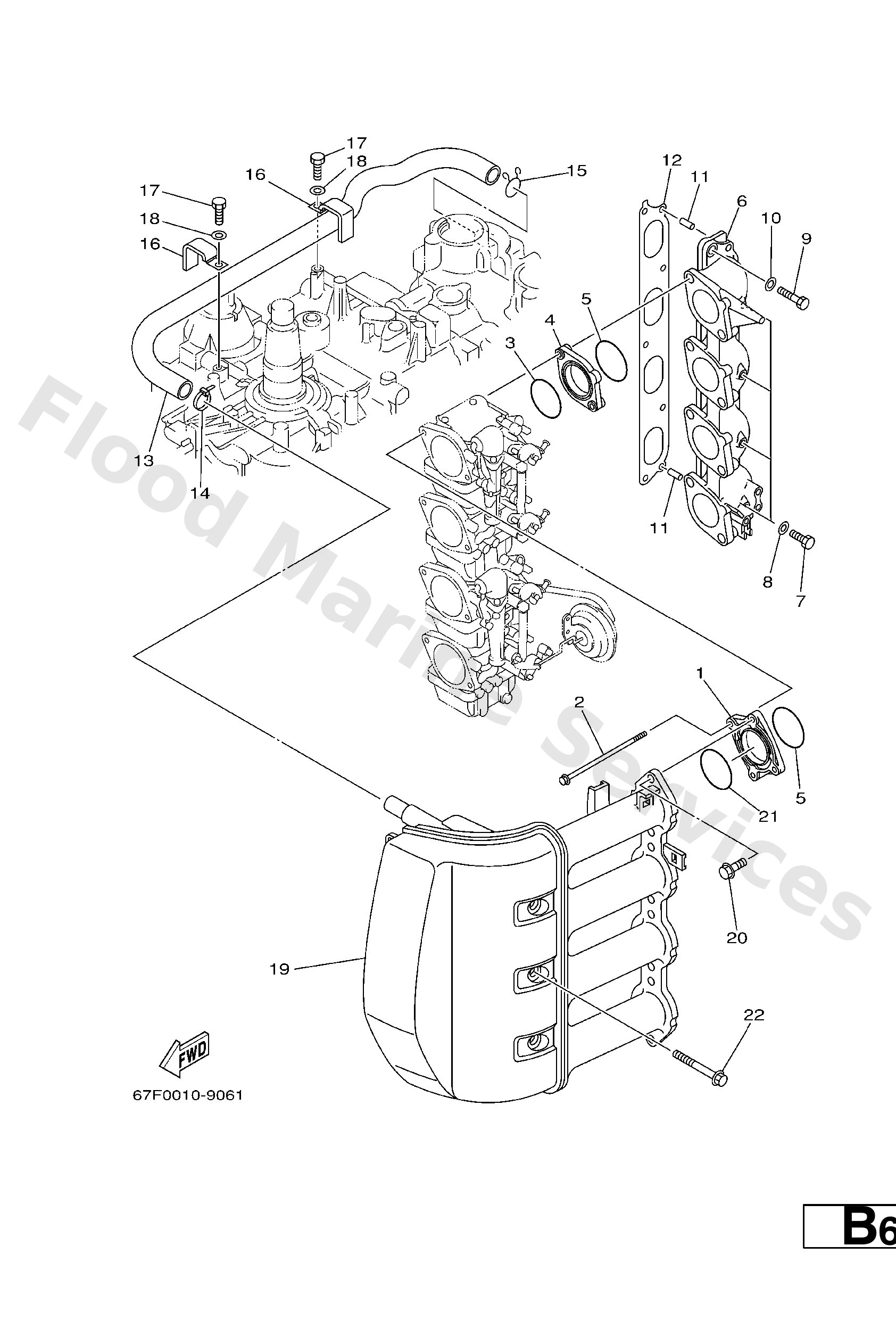

Diagram: INTAKE
Parts List
Reference
Description
Price
1
67F−14243−00
Plate
Loading…
↗
2
67F−14216−00
Screw
Loading…
↗
3
67F−14239−00
Seal
Loading…
↗
4
67F−14271−00
Insulator
Loading…
↗
5
93210−40M10
O-ring (682)
Loading…
↗
6
67F−13641−00−94
Manifold 1
Loading…
↗
7
97095−06010
Bolt
Loading…
↗
8
90430−06014
Gasket 256113960000
Loading…
↗
9
97075−08035
Bolt(70w)
Loading…
↗
10
92995−08600
Washer, plain (663)
Loading…
↗
11
91690−50014
Pin, spring (647)
Loading…
↗
12
67F−13645−00
Gasket, manifold 1
Loading…
↗
13
67F−15373−00
Pipe, breather
Loading…
↗
14
90465−11M10
Clamp
Loading…
↗
15
90467−20M15
Clip
Loading…
↗
16
90465−12M03
Clamp, cord (688)
Loading…
↗
17
97095−06012
Bolt(gh1)
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
67F−14440−00
Silencer assy, intake
Loading…
↗
20
90119−06M82
Bolt, with washer
Loading…
↗
21
93210−41MJ2
O-ring
Loading…
↗
22
90119−08M59
Bolt, with washer
Loading…
↗
