Yamaha Outboard Parts - INTAKE - FL225AET (2002) | Flood Marine

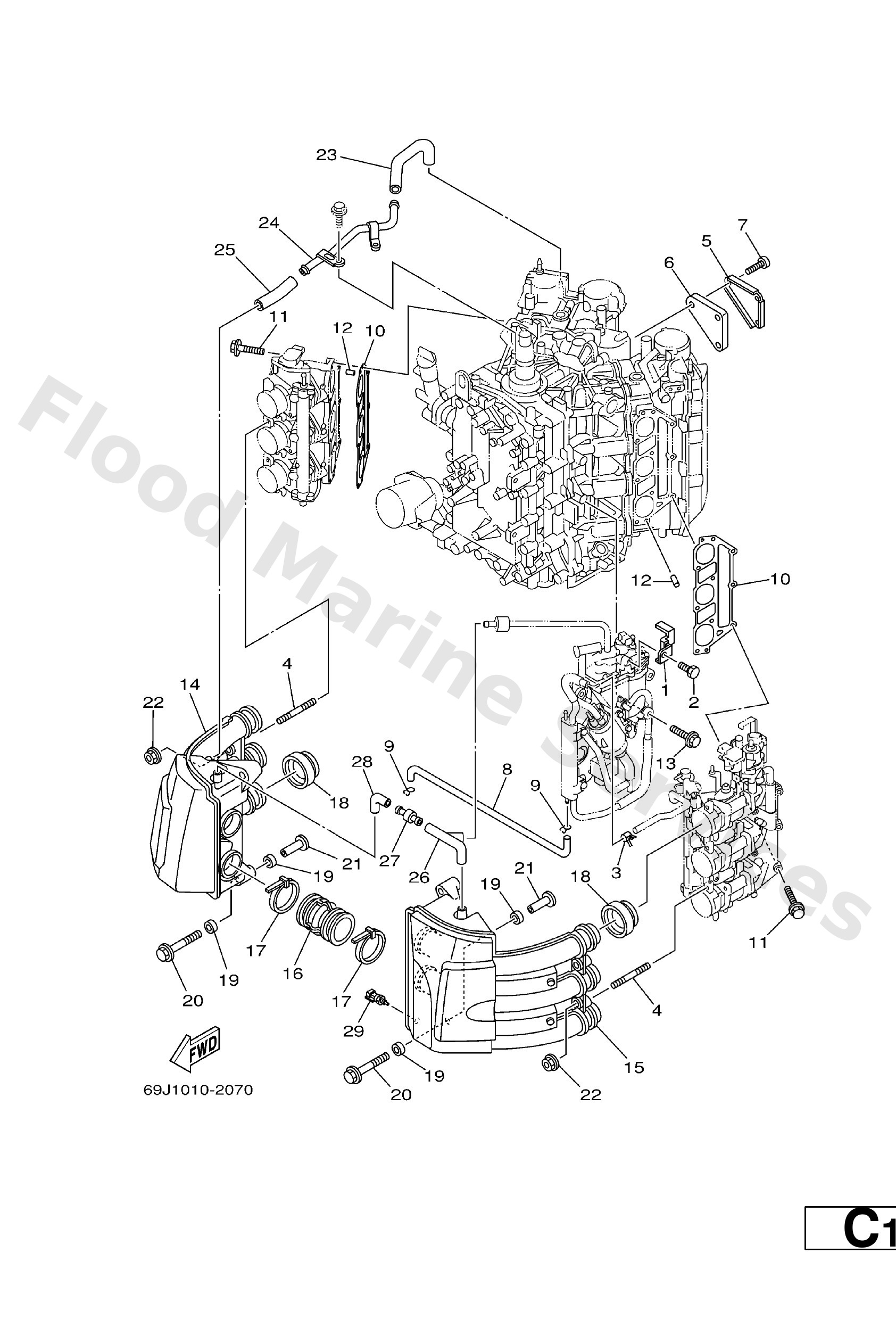

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
69J1414600
Plate
Loading…

↗
2
69J1416200
Bolt, Holding
Loading…

↗
3
68V2451900
Clip
Loading…

↗
4
9011606032
Bolt, stud
Loading…

↗
5
69J1442A00
Cover, cleaner case 3
Loading…

↗
6
69J1440900
Damper
Loading…

↗
7
9778060620
Screw, tapping(6k8)
Loading…

↗
8
69J1248300
Pipe 3
Loading…

↗
9
9046709M03
Clip(6k8)
Loading…

↗
10
69J1364500
Gasket, manifold 1
Loading…

↗
11
9011908022
Bolt, with washer
Loading…

↗
12
9169050014
Pin, spring (647)
Loading…

↗
13
9011906M24
Bolt, with washer
Loading…

↗
14
69J1444000
Silencer assembly, intake
Loading…

↗
15
69J1444F00
Silencer assembly, intake 2
Loading…

↗
16
69J1441900
Pipe
Loading…

↗
17
9046511M52
Clamp(6e7)
Loading…

↗
18
69J1445700
Seal
Loading…

↗
19
9038608001
Bush
Loading…

↗
20
9011906036
Bolt, with washer
Loading…

↗
21
9038706038
Collar
Loading…

↗
22
9017906M28
Nut(63v)
Loading…

↗
23
69J1537300
Pipe, breather
Loading…

↗
24
69J1539400
Pipe, oil vent
Loading…

↗
25
69J1539300
Pipe, breather 2
Loading…

↗
26
69J1539700
Pipe
Loading…

↗
27
5EL1446700
Seal
Loading…

↗
28
69J1434800
Pipe 1
Loading…

↗
29
65L8588600
Thermosensor
Loading…

↗
