Yamaha Outboard Parts - INTAKE - FT25BET (2003) | Flood Marine

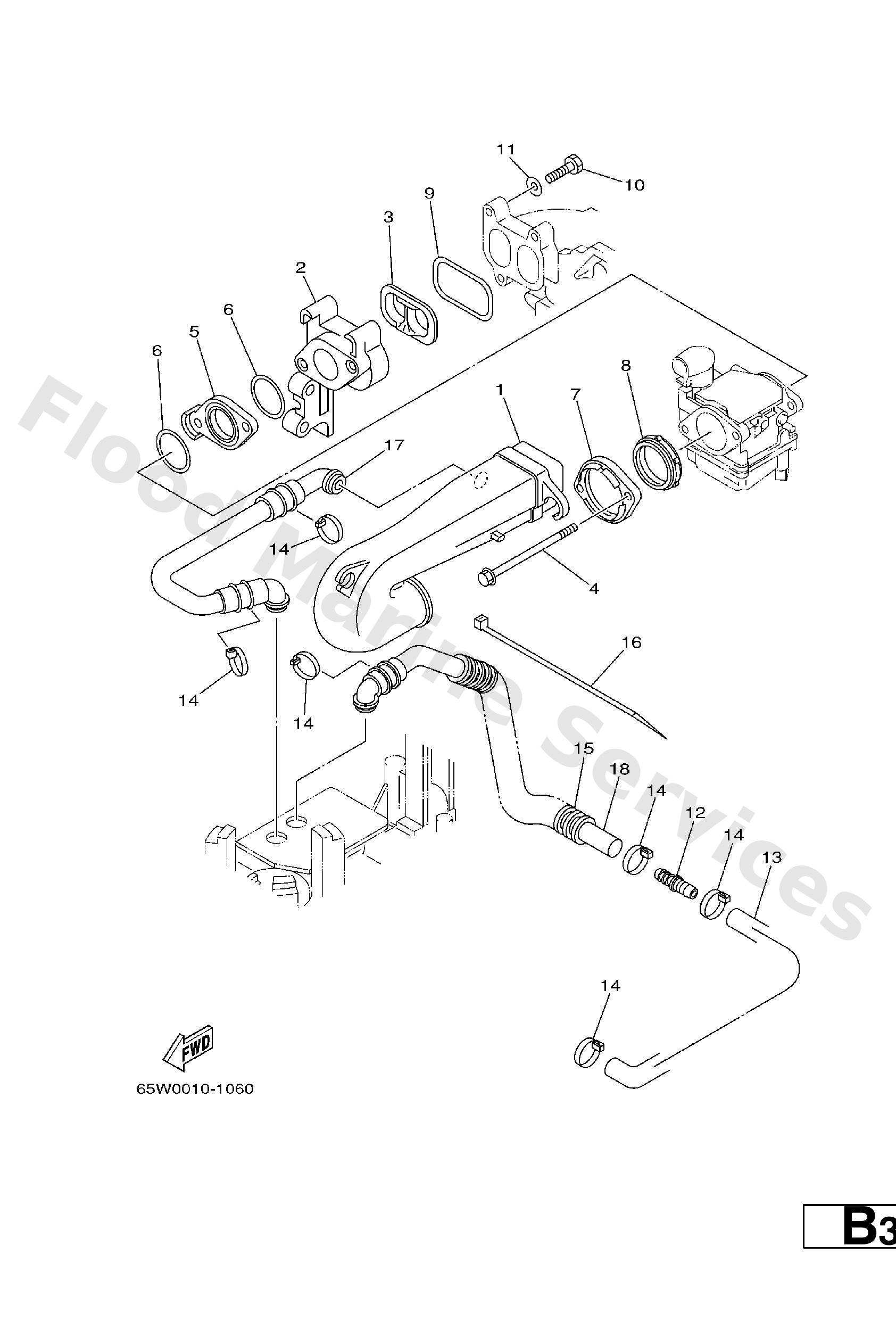

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
65W−14440−00
Silencer assembly, intake
Loading…

↗
2
65W−13640−00
Manifold
Loading…

↗
3
65W−13323−00
Insert
Loading…

↗
4
65W−14496−00
Bolt
Loading…

↗
5
65W−14271−00
Insulator
Loading…

↗
6
65W−14198−00
Gasket
Loading…

↗
7
65W−14262−00
Flange
Loading…

↗
8
65W−14457−10
Seal
Loading…

↗
9
65W−13645−00
Gasket, manifold 1
Loading…

↗
10
97095−06025
Bolt
Loading…

↗
11
92995−06600
Washer, plain (646)
Loading…

↗
12
65W−24377−00
Pipe, joint 3
Loading…

↗
13
65W−15397−10
Pipe
Loading…

↗
14
90465−13M36
Clamp(6h4)
Loading…

↗
15
90446−24M54
Hose
Loading…

↗
16
90465−11M52
Clamp(6e7)
Loading…

↗
17
65W−15370−00
Breather assembly
Loading…

↗
18
65W−15370−10
Breather assembly
Loading…

↗
