Yamaha Outboard Parts - INTAKE - FT25FET (2022) | Flood Marine

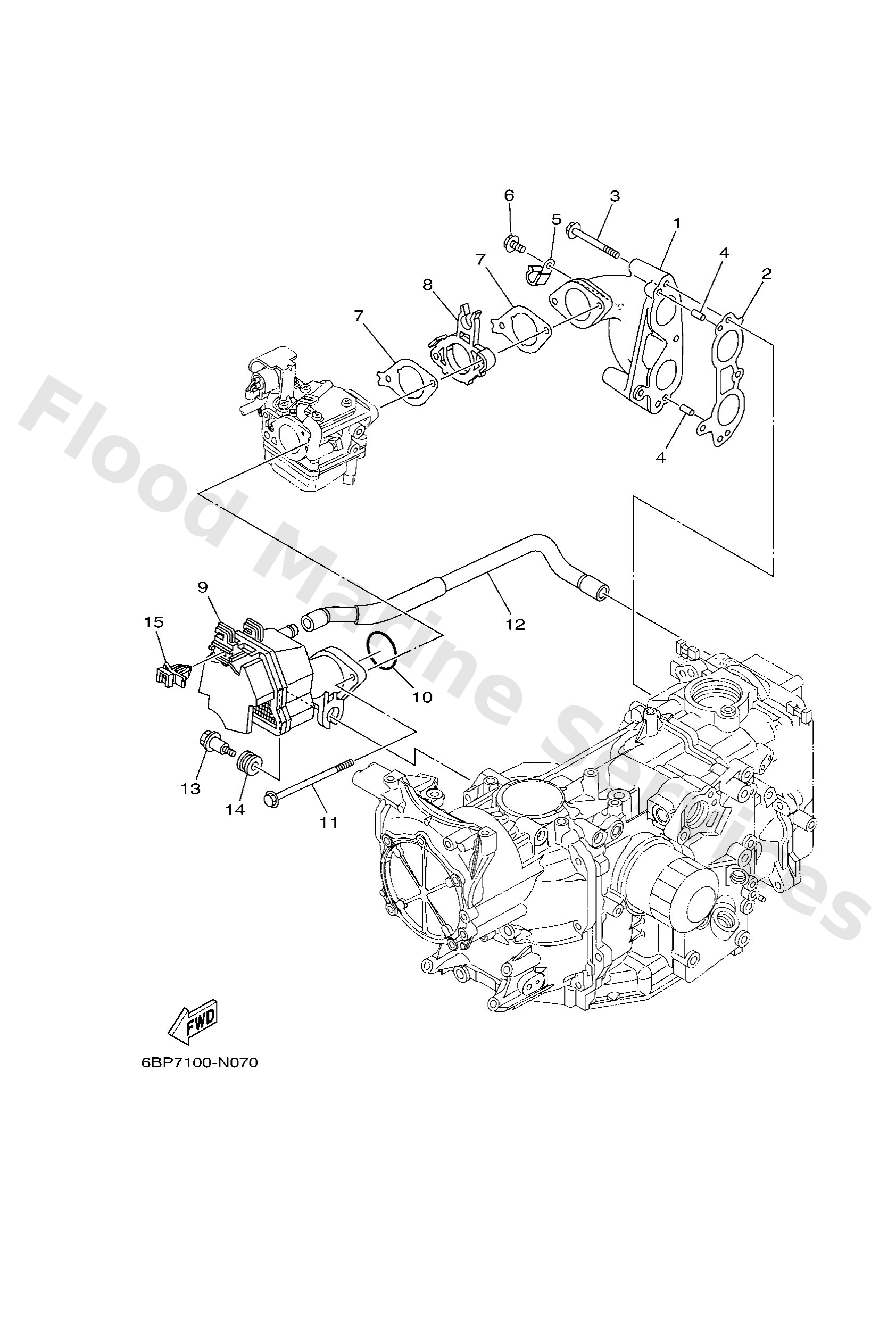

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
6BL136410094
Manifold 1
Loading…

↗
2
6BL1364500
Gasket, manifold 1
Loading…

↗
3
97E9506555
Bolt, hexagon w/w deep recess
Loading…

↗
4
9169050014
Pin, spring (647)
Loading…

↗
5
9046508M83
Clamp
Loading…

↗
6
97E9506512
Bolt, hexagon w/w deep recess
Loading…

↗
7
6BL1364600
Gasket, manifold 2
Loading…

↗
8
6BL1427100
Insulator
Loading…

↗
9
6BL1444000
Silencer assembly, intake
Loading…

↗
10
9321039ME4
O-ring(6h2)
Loading…

↗
11
95D9506100
Bolt, flange deep recess
Loading…

↗
12
6BL1537300
Pipe, breather
Loading…

↗
13
9010906MA1
Bolt
Loading…

↗
14
9048016616
Grommet
Loading…

↗
15
9046409M47
Clamp(65j)
Loading…

↗
